Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | ATLAS COPCO Down The Hole Hammer |
| Hammer Material: | High Carbon Steel | Hammer Type: | PNEUMATIC TOOLS |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Ore Mine |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | down the hole hammer drill rig,5inch down the hole hammer drill rig,DHD350 |
||

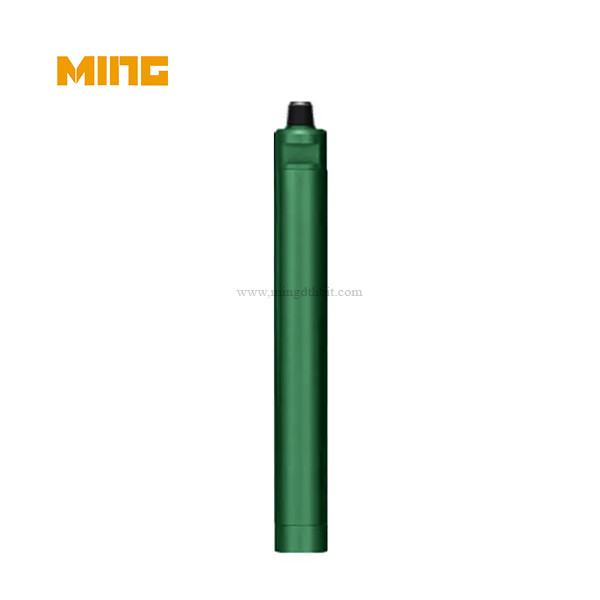

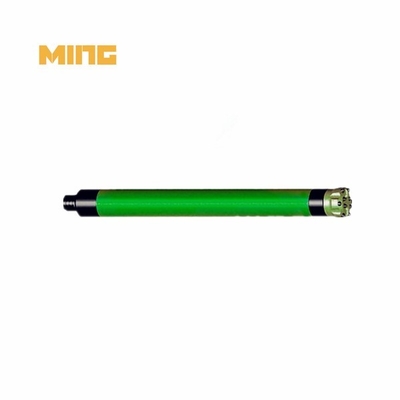

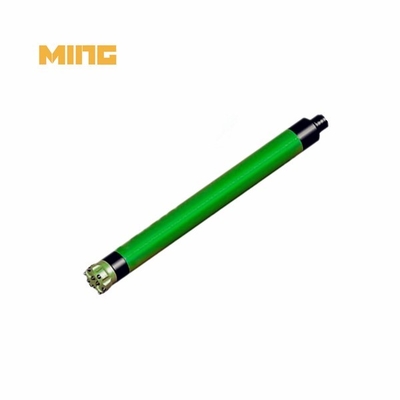

Product name: 5inch high air pressure DTH hammer with DHD350 shank for drilling rig
Product category: Drilling rig accessories
Matched hammer: Hammer DHD350
Connection thread: API 2 3/8 REG
Working pressure(bar): 10~25
Outer diameter(mm): 125
Weight(KGS): 69
Bit diameter recommend(mm): 127~135
High air pressure DTH hammer with DHD350 shank details:
Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.
High air pressure DTH hammer with DHD350 shank technical parameters:
| Model |
OD (mm) |
Hole range (mm) |
Length(mm) | Connection Thread |
Working (Mpa) |
Air Consumption |
Weight (Kg) |
||
| MH35D | 82 | 90~115 | 888 | API2-3/8"REG | 1.0~1.5 | 1.0Mpa-3.8m3/min | 1.5Mpa-7.5m3/min | 25 | |
| MH40D | 99 | 110~135 | 1011 | API2-3/8"REG | 1.2~2.0 | 1.0Mpa-6m3/min | 1.8Mpa-10m3/min | 2.4Mpa-15m3/min | 43.2 |
| MH50D | 125 | 135~155 | 1110 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 1.3-2.3 | 1.0Mpa-7m3/min | 1.8Mpa-14m3/min | 2.4Mpa-19m3/min | 69 |
| MH60D | 142 | 155~203 | 1238 | API3-1/2"REG | 1.5~3.0 | 1.0Mpa-9m3/min | 1.8Mpa-18m3/min | 2.4Mpa-26m3/min | 98 |
| MH80D | 180 | 195~254 | 1359 | API4-1/2"REG | 1.5~3.0 | 1.0Mpa-12m3/min | 1.8Mpa-22m3/min | 2.4Mpa-28m3/min | 175 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What type of drill is best for stone?
Drilling through stone, brick, granite, and even marble is possible, but it takes a tough drill bit made of hard metal to do it. Kingdrilling drill bits are specifically designed to tackle stone and can bore through these hard surfaces with ease.
3. Can you drill through cobblestone?
Cobble is extremely hard and very difficult to cut, making directional drilling difficult. During drilling, cobble pieces move and therefore rock bits cannot penetrate them because of the constant movement; instead of being cut, pieces of cobble roll away and do not stay in place.
