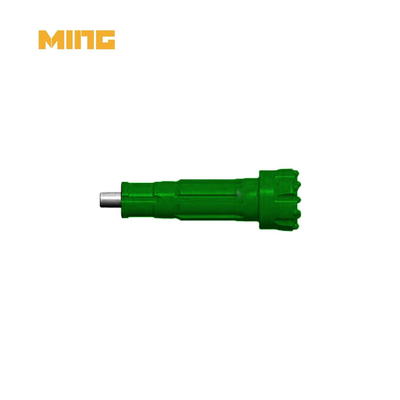

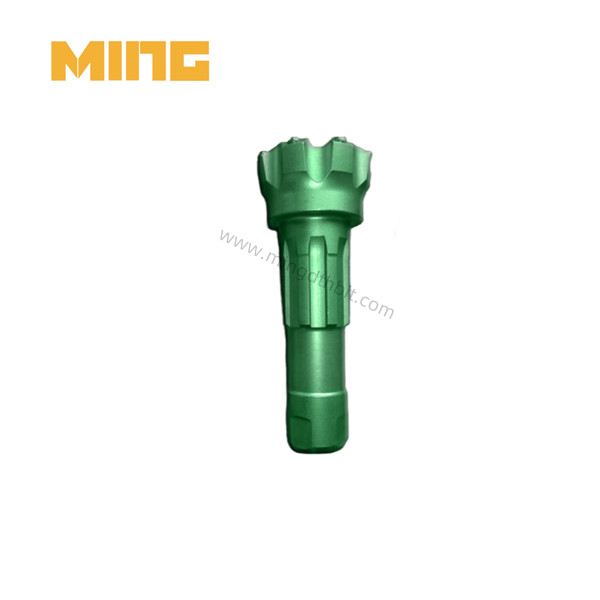

Mining SD6 DTH Drill Bit Directional Boring Bit 203mm ODM

Product name: 203mm dow the hole button bit with SD6 shank for mining exploration drilling
Product category: DTH drill tools
Matched hammer: Hammer QL60
Diameter: 203 mm

KINGDRILLING high air pressure DTH button bit description:

Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.

For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.

This strong supply chain is backed up by Kingdrilling’s dedication to its AIM principle: reliable, implement and responsibility. Using this, we are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.

KINGDRILLING high air pressure DTH button bit with SD6 shank technical parameters:

Drill Bit	Bit Dia.(mm)	Bit Dia (Inch)	Gauge Buttons	Spline Num.	Shank
	152	5 63/64	8×φ16	8	SD6
	165	6 1/5	8×φ18	8	SD6
	190	7 31/64	10×φ18	8	SD6
	203	8	10×φ18	8	SD6

Order guide: Shank+Head diameter+Face design+Button shape

Kingdrilling DTH bit advantage:
1. Available with all major drill bit shank designs
2. Three drill bit face designs: concave, flat, convex
3. Multiple carbide designs and grades for operation in a variety of ground conditions
4. Proprietary heat-treatment process for superior hardness and wear resistance
5. Regional manufacturing for lower lead times.

FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
5. What is DTH Bit?
Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
6. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
7. How does DTH drilling work?
A down-the-hole drill, usually called DTH by most professionals, is basically a jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).
8. What is a hammer bit?
Hammer drills are designed to quickly drill through brittle materials like concrete by combining the rotary action of the drill bit with a hammer action that moves the drill bit in and out of the hole along the bit's axis to provide a pounding action along with the drilling motion of the bit.
