Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit |
| Hammer Material: | High Carbon Steel | Hammer Type: | Down The Hole Hammers |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Deep Hole Drilling Tools |
| Processing Type: | Forging | Usage: | Construction Machine Parts |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | bit dth Hammer,CIR130 bit dth,CIR130 |
||

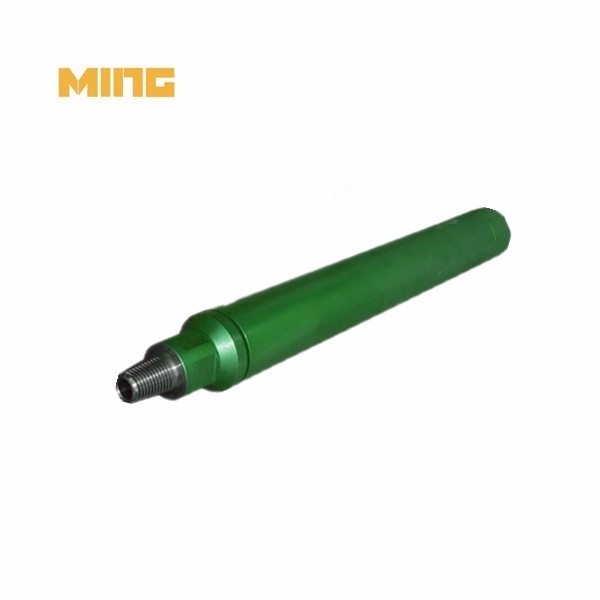

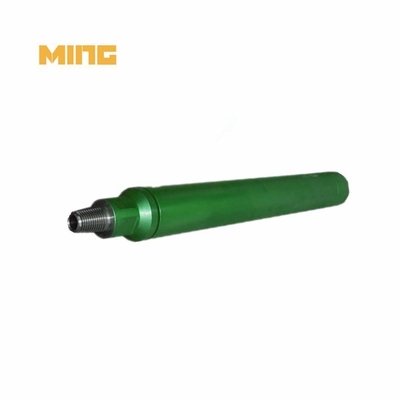

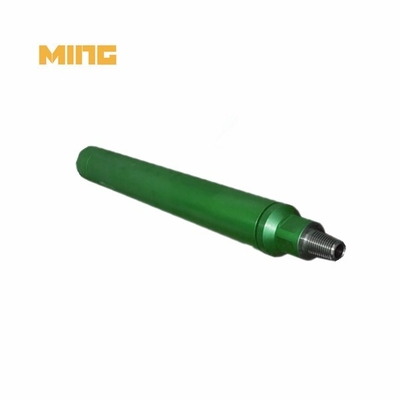

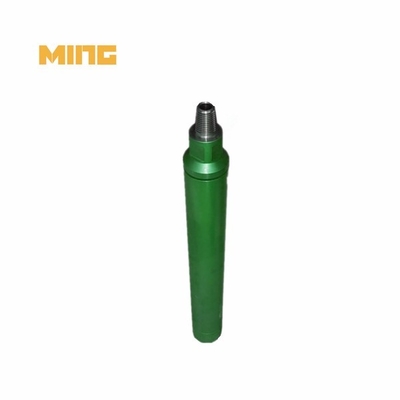

Product name: Low air pressure CIR130 DTH drilling hammer for construction
Product category: Construction tools
Matched hammer: Hammer CIR130
Connection thread: PIN 2 3/8 REG BOX
Working pressure(bar): 6-12
Hole range(mm): 130-175
Outer diameter: 112
Weight(KGS): 46
Low air pressure CIR130 DTH drilling hammer details:
Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.
KINGDRILLING CIR series DTH hammer, a kind of valve-equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.
| Model | OD(mm) | Hole range(mm) | Length(mm) | Connection Thread | Working pressure(Bar) | Air Consumption(CFM) | Weight(KG) |
| MHCIR65 | 61 | 70 | 745 | F42*10PIN | 4~10 | 212~353 | 13 |
| MHCIR70 | 65 | 76 | 750 | F48*10PIN | 4~10 | 212~353 | 13.5 |
| MHCIR90 | 80 | 90~120 | 460 | F48*10PIN | 4~12 | 282~424 | 21 |
| MHCIR110 | 98 | 110~150 | 870 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 33 |
| MHCIR130 | 112 | 130~175 | 890 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 46 |
| MHCIR150 | 136 | 150~200 | 904 | F70*10BOX | 6~12 | 353~565 | 70 |
| MHCIR170 | 156 | 170~250 | 1030 | F100*28PIN | 8~14 | 424~635 | 96 |
| MHCIR200 | 182 | 200~250 | 1058 | F100*28PIN | 8~14 | 565~706 | 130 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
2. How to make sure the quality?
More than 40 Years engineer to make sure the quality, 100% inspection
3. What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
4. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
5.How to choose the suitable Pneumatic DTH hammer?
a. Hole Size:
It is better for you to choose the one which the outside diameter is nearest to the hole diameter. This will reduce the hole collapse, and the hole cleaning is easier.
b. Air Consumption:
You must consider about the consumption of compressed air when you use the Pneumatic DTH hammer. Generally speaking, with the raising of the size of hammer, peak performance requires higher compressed gas consumption and lower pressure. In order to make sure each hammer will be used in the proper consumption of compressed air and pressure, please refer to the attachment.
c. Drill rig Capacity:
The larger bit and hammer will need the drilling rig to provide greater torque and promoting force, but do not exceed the maximum load of the drill. As for the other questions about drill ability, please consult your sales representative
6. What is the Application?
Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
