Product Details:
|
| Certification: | ISO9001 | Application: | Underground Mining Teeth |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit |
| Hammer Material: | High Carbon Steel | Hammer Type: | Safety Hammer |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Deep Hole Drilling Tools,Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Construction Machine Parts |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | Custom low pressure dth hammer,CIR170 low pressure dth hammer,CIR170 |
||

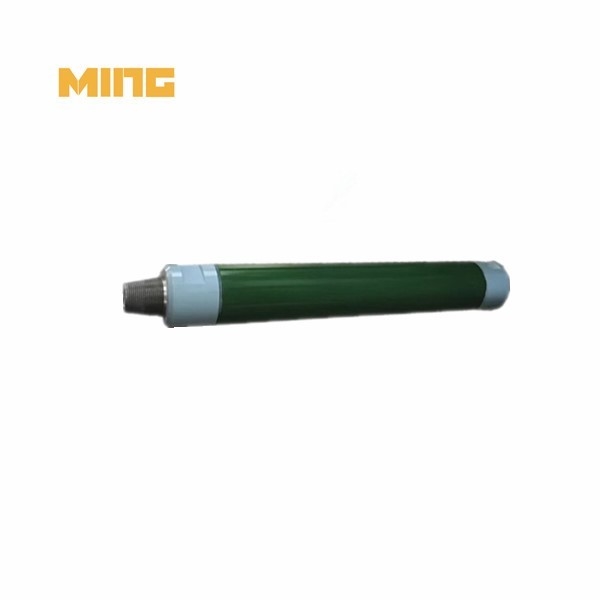

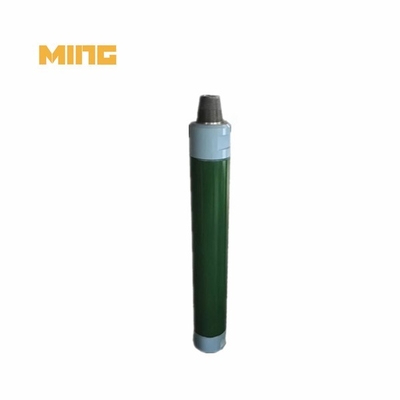

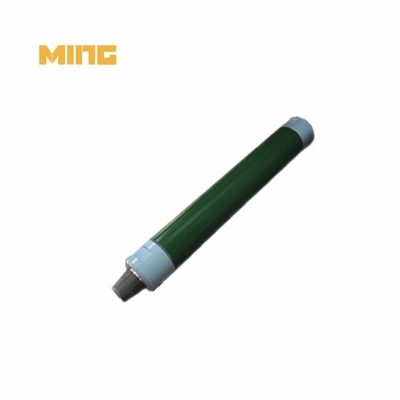

Product name: Low air pressure down the hole hammer CIR170 for water borehole drilling
Matched hammer: water borehole drilling tools
Connection thread: F100*28 PIN
Working pressure(bar):8-14
Hole range(mm): 170-250
Outer diameter: 156
Weight(KGS):96
Low air pressure down the hole hammer details:
KINGDRILLING Diamond Co., Ltd is specialized manufacturer and supplier of Rock Drilling Tools for Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.

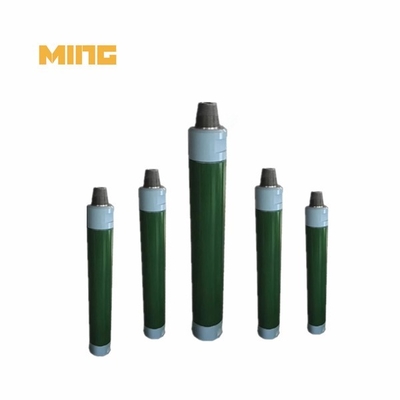

Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", CIR series DTH hammer, a kind of valve-equipped low air pressure hammer with a single piston, a plate valve and a central exhaust structure.
| Model | OD(mm) | Hole range(mm) | Length(mm) | Connection Thread | Working pressure(Bar) | Air Consumption(CFM) | Weight(KG) |
| MHCIR65 | 61 | 70 | 745 | F42*10PIN | 4~10 | 212~353 | 13 |
| MHCIR70 | 65 | 76 | 750 | F48*10PIN | 4~10 | 212~353 | 13.5 |
| MHCIR90 | 80 | 90~120 | 460 | F48*10PIN | 4~12 | 282~424 | 21 |
| MHCIR110 | 98 | 110~150 | 870 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 33 |
| MHCIR130 | 112 | 130~175 | 890 | PIN2-3/8"REG BOX | 6~12 | 282~424 | 46 |
| MHCIR150 | 136 | 150~200 | 904 | F70*10BOX | 6~12 | 353~565 | 70 |
| MHCIR170 | 156 | 170~250 | 1030 | F100*28PIN | 8~14 | 424~635 | 96 |
| MHCIR200 | 182 | 200~250 | 1058 | F100*28PIN | 8~14 | 565~706 | 130 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
3. What is the general delivery time?
15 working days for DTH bits.
20-25 working days for DTH hammer
3-5 working days for ex stock items.
4. How to choose the suitable Pneumatic DTH hammer?
Hole Size:
It is better for you to choose the one which the outside diameter is nearest to the hole diameter. This will reduce the hole collapse, and the hole cleaning is easier.
Air Consumption:
You must consider about the consumption of compressed air when you use the Pneumatic DTH hammer. Generally speaking, with the raising of the size of hammer, peak performance requires higher compressed gas consumption and lower pressure. In order to make sure each hammer will be used in the proper consumption of compressed air and pressure, please refer to the attachment.
Drill rig Capacity:
The larger bit and hammer will need the drilling rig to provide greater torque and promoting force, but do not exceed the maximum load of the drill. As for the other questions about drill ability, please consult your sales representative
5. Is top hammer drilling vs down-the-hole drilling?
The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method's activity is concentrated at the very top of the drill string.
