Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Hammer Material: | High Carbon Steel |
| Hammer Type: | Down The Hole Hammers | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
| Warranty: | 1 Year | Material: | Carbon Steel |
| Type: | Deep Hole Drilling Tools | Processing Type: | Forging |
| Usage: | Construction Machine Parts | Quality: | Top Brand China |
| Air Consumption: | 0.5-2.5Mpa | Oem: | YES |
| Brand: | MING | ||
| High Light: | Bayonet Down The Hole Hammer,Down The Hole Hammer Drill Bits,P110 dth drill bits |
||

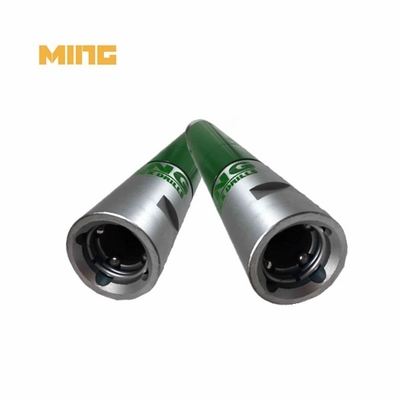

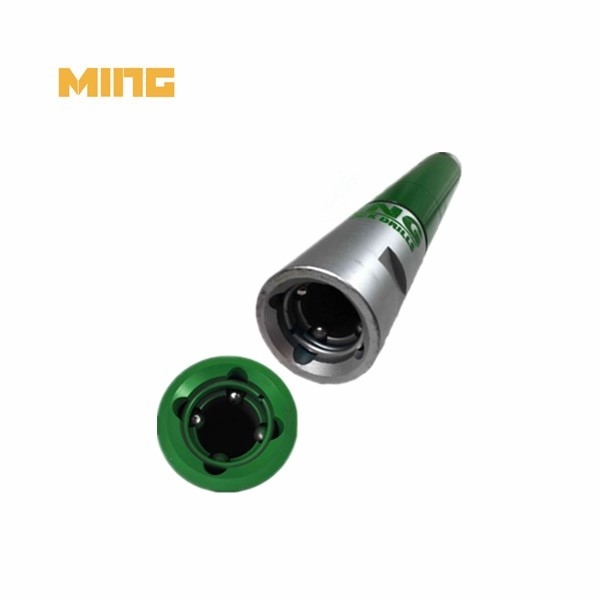

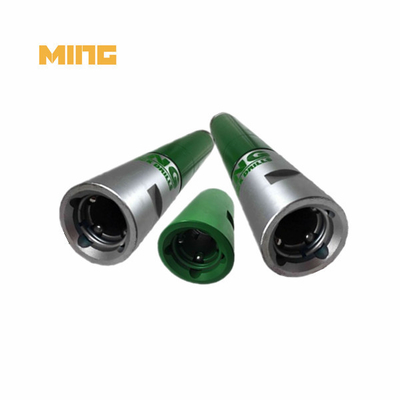

Product name: Bayonet P110 connection DTH hammer for blasting
Product category: Blasting drilling tools
Matched hammer: Hammer P110
Connection thread: Bayonet
Impact power: 2.8
Working pressure(bar): 0.5
Outer diameter: 98
Weight(KGS): 24.3
Bit diameter recommend(mm): 110~140
Bayonet P110 connection DTH hammer details:
Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations. They are popular in Russian, Vietnam, Uzbekistan, east asia and so on.
Bayonet P110 connection DTH hammer details
| Model | OD(mm) | Length(mm) | Impact power horse |
Connection Thread | Working pressure(Bar) | Air consumption(M3/min) | Weight(KG) |
| MH110PB | 98 | 662 | 2.8 | F72*10 BOX | 7~11 | 7~12 | 24.5 |
| MH 130PB | 116 | 681 | 4 | F72*10 BOX | 7~11 | 8~14 | 35.1 |
| MH PS110 | 103 | 670 | 3.2 | F72*10 BOX | 7~11 | 7~12 | 25.6 |
How to order:
Shank Type + Top Sub Thread
What we can do for you:
1. High quality: We are the partners with a lot of big factories in China. We can provide the best quality products to you.
2. Competitive price: Competitive price because of direct factory price.
3. Fast delivery time:usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
4. Best quality control:We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
5. Problems solve ability:This ability comes from rich experiences of drill bits industry and reliable sales..
6. OEM,ODM service:your own request about product will be served well.
7. Best after service:We will go to your place to check and solve the problems if you need.
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What is DTH Bit?
Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
3. What is the hardest rock to drill?
Diamond is the hardest (readily available) naturally occurring substance in the world, and so finds itself an invaluable material in the process of drilling through extremely strong rocks such as granite and basalt.
