Product Details:
|
| Material: | Carbon Steel | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Machine Type: | Drilling Tool | Processing Type: | Forging |
| Product Name: | Dth Hammer | Color: | Gold,Required,Yellow,Red |
| Application: | Construction | Usage: | Hole Drilling |
| Advantage: | Widely Used Hard Rocks And Have Good Penetration | Advantages: | High Performance |
| Brand: | MING | HS: | 843143200 |
| High Light: | Overburden Drilling System DTH Hammer,Russian Spline Overburden Drilling System,Drilling dth hammer bit |
||

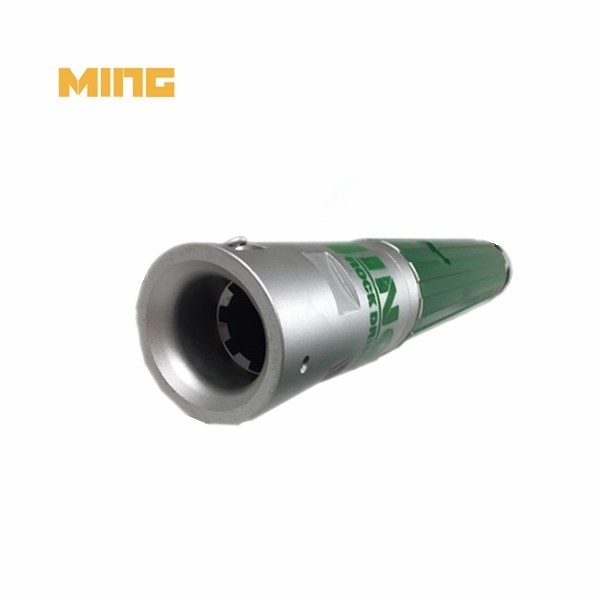

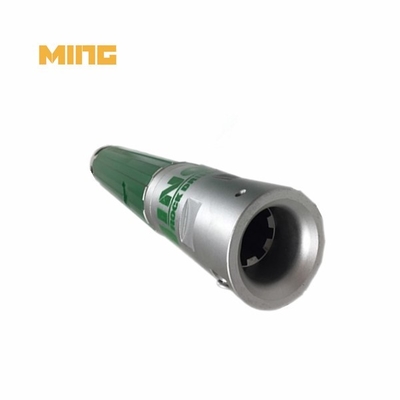

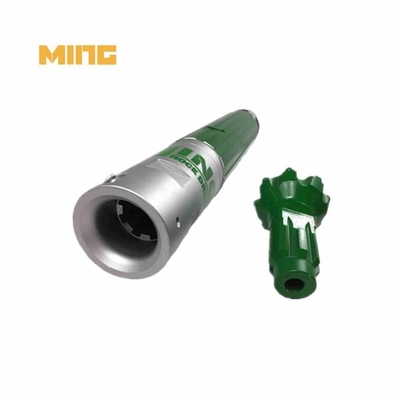

Product name: 3.2P Russian spline KNSH110 DTH hammer for construction
Product category: Construction tools
Matched hammer: Hammer PS110
Connection thread: Russian spline
Impact power: 3.2
Working pressure(bar): 7~11
Outer diameter(mm): 103
Weight(KGS): 25.6
Bit diameter recommend(mm): 110~140
Russian bayonet 130PB shank DTH drilling hammer feature
1. Patented innovation to ensure maximum energy transfer
2. Simplified design for easier servicing and higher reliability
3. high-frequency design for smoother operation
4. Hardened wear sleeve for wear resistance even in abrasive conditions
5. Multi-start threads on backhead and chuck for easy coupling/uncoupling
Russian spline KNSH110 DTH hammer technical parameter:
| Model |
OD (mm) |
Length(mm) |
Impact power horse |
Connection Thread |
Working pressure (Bar) |
Air consumption (M3/min) |
Weight (KG) |
Bit diameter recommend(mm) |

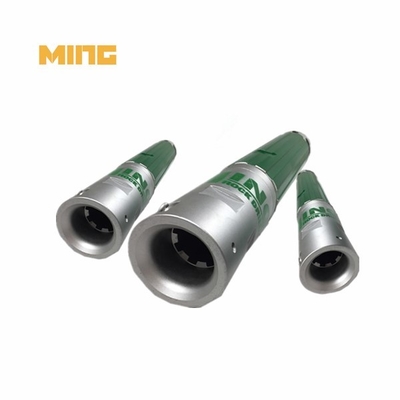

| MH110PB | 98 | 662 | 2.8 | F72*10 BOX | 7~11 | 7~12 | 24.5 | 110-140 |
| MH 130PB | 116 | 681 | 4 | F72*10 BOX | 7~11 | 8~14 | 35.1 | 130-160 |
| MH PS110 | 103 | 670 | 3.2 | F72*10 BOX | 7~11 | 7~12 | 25.6 | 110-140 |
How to order:
Shank Type + Top Sub Thread
FAQ:
1. What is rock drilling?
Rock drilling tools include those used for oil and natural gas exploration, mining, construction, and all other industrial operations that need to excavate or drill through natural rocks, concrete, and masonry.
2. What is percussion drilling method?
Percussion drilling is the manual drilling technique that was used in the first well drilled. In this drilling technique, a hammering bit is attached to a long cable that is then lowered into a wide open hole.
3. How does DTH system work?
DTH is an encrypted transmission that travels to the consumer directly through a satellite. DTH transmission is received directly by the consumer at his end through the small dish antenna. A set-top box, unlike the regular cable connection, decodes the encrypted transmission
4. Can you directional bore through rock?
One of the most significant milestones in the evolution of HDD, however, was the development of the technology. As technology has advanced, midsize drilling equipment now has the capability of effectively drilling and steering in rock.
