Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Low Pressure Dth Hammers |
| Hammer Material: | #45 Carbon Steel | After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available |
| Warranty: | 1 Year | Material: | Carbon Steel |
| Type: | Down The Hole Hammers /DTH Hammers For Sale | Processing Type: | Forging |
| Usage: | Bored Pile | Quality: | Top Brand China |
| Air Consumption: | 0.5-2.5Mpa | Oem: | YES |
| High Light: | 4.0P Down The Hole Hammer,KNSH130 Down The Hole Hammer,KNSH130 dth bits |
||

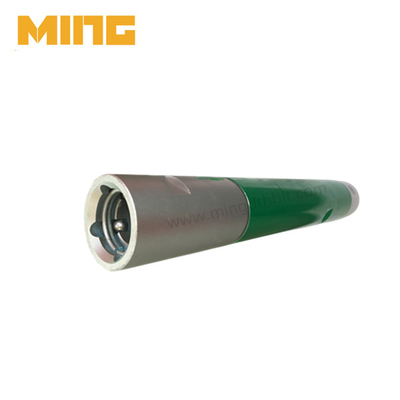

Product name: 4.0P Russian bayonet KNSH130 DTH hammer for construction
Product category: drilling rig accessories
Matched hammer: Hammer
Connection thread: F72*10 PIN
Working pressure(bar):7-11
Outer diameter: 116
Weight(KGS): 35.1
4.0P Russian bayonet KNSH130 DTH hammer details:
Kingdrilling drilling solutions are designed to deliver industry-leading returns in sample quality and drilling productivity in the exploration for gold, silver, platinum, copper, nickel, iron ore, and other base metals.
backed up by on-site support and consultation from our expert regional teams, kingdrilling systems have earned their reputation as the Driller’s choice.
Russian bayonet KNSH130 DTH hammer technical parameters:
| Model |
OD (mm) |
Length(mm) |
Impact power horse |
Connection Thread |
Working pressure (Bar) |
Air consumption (M3/min) |
Weight (KG) |
Bit diameter recommend(mm) |
| MH110PB | 98 | 662 | 2.8 | F72*10 BOX | 7~11 | 7~12 | 24.5 | 110-140 |
| MH 130PB | 116 | 681 | 4 | F72*10 BOX | 7~11 | 8~14 | 35.1 | 130-160 |
| MH PS110 | 103 | 670 | 3.2 | F72*10 BOX | 7~11 | 7~12 | 25.6 | 110-140 |
How to order:
Shank Type + Top Sub Thread
Kingdrilling DTH hammer features
1. Patented innovation to ensure energy transfer
2. Simplified design for easier servicing and higher reliability
3. Customer habits design for clients' smoother operation
4. Factory direct sale
5.Factory engineers team support
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. How does DTH drilling work?
A down-the-hole drill, usually called DTH by most professionals, is basically a jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).
3. How does DTH system work?
DTH is an encrypted transmission that travels to the consumer directly through a satellite. DTH transmission is received directly by the consumer at his end through the small dish antenna. A set-top box, unlike the regular cable connection, decodes the encrypted transmission
