Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit |
| Hammer Material: | High Carbon Steel | Hammer Type: | DTH HAMMER |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Quarry |
| Quality: | Top Brand China,98% Quality Similarity World Top Class Brands | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | Business Type: | Manufacturer, Exporter |
| HS: | 84314320 | ||
| High Light: | Rock dth hammer bits,2.8P dth hammer bits,2.8P down hole hammer drill bits |
||

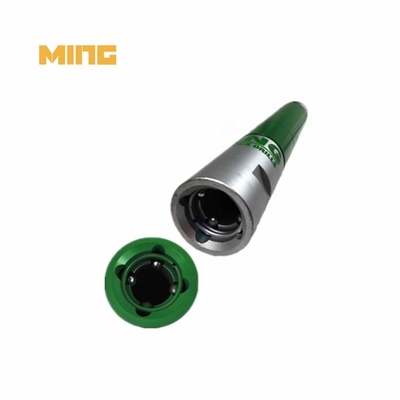

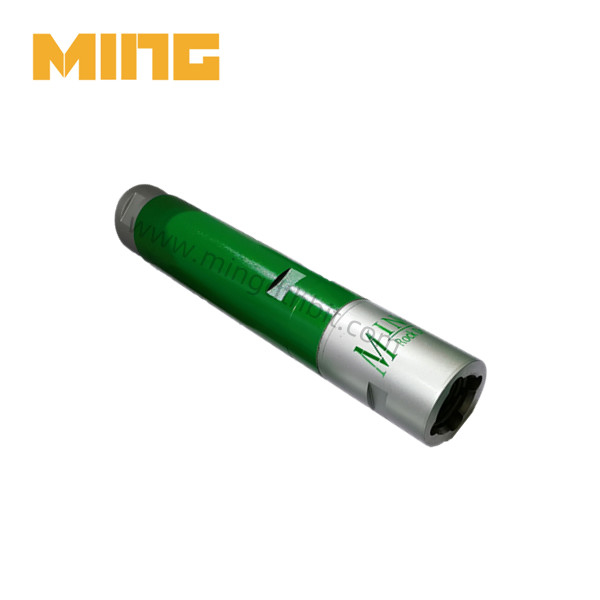

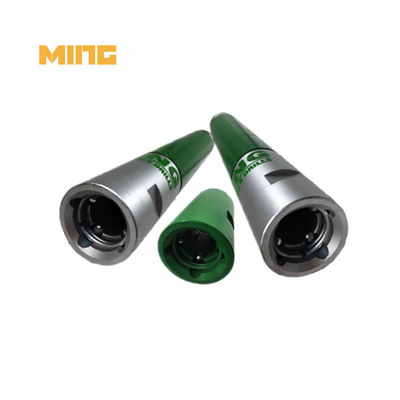

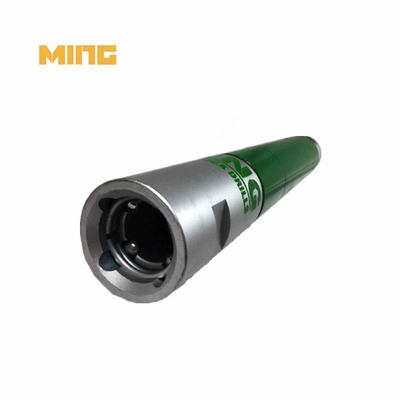

Product name: 2.8P Russian bayonet DTH rock drill hammer for mining and quarrying
Product category: Quarrying drilling tools
Matched hammer: Hammer 110PB
Connection thread: Bayonet
Impact power: 2.8
Working pressure(bar): 7~11
Outer diameter(mm): 98
Weight(KGS): 24.5
Bit diameter recommend(mm): 110~140
Russian bayonet 130PB shank DTH drilling hammer instruction:
3” – 33” DTH Hammers for mining, quarrying, exploration, water-well, geothermal, construction and geotechnical
drilling projects.
Every KINGDRDILLING DTH hammer is produced in our own factories equipped with advanced production facility. All components are precision-manufactured using high-quality raw materials and undergo proprietary heat-treatment processes at our own facilities to guarantee durability and quality.
Russian bayonet DTH rock drill hammer technical parameter:
| Model |
OD (mm) |
Length(mm) |
Impact power horse |
Connection Thread |
Working pressure (Bar) |
Air consumption (M3/min) |
Weight (KG) |
Bit diameter recommend(mm) |
| MH110PB | 98 | 662 | 2.8 | F72*10 BOX | 7~11 | 7~12 | 24.5 | 110-140 |
| MH 130PB | 116 | 681 | 4 | F72*10 BOX | 7~11 | 8~14 | 35.1 | 130-160 |
| MH PS110 | 103 | 670 | 3.2 | F72*10 BOX | 7~11 | 7~12 | 25.6 | 110-140 |
How to order:
Shank Type + Top Sub Thread
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What is hole hammer?
Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.
3. Is top hammer drilling vs down-the-hole drilling?
The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method's activity is concentrated at the very top of the drill string.
