Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit |
| Hammer Material: | High Carbon Steel | Hammer Type: | DTH HAMMER |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Quarry |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | 3inch Down The Hole Hammer,DHD3.5 Down The Hole Hammer,DHD3.5 |
||

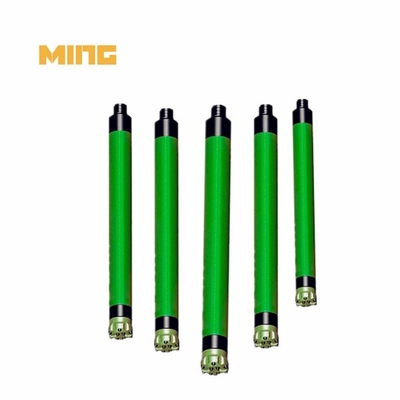

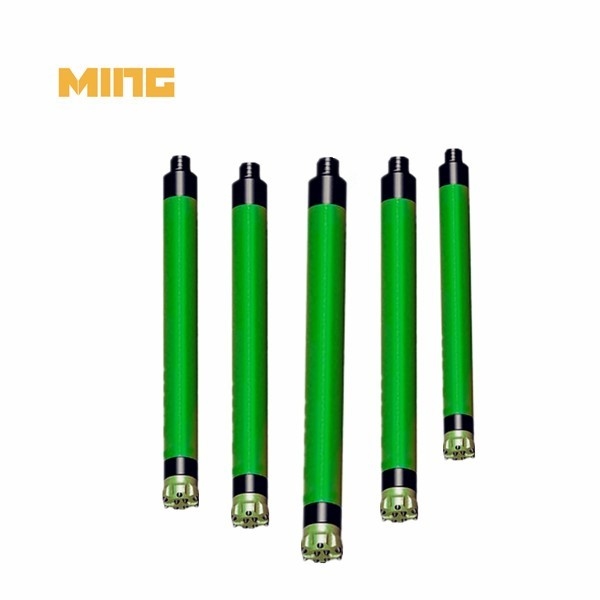

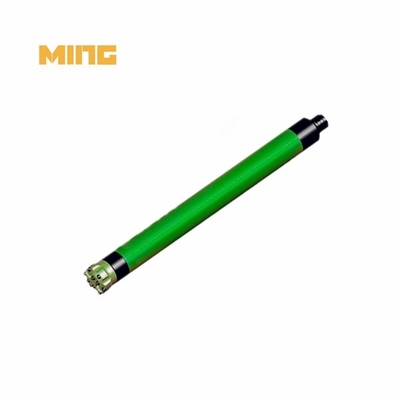

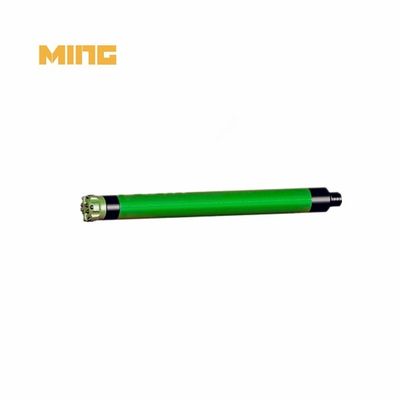

Product name: 3inch high air pressure DTH hammer with DHD3.5 shank
Product category: Drilling rig accessories
Matched hammer: Hammer DHD3.5
Connection thread: API 2 3/8 REG
Working pressure(bar): 7~25
Outer diameter(mm): 82
Weight(KGS): 25
Bit diameter recommend(mm): 90~105
High air pressure DTH hammer with DHD3.5 shank details:
Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.
High air pressure DTH hammer with DHD3.5 shank technical parameters:
|
Model |
OD (mm) |
Hole range (mm) |
Length(mm) |
Connection |
Working (Mpa) |
Air Consumption |
Weight (Kg) |
||
|
MH35D |
82 |
90~115 |
888 |
API2-3/8"REG |
1.0~1.5 |
1.0Mpa-3.8m3/min |
1.5Mpa-7.5m3/min |
25 |
|
|
MH40D |
99 |
110~135 |
1011 |
API2-3/8"REG |
1.2~2.0 |
1.0Mpa-6m3/min |
1.8Mpa-10m3/min |
2.4Mpa-15m3/min |
43.2 |
|
MH50D |
125 |
135~155 |
1110 |
API2-3/8"REG/API2-7/8"IF/API3-1/2"REG |
1.3-2.3 |
1.0Mpa-7m3/min |
1.8Mpa-14m3/min |
2.4Mpa-19m3/min |
69 |
|
MH60D |
142 |
155~203 |
1238 |
API3-1/2"REG |
1.5~3.0 |
1.0Mpa-9m3/min |
1.8Mpa-18m3/min |
2.4Mpa-26m3/min |
98 |
|
MH80D |
180 |
195~254 |
1359 |
API4-1/2"REG |
1.5~3.0 |
1.0Mpa-12m3/min |
1.8Mpa-22m3/min |
2.4Mpa-28m3/min |
175 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
3. How to make sure the quality?
More than 40 Years engineer to make sure the quality, 100% inspection
4. Competitive price:
A:KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
5. What is the Application?
Mining, Quarrying, Tunneling, Construction, Geological Exploration, Water-well Drilling, Oilfield & Gas Industries.
