Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Propower 8 Inch Down The Hole Hammer For India |
| Hammer Material: | High Carbon Steel | Hammer Type: | Down The Hole Hammers |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Quarry |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | ||
| High Light: | COP44 Down The Hole Hammer,4inch Down The Hole Hammer,COP44 |
||

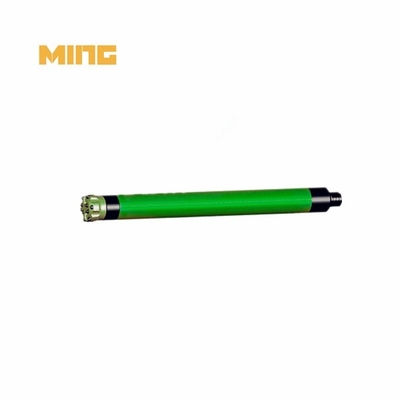

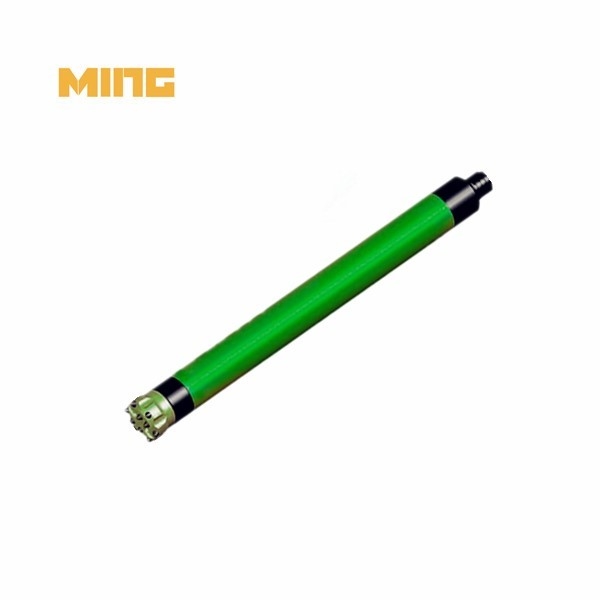

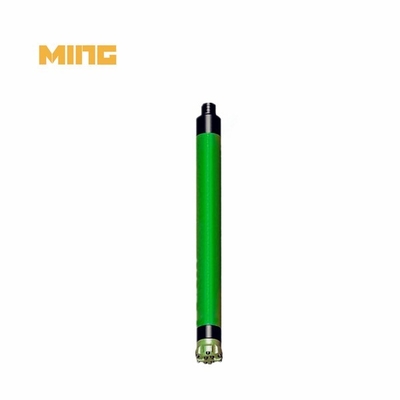

Product name: 4inch high air pressure DTH hammer with COP44 shank for construction
Product category: Drilling rig accessories
Matched hammer: Hammer COP44
Connection thread: API 2 3/8 REG
Working pressure(bar): 10~25
Outer diameter(mm): 99
Weight(KGS): 40.7
Bit diameter recommend(mm): 115~130
High air pressure DTH hammer with COP44 shank details:

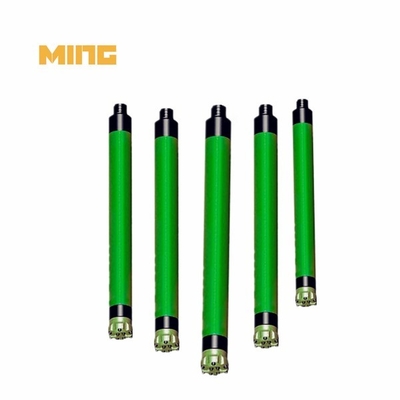

Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.
High air pressure DTH hammer with COP44 shank technical parameters:
| Model |
OD (mm) |
Hole range (mm) |
Length(mm) | Connection Thread |
Working (Mpa) |
Air Consumption |
Weight (Kg) |
||
| MH35D | 82 | 90~115 | 888 | API2-3/8"REG | 1.0~1.5 | 1.0Mpa-3.8m3/min | 1.5Mpa-7.5m3/min | 25 | |
| MH40D | 99 | 110~135 | 1011 | API2-3/8"REG | 1.2~2.0 | 1.0Mpa-6m3/min | 1.8Mpa-10m3/min | 2.4Mpa-15m3/min | 43.2 |
| MH50D | 125 | 135~155 | 1110 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 1.3-2.3 | 1.0Mpa-7m3/min | 1.8Mpa-14m3/min | 2.4Mpa-19m3/min | 69 |
| MH60D | 142 | 155~203 | 1238 | API3-1/2"REG | 1.5~3.0 | 1.0Mpa-9m3/min | 1.8Mpa-18m3/min | 2.4Mpa-26m3/min | 98 |
| MH80D | 180 | 195~254 | 1359 | API4-1/2"REG | 1.5~3.0 | 1.0Mpa-12m3/min | 1.8Mpa-22m3/min | 2.4Mpa-28m3/min | 175 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. What is hole hammer?
Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.
2. Is top hammer drilling vs down-the-hole drilling?
The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method's activity is concentrated at the very top of the drill string.
3. What is a top hammer used for?
Top hammer drills are primarily used in mining, construction and quarrying of rock material. Top hammer drilling, combined with the “drill and blast” method, makes the whole excavation process extremely efficient.
