Product Details:
|
| Material: | High Carbon Steel,Tungsten Carbide,steel | Use: | Metal Drilling,rock Drilling |
|---|---|---|---|
| Product Name: | Ingersoll-Rand Shank Adapters YH65 YH80 YH65RP YH70RP YH75RP YH80RP | Application: | Drilling Holes |
| Shank: | Straight Shank | Color: | Red/Blue/Black/golden,according To Customer's Requirement |
| Name: | Shank Adapter | Certification: | ISO9001 |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | 525mm Shank Adapter, 525mm Drill Pipe | ||

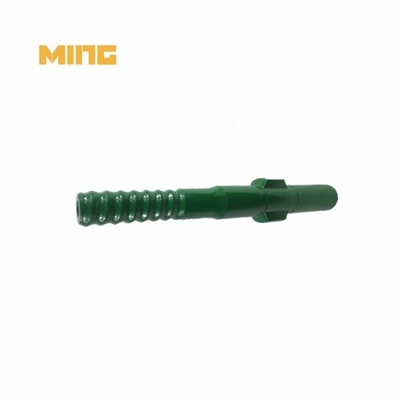

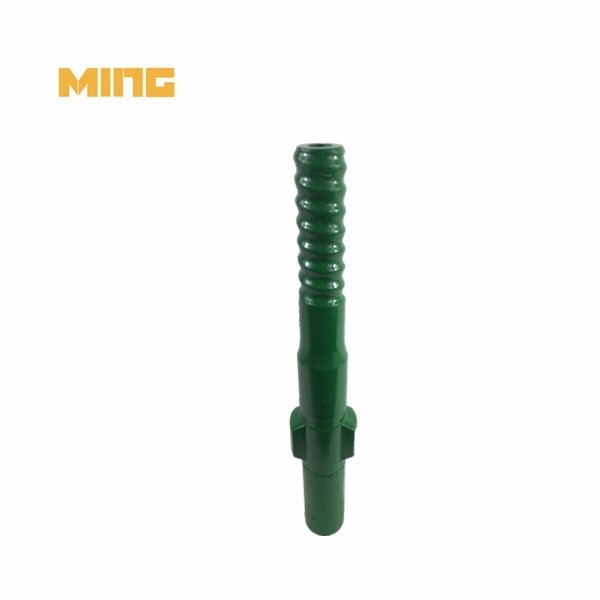

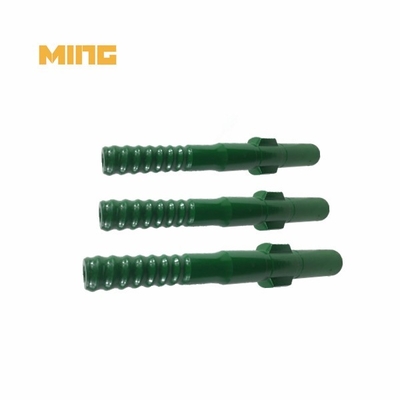

Product name: Atlas Copco COP1550 T38 525mm Shank Adapter For Borehole Drilling Machine
Product category: Shank adapter
Matched: Atlas Copco COP1440, COP1550, COP1838
Thread: T38
Length: 525MM
KINGDRILLING shank adapter description:
The high toughness and anti-fatigue strength of KINGDRILLING shank adapters are guaranteed to meet the most demanding drilling circumstances since they are made of premium steel, are carburized, and are CNC machined.
The shank adapter is used to provide the drill string with rotation torque, feed force, impact energy, and flushing media.
KINGDRILLING shank adapter features:
- Improves working efficiency by minimizing downtime and increasing productivity.
- Long service life ensures durability and reduces replacement costs.
- Low air and oil consumption contributes to cost savings and environmental protection.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Suitable for step blasting, underground mining, roadway engineering.
2. The drill pipe can transfer torque, feed force, impact energy and washing media to the drill string
3. Special alloy steel, and carburized hardening treatment, to ensure the high impact of modern rock drill.
4. Various drill pipe can be produced according to the sample and drill machine type.
FAQ:
1. How about plain packaging?
A: If there are no special packing requirements, we'll take it as normal packing. Put small cartons first, and then enlarge the cartons to ensure that the goods are complete.
2. Can I get quality products?
A. Yes. The mature production process ensures that the product quality meets the international requirements.
3. How to control the quality?
A: We have our own experienced QC team who will strictly check and test each order before shipping.
4. What is the use of the top hammer?
Top hammer RIGS are mainly used for rock material mining, construction and quarrying. The combination of top hammer drilling and "drill and blow" method makes the entire excavation process extremely efficient.
5. What is a tophammer?
In top hammer drilling, the activity is concentrated on the top of the drill column above the hole, and the hammer transmits a periodic shock wave to the drill bit by exerting an impact force on the drill pipe or drill pipe (in the case of the drill, the hammer is placed under the drill bit).
6. How does downhole drilling work?
A drilling rig, commonly referred to by most professionals as a drilling rig, is basically a jackhammer that screws into the bottom of the drill string. The rapid hammering action breaks the hard rock into small pieces and dust, which are expelled by fluids (air, water, or drilling mud).
