Product Details:
|
| Material: | High Carbon Steel,Tungsten Carbide,steel | Use: | Metal Drilling, Rock Drilling |
|---|---|---|---|
| Product Name: | Shank Adapter | Shank: | Straight Shank |
| Color: | Red/Blue/Black/golden,according To Customer's Requirement | Certification: | ISO9001 |
| Process: | Forging,Fully Ground | Quality: | Stable And Reliable,best Quality |
| Machine Type: | Drilling Tool | ||
| High Light: | T38 Thread Shank Adapter,COP1838 Shank Adapter,Coal Mining Drilling Shank Adapter |
||

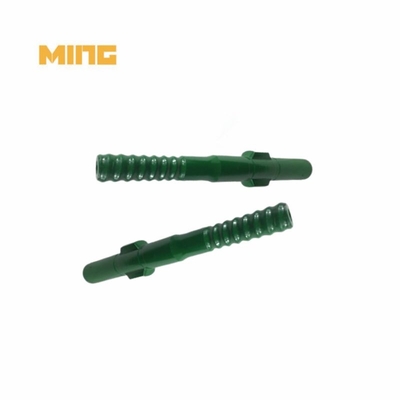

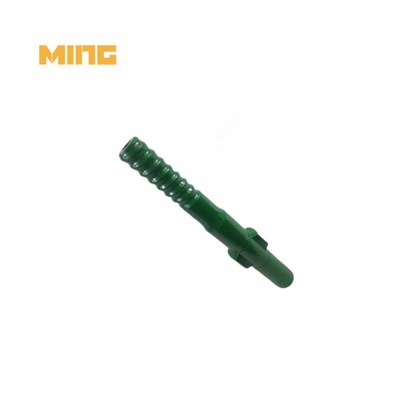

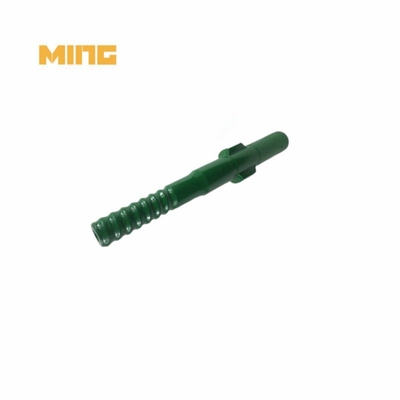

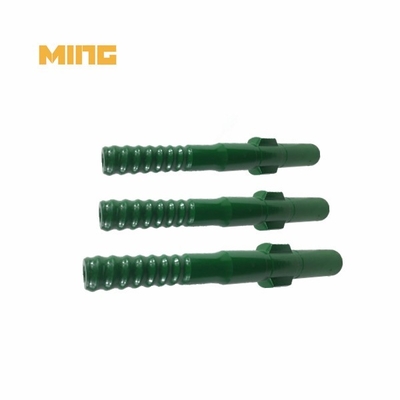

Product name: T38 Thread 455MM Atlas Copco COP1638 COP1838 Shank Adapter For Coal Mining Drilling
Product category: Shank adapter
Matched: Atlas Copco COP 1638, COP 1838
Thread: T38
Length: 455MM
KINGDRILLING shank adapter description:
KINGDRILLING shank adapters are carburized, CNC machined, and composed of quality steel, ensuring excellent toughness and anti-fatigue strength for the most demanding drilling circumstances.
The shank adapter transmits rotation torque, feed force, impact energy, and flushing medium to the drill string.
KINGDRILLING shank adapter features:
1. High-quality drilling with our DTH hammers ensures accurate and efficient drilling operations.
2. Experience fast drive speeds and high work efficiency to increase site productivity.
3. Benefit from the long service life of our DTH hammers, providing durable reliability to support long periods of use.
4. Enjoy higher impact frequencies while reducing energy consumption, saving costs and maintaining superior performance.
5. Our DTH hammers are suitable for a variety of drilling applications and are a versatile tool for industry professionals.
| Item | Thread | Length | Diameter | Weight | Flushing Tube |
| mm | mm | kg | mm | ||
| Atlas Copco COP 1440, COP 1550, COP 1838 Bench Drilling |
R32 (1 1/4") | 525 | 52 | 5.7 | - |
| T38 (1 1/2") | 525 | 52 | 5.9 | - | |
| T45 (1 3/4") | 525 | 52 | 6.1 | - | |
| T51 (2") | 525 | 52 | 6.5 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Drifting |
R32 (1 1/4") | 435 | 38 | 3.6 | - |
| R38 (1 1/2") | 435 | 38 | 3.9 | - | |
| T38 (1 1/2") | 435 | 38 | 3.8 | - | |
| Atlas Copco COP 1440, COP1838 Bolting - SDA |
R32 (1 1/4") | 640 | 52 | 7.5 | - |
| Atlas Copco COP 1440, COP 1838 Bolting- SDA, IRIA |
R32 (1 1/4") | 640 | 52 | 9.1 | - |
| R38 (1 1/2") | 640 | 52 | 8.9 | - | |
| Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238 Bench Drilling |
R32 (1 1/4") | 585 | 38 | 4.2 | - |
| R38 (1 1/2") | 525 | 38 | 4.3 | - | |
| T38 (1 1/2") | 525 | 38 | 4.3 | - | |
| Atlas Copco COP 1440, COP1550, COP 1638, COP 1838 Bolting, Drifting |
T38 (1 1/2") | 435 | 38 | 3.9 | - |
| Atlas Copco COP 1638, COP 1838AW Drifting |
R38 (1 1/2") | 455 | 38 | 4.1 | - |
| T38 (1 1/2") | 455 | 38 | 4.1 | - | |
| Atlas Copco COP 1638, COP 1838AW Longhole Drilling |
R32 (1 1/4") | 525 | 38 | 4.3 | - |
| T38 (1 1/2") | 525 | 38 | 4.5 | - |
KINGDRILLING shank adapter application:
1. Be used for bench blasting, underground mining, and tunneling operations.
2. The Kingdrilling shank adapter effectively transfers torque, feed force, impact energy, and flushing medium to the drill string.
3. Specially selected alloy steel, which is additionally carburized, ensures the strong impact power of current rock drills.
4. Various shanks can be created based on the samples and model of the rock drill.
FAQ:
1. How do I place a product order?
A detailed item description or the model number should be included with your question.
2. How can you make sure the product is precisely what you want?
A: If at all feasible, kindly include a reference image to help clear up any confusion, or provide links to our website for additional information.
3. How can quality be managed?
A rigorous inspection and testing process will be performed on each order prior to shipment by our in-house, highly skilled quality control team.
4. The shipping method.
Example order: We recommend courier express delivery via air or train, such as DHL, UPS, or FEDEX.
Bulk order: We recommend shipping by sea or air.
5. Following the Services.
1. Our sales staff will respond to your inquiry in a day (excluding holidays).
