Product Details:
|
| Type: | DTH Hammer,drilling Hammer | Machine Type: | Drilling Tool |
|---|---|---|---|
| Use: | DTH Drilling | Processing Type: | Forging |
| Material: | Carbon Steel,High Manganese Steel | Application: | Rock Drilling |
| Color: | Green,Gold,Red,blue Or Customized | Advantage: | Widely Used Hard Rocks And Have Good Penetration |
| Product Name: | DTH Hammers Without Foot Valve | Size: | 3" 3.5" 4" 5" 6" 8" 10" 12" |
| Usage: | Hole Drilling | Diameter: | 99mm |
| Weight: | 40 Kgs | Connect Thread: | API 2 3/8" API 3 1/2" API 4 1/2" API 6 5/8" REG |
| Length: | 1012mm | Air Pressure: | High Pressure 1.0-2.5 Mpa |
| Hole Range: | 110-135mm | Hs Code: | 84314300 |
| High Light: | DHD340 Pneumatic DTH Hammer,dhd Pneumatic DTH Hammer,Pneumatic dhd hammer |
||

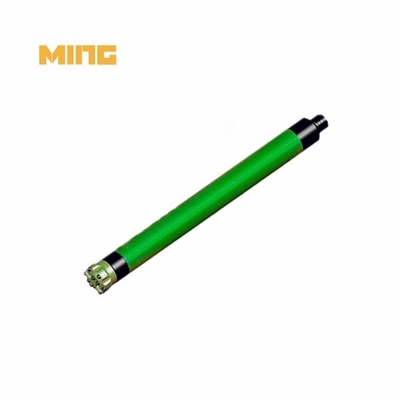

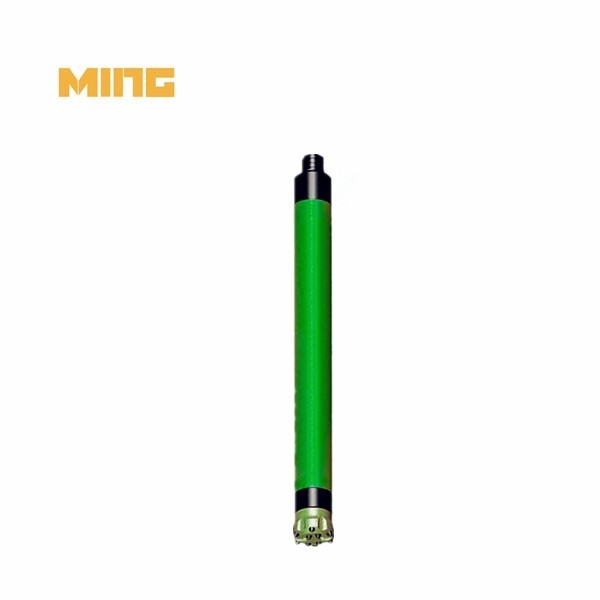

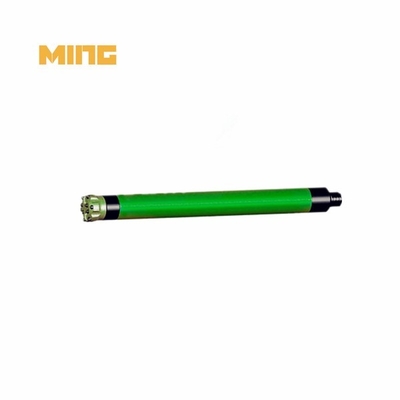

Factory Hot Sale High Air Pressure MH40D Shank Hammer
KINGDRILLING DTH hammer products offers a wide range of quality, versatile DTH hammers to interchangeable, or replace a number of leading industry manufacturers. Hammers are available for down hole and blast hole, water well, gas, mining applications and use in nearly all ground conditions. Most DTH hammers are designed for use with the industry's most common rock drill bits shank types such as DHD, QL, Cop, Mission, SD, Numa and so on.

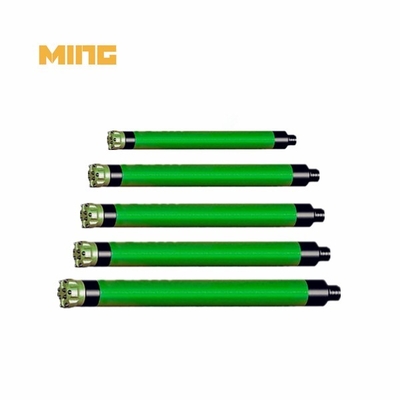

Factory Hot Sale High Air Pressure DHD Shank Hammer
| Model | Spline | OD (mm) |
Hole range (mm) |
Length (mm) |
Connection Thread |
Working pressure (Bar) |
Air Consumption | Weight (Kg) |
||
| DHD SHANK HAMMER | ||||||||||
| MH35D | DHD3.5 | 82 | 90~115 | 888 | API2-3/8"REG | 10~15 | 10BAR/145PSI-134CFM | 15BAR/217.5PSI-265CFM | 25 | |
| MH40D | DHD340/COP44 | 99 | 110~135 | 1011 | API2-3/8"REG | 12~20 | 10BAR/145PSI-212CFM | 18BAR/261PSI-353CFM | 24BAR/348PSI-530CFM | 43.2 |
| MH50D | DHD350/COP54 | 125 | 135~155 | 1110 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 13-23 | 10BAR/145PSI-247CFM | 18BAR/261PSI-494CFM | 24BAR/348PSI-671CFM | 69 |
| MH60D | DHD360/COP64 | 142 | 155~203 | 1238 | API3-1/2"REG | 15~30 | 10BAR/145PSI-318CFM | 18BAR/261PSI-635CFM | 24BAR/348PSI-918CFM | 98 |
| MH80D | DHD380/COP84 | 180 | 195~254 | 1359 | API4-1/2"REG | 15~30 | 10BAR/145PSI-424CFM | 18BAR/261PSI-777CFM | 24BAR/348PSI-988CFM | 175 |
What we can do for you:
Our Service
1.Pre-sale service:
If demand, assist clients to get rich and generous returns on their investments.Select DTH tools model.Design and manufacture down the hole products according to client's requirement.
2.Services during the sale:
Assist clients to draft solving plans.
Pre-check and accept Rock drill products ahead of delivery .
3.After-sale services:
Our sales team will response for your question within 24 hours (Holidays Excluded)
Technical Support will be available in any time.
Free replacement can be provided once the failure confirmed caused by our product quality.
Product Application:
Transport:
Package and Delivery:
Packed by Carton or Wooden cases.
Delivery:
