Product Details:
|
| Certification: | ISO9001 | Material: | Carbide,Carbon Steel,High Manganese Steel |
|---|---|---|---|
| Machine Type: | Drilling Tool | Processing Type: | Forging |
| Use: | Well Drilling,Rock Drilling | Type: | Drill Bit,Drill Pipe |
| Application: | Rock Drilling,Water Well Drilling And Rock Drilling | Color: | Golden,Request,Red,blue |
| Product Name: | Rock Drilling Dth Bits,Eccentric Drill Bits | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Usage: | Hole Drilling,well Drilling,grouting Hole | Name: | Eccentric Overburden Drilling System |
| Packing: | Wooden Box | Formation: | Medium,Hard Rock Formations,from Soft Soil To Hard Rock Granite,soft |
| Quality: | Excellent | Size: | 3 3/4 "(95.3mm)~26"(660.4mm) |
| Standard: | ISO-9001 | HS: | 82071990 |
| High Light: | Under Reaming Casing Drilling Bit,MRING610 Casing Drilling Bit,Under Reaming odex drilling system |
||

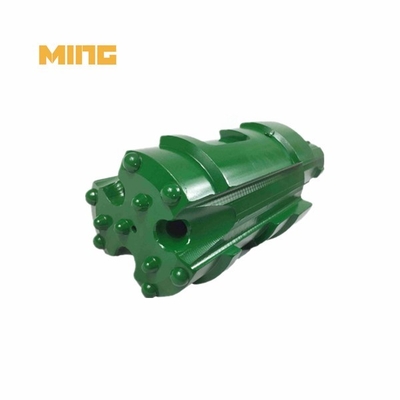

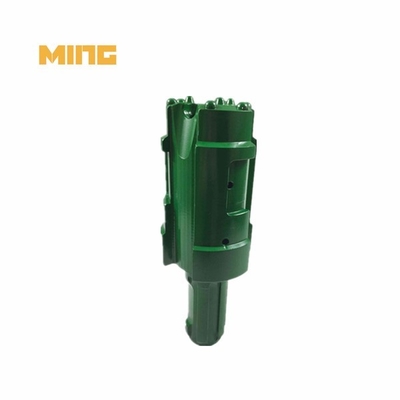

RING wing bit casing drilling system by DTH hammer
Product details:
Rock drilling tools factory KINGDRILLING professionally produce Ring wing bit concentric drilling systems by down the hole hammer which are designed to drill and case a hole simultaneously through unstable ground conditions.

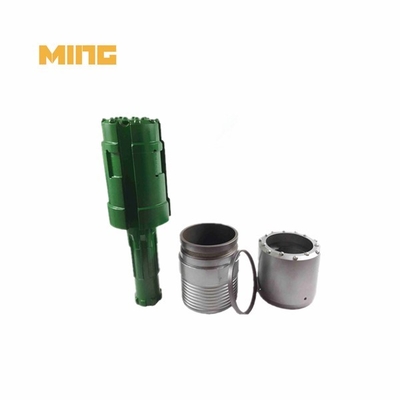

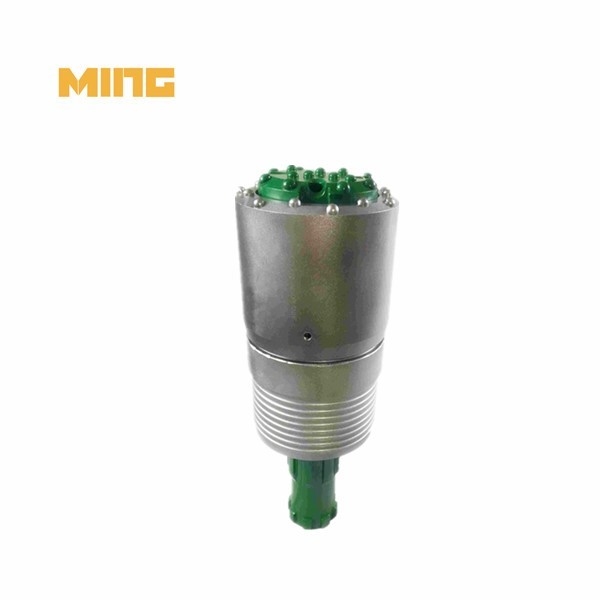

A driver bit and a ring are assembled to a complete RING system bit which is suitable for 114-1067mm diameter casing tube.
Product features:
1. Hardening treatment of the surface:with longer operating life and excellent anti-wear properties
2. Simple structure: greatly minimize the chances of structural failure, convenient operation
3. superior performance:take care of both the drilling wear life and
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to Order?
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +Casings and Casing Shoes connection (if by threads, threads standard must be offered)
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.
4. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
5. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.
6.What is the materials?
Steel is TIMKEN, Alloy is from T6 from Element Six.
Product Application:
Transport:
Package and Delivery:
Packed by Carton or Wooden cases.
