Product Details:
|
| Use: | Ore Mining,rock Drilling | Material: | Tungsten Carbide,Carbon Steel |
|---|---|---|---|
| Type: | Rock Drill | Color: | Golden,Customized,Black,Red |
| Size: | 32mm | Machine Type: | Drilling Tool |
| Application: | Quarry,Rock Drilling | Usage: | Rock Drilling,Hole Drilling,Iron Mine |
| Processing Type: | Forging | Packing: | Plastic Box |
| Weight: | 0.3kg | Diameter: | 32mm |
| Shank: | Taper Shank | Process: | Roll Forged/Milled Body With Welded Shank |
| Advantage: | High Wear Resistant,Factory Price,High Performance | Shank Type: | Taper Shank |
| HS: | 82071990 | ||
| High Light: | 32mm tapered button bits,12 Degree tapered button bits,32mm top hammer bits |
||

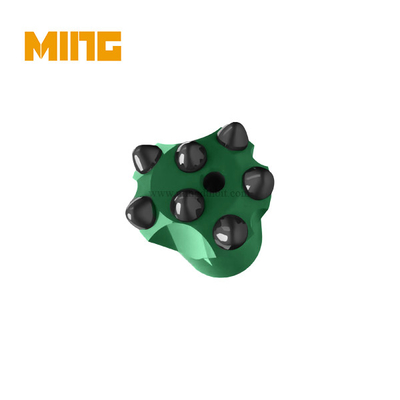

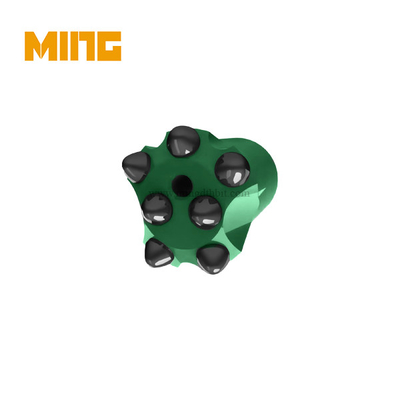

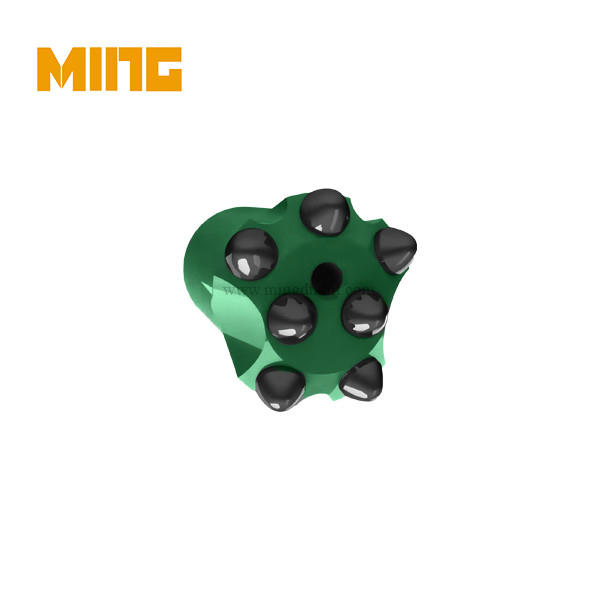

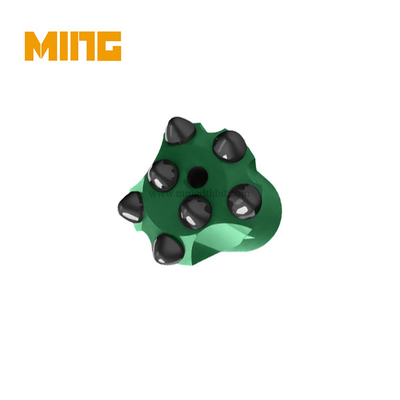

Taper Button Bit for Rock Drilling Down The Hole
Product details:
KINGDRILLING hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a spline drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes. Our variety of Down the Hole (DTH) bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life.
This kind of bit usually used to drill holes with a depth size no more than 5 meters and the diameter scope between 20-45 mm by hand hold drills, such as Y6, Y10, Y24, mainly used in natural dimensional stone quarry for small hole drilling, block's trimming and 2nd splitting for small blocks. It is used to match Hexagonal 22 mm and Hexagonal 12 mm tapered drill steel with 4/6/7/11/12 degree.
| Model | Bit Dia.(mm) | Tip size (mm) | Taper | Weight(kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
Our Advantages as below:
Product Application:
Transport:
Package and Delivery:
Packed by Carton or Wooden cases.
Delivery:
