Product Details:
|
| Material: | High Manganese Steel | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing | Machine Type: | Drilling Tool |
| Processing Type: | Forging | Product Name: | Eccentric Drill Bits |
| Color: | Gold,Request,Yellow,Red | Application: | Water Well Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | Widely Used Hard Rocks And Have Good Penetration |
| Diameter: | 108-273mm | Model Type: | Cop,Halco,DHD,Mission,NUMA |
| Name: | ODEX System (eccentric Overburden System) | Item: | Drilling Hammer Bit Eccentric Overburden Systems |
| Standard: | ISO 9000 | Advantages: | High Strength,High Quality And Factory Prices |
| High Light: | 168mm Overburden Drilling System,168mm ODEX Overburden Drilling System,ODEX casing drilling system |
||
Product Description:

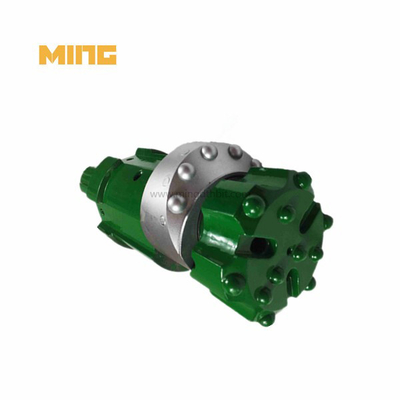

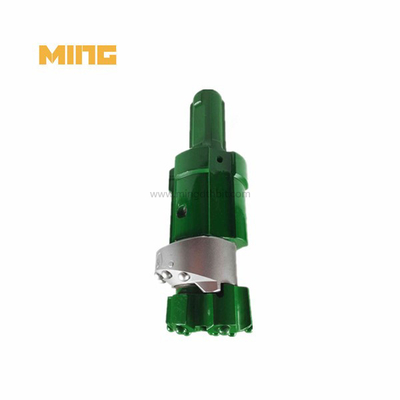

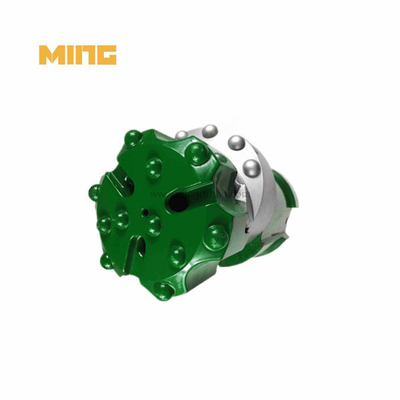

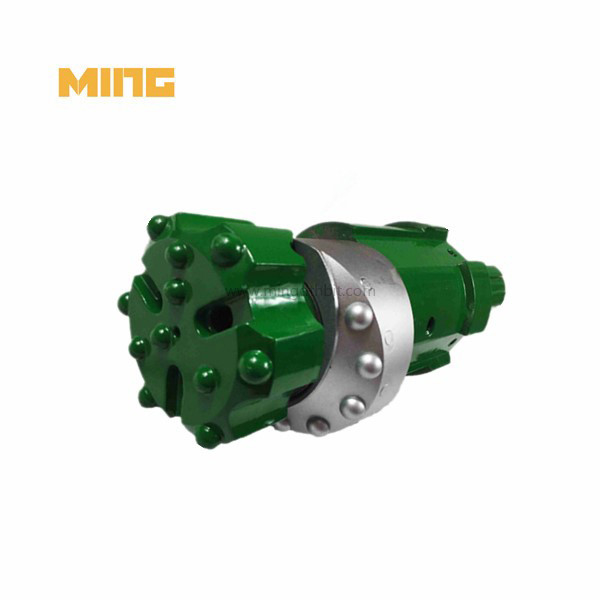

Product name:168mm ODEX eccentric overburden casing drilling system for waterwell drilling
Casing pipe OD: 168mm
MK3E Casing drilling bit has a positive pilot design which helps guide the eccentric bit and produce a straighter hole. When they has been drilled to the required depth, the eccentric bit can be closed to its concentric position by pulling up against the casing shoe and counter rotating the bit holder is fitted into the hammer in the same way as a conventional.
Product components:
Pilot bit + middle reamer bit + casing shoe
Production details:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK3E108 | 118 | 93-99 | 90 |
| MK3E127 | 136 | 115-117 | 110 |
| MK3E146 | 152 | 130-134 | 110/340 |
| MK3E168 | 185 | 148-156 | 110/340 |
| MK3E178 | 195 | 158-166 | 150/340 |
| MK3E183 | 196 | 168-176 | 350/360 |
| MK3E193 | 206 | 176-182 | 360 |
| MK3E219 | 236 | 199-207 | 360 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Products application:
It can be used in foundation construction, Piling, Water Well and Geothermal, Tunneling and Horizontal drilling. Specially the rock formation is not stable with fractures.
Products manufacturing:
