Product Details:
|
| Material: | Carbon Steel | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Odex Drilling System,Odex Overburden System | Machine Type: | Drilling Tool |
| Product Name: | Eccentric Drill Bits | Color: | Gold,Request,Yellow,Red |
| Application: | Construction | Usage: | Hole Drilling,Mining&Construction&Water Well Drilling |
| Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration | Diameter: | 108-273mm |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Hammer Type: | Overburden Drilling System |
| Standard: | ISO 9000 | Advantages: | Hign Abrasion Risistance,High Performance,High Quality And Factory Prices |
| High Light: | Overburden Drilling System ODM,Carbon Steel Overburden Drilling System,133mm eccentric drill bit |
||

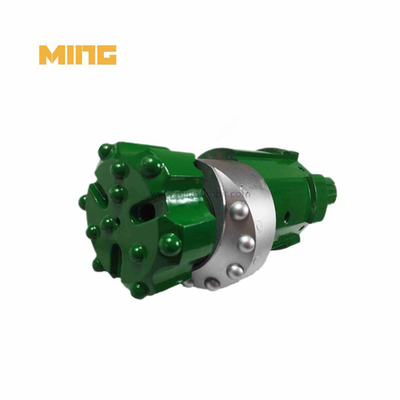

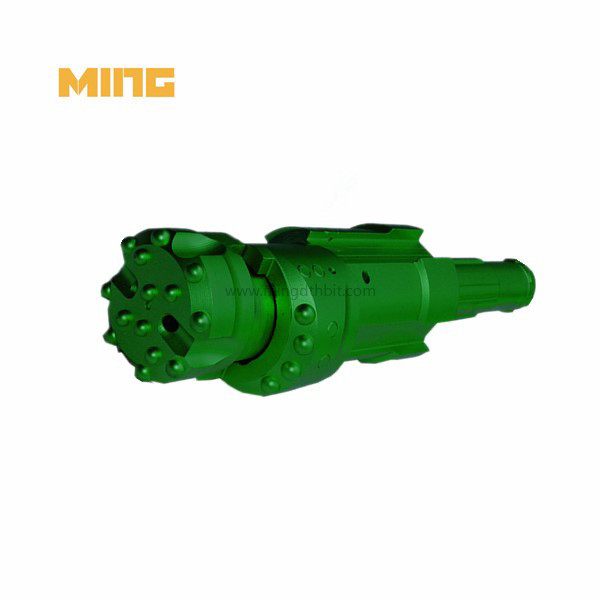

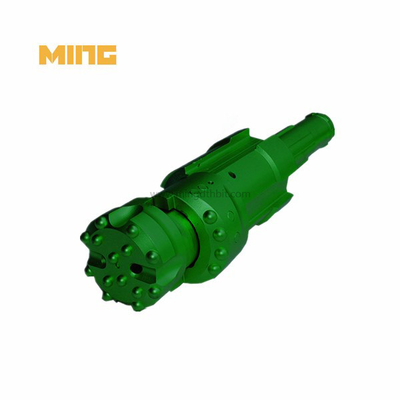

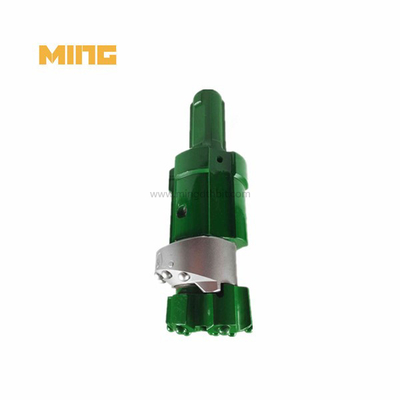

Product name:High Carbon Steel MK3E133mm overburden eccentric drilling bit for construction
Casing pipe OD: 133mm
When simultaneously drilling and casing through loose overburden materials, our casing drilling system gives you great results. MRE series is a cost-efficient system that leaves less material behind in the hole.
Product components:
Pilot bit + middle reamer bit + casing shoe
Production details:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK3E108 | 118 | 93-99 | 90 |
| MK3E127 | 136 | 115-117 | 110 |
| MK3E146 | 152 | 130-134 | 110/340 |
| MK3E168 | 185 | 148-156 | 110/340 |
| MK3E178 | 195 | 158-166 | 150/340 |
| MK3E183 | 196 | 168-176 | 350/360 |
| MK3E193 | 206 | 176-182 | 360 |
| MK3E219 | 236 | 199-207 | 360 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Products application:
It can be used in foundation construction, Piling, Water Well and Geothermal, Tunneling and Horizontal drilling. Specially the rock formation is not stable with fractures.
RFQ:
1. What is the purpose of surface casing?
Surface casing is set to provide blowout protection, isolate water sands, and prevent lost circulation. It also often provides adequate shoe strength to drill into high-pressure transition zones.
2. What is overburden mine?
In mining, overburden (also called waste or spoil) is the material that lies above an area that lends itself to economical exploitation, such as the rock, soil, and ecosystem that lies above a coal seam or ore body.
Products manufacturing:
