Product Details:
|
| Material: | Carbon Steel | Use: | Well Drilling |
|---|---|---|---|
| Type: | Odex Drilling System | Machine Type: | Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Eccentric Drill Bits |
| Color: | Gold,Required,Yellow,Red | Application: | Mining,water Well Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling,water Well | Advantage: | High Performance,High-efficiency |
| Diameter: | 108-273mm | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Hammer Type: | Overburden Drilling System |
| Advantages: | High Performance,High Quality And Factory Prices | ||
| High Light: | Overburden hole opener bit,219mm hole opener bit,219mm hole opener reamer |
||

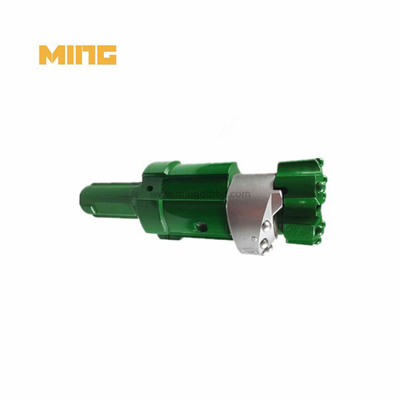

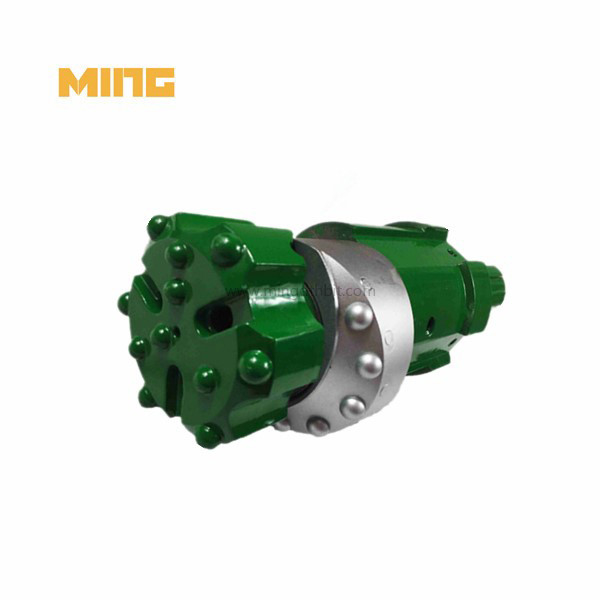

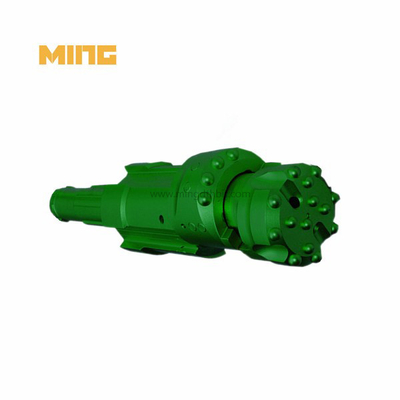

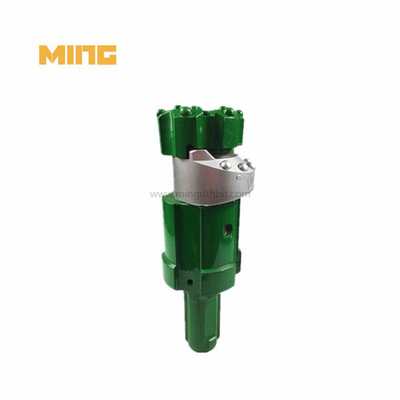

Product name: 219mm casing pipe MK3E overburden middle reamer casing drilling bit for warter well drilling
Casing pipe OD: 219MM
When simultaneously drilling and casing through loose overburden materials, our casing drilling system gives you great results. MRE series is a cost-efficient system that leaves less material behind in the hole.
Product components:
Pilot bit + middle reamer bit + casing shoe
Production details:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK3E108 | 118 | 93-99 | 90 |
| MK3E127 | 136 | 115-117 | 110 |
| MK3E146 | 152 | 130-134 | 110/340 |
| MK3E168 | 185 | 148-156 | 110/340 |
| MK3E178 | 195 | 158-166 | 150/340 |
| MK3E183 | 196 | 168-176 | 350/360 |
| MK3E193 | 206 | 176-182 | 360 |
| MK3E219 | 236 | 199-207 | 360 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Products application:
It can be used in foundation construction, Piling, Water Well and Geothermal, Tunneling and Horizontal drilling. Specially the rock formation is not stable with fractures.
RFQ:
1. What is overburden in geology?
Overburden is the rock or soil layer that needs to be removed in order to access the ore being mined. Overburden is also referred to as spoil or waste. Overburdens are removed from surface mining and do not contain toxic components, unlike tailings, which is another type of underground mining waste.
2. Why is overburden important?
In a petroleum system, the overburden rock overlies the source rock and contributes to its thermal maturation because of higher temperatures at greater depths. The age and thickness of the overburden rock determines the burial rate and thereby influences the heating rat.
3. Where do they put overburden?
The most common use for the large volumes of overburden produced by a surface mine is to remediate and reclaim the area where it was first removed. Putting the sand, rock, and clay back where it came from helps rebuild the level of the soil so that plant life can return.
Products manufacturing:
