Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing | Machine Type: | Drilling Tool |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System,odex Drilling System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,construction,water Well Drilling,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Diameter: | 115mm-240mm | Model Type: | Cop,Halco,DHD,Mission,NUMA |
| Name: | ODEX System (eccentric Overburden System) | Item: | Overburden Drilling Casing System |
| Hammer Type: | Overburden Drilling System | Advantages: | High Strength,High Performance,High Quality And Factory Prices |
| HS: | 82071990 | ||
| High Light: | Symmetric Hole Opener Drill Bit,127mm Hole Opener Drill Bit,127mm hole opener bit |
||

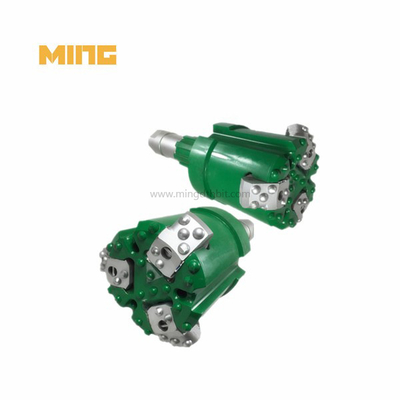

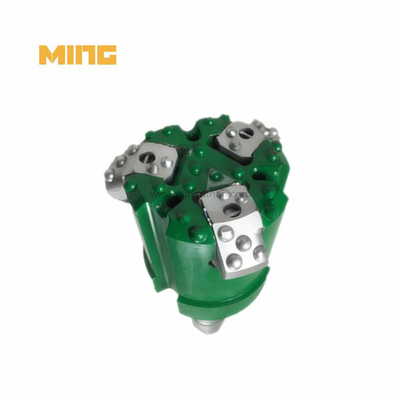

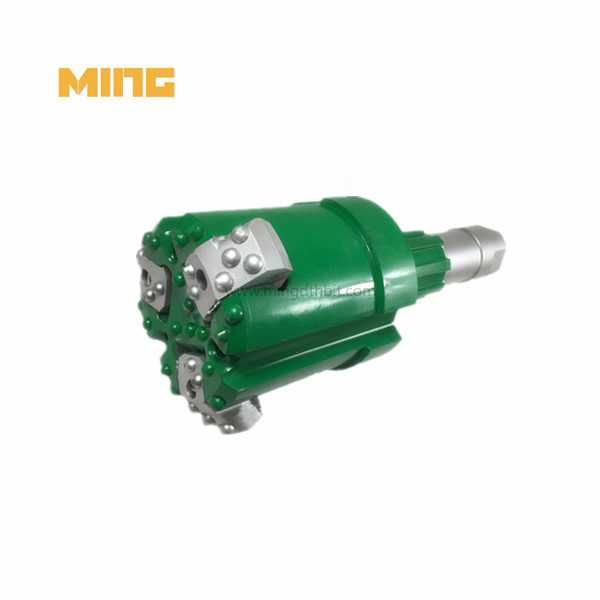

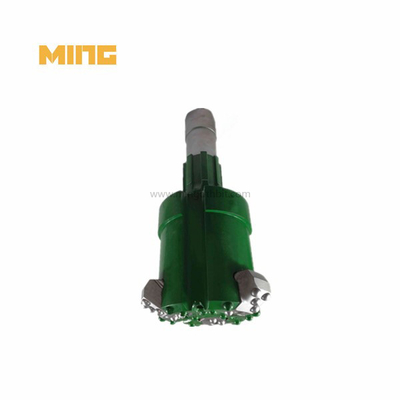

Product name: 127mm MSX Slide block symmetric under reaming casing drilling bit for Foundation
Casing pipe OD: 127mm
We are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.
Mining Exploration Drilling.
The measures of success in exploration drilling are sample quality and rate of productivity.
Product components:
1. Pilot bit+2PCS Slide blocks+casing shoe
2. Pilot bit+3PCS Slide blocks+casing shoe
3. Pilot bit+4PCS Slide blocks+casing shoe
Production details:
| Model | Hole dia(mm) | Weight (KG) | Pilot dia.(mm) | length (mm) | Case dia.(OD*ID) | Spline |
| MK-MSX90 | 125 | 16 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MSX115 | 155 | 30 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MSX140 | 188 | 52 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MSX165 | 215 | 95 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MSX190 | 238 | 108 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MSX215 | 276 | 140 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MSX235 | 293 | 160 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MSX240 | 293 | 168 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style.
Advantage:
S 1. traight Holes and Fast Penetration Rate
Le2. 2. Less Torque in all ground conditions
Product Manufacturing:
