Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,odex Drilling System,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Eccentric Drill Bits,Concentric Casing System,odex Drilling System |
| Color: | Gold,Yellow,Red | Application: | Construction,water Well Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems | Advantages: | High Strength,High Performance,High Quality And Factory Prices |
| High Light: | 146mm Overburden Drilling System,MK5E Overburden Drilling System,146mm eccentric casing |
||

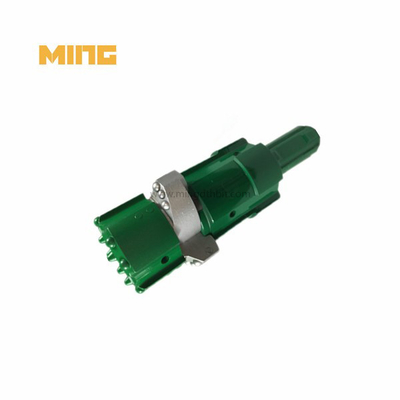

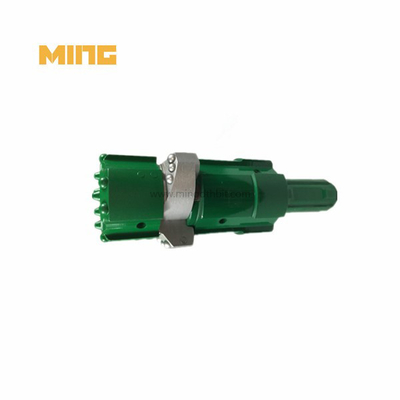

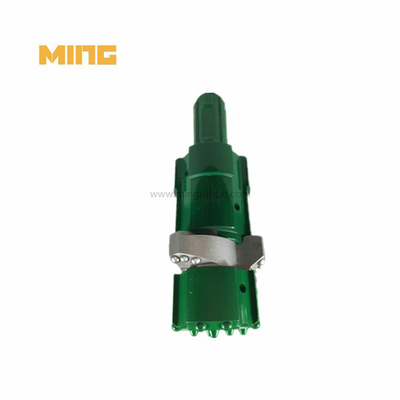

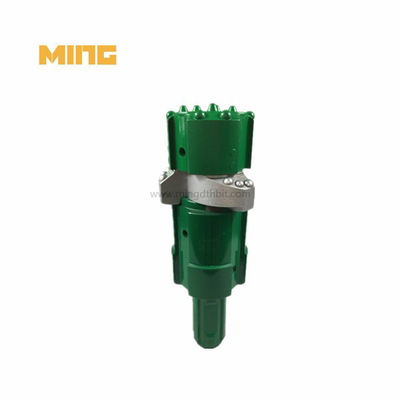

Product Name: 146mm MK5E Overburden Eccentric Casing drilling system with CIR110 shank for water welld rilling
Product category: Overburden eccentric casing bit
Matched hammer: Hammer CIR110
Matched casing pipe OD: 146mm
MK5E Eccentric casing bit feature:
When simultaneously drilling and casing through loose overburden materials, our Casing drilling system gives you great results. They are a cost-efficient system that leaves less material behind in the hole.
MK5E casing bit technical data:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK5E108 | 115 | 93-99 | 90 |
| MK5E127 | 130 | 115-117 | 110 |
| MK5E146 | 155 | 130-134 | 110/340 |
| MK5E168 | 185 | 148-156 | 110/340 |
| MK5E178 | 195 | 158-166 | 150/340 |
| MK5E183 | 196 | 168-176 | 350/360 |
| MK5E193 | 206 | 176-182 | 360 |
| MK5E219 | 236 | 199-207 | 360 |
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Kingdrilling eccentric casing bit advantage:
1. Hardening treatment of the part’s surface:with longer operating life and excellent anti-wear properties.
2. Structural optimization:Strengthen the structural strength, easy to operate
3. Superior performance:Stable and reliable performance, high drilling speed
FAQ:
1. How to order the products?
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.
4.How deep can a water well be drilled?
Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area.
