Product Details:
|
| Machine Type: | Drilling Tool | Material: | High Manganese Steel |
|---|---|---|---|
| Use: | Well Drilling,Mining & Water Well Drilling | Type: | Concentric Casing System |
| Model Type: | DHD360 | Color: | Golden,Request,Red,blue,Gold |
| HS: | 82071990 | ||
| High Light: | 219mm Concentric Drilling System,dhd 360 Concentric Drilling System,Overburden dhd 360 hammer |
||

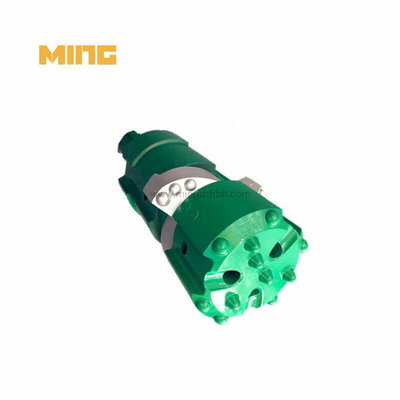

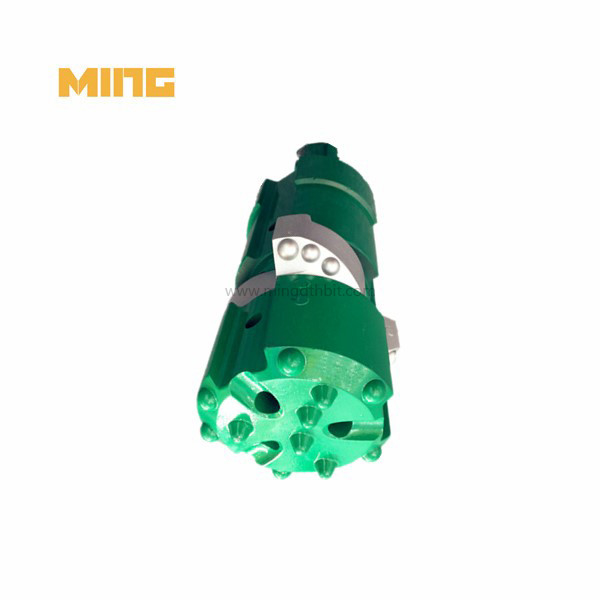

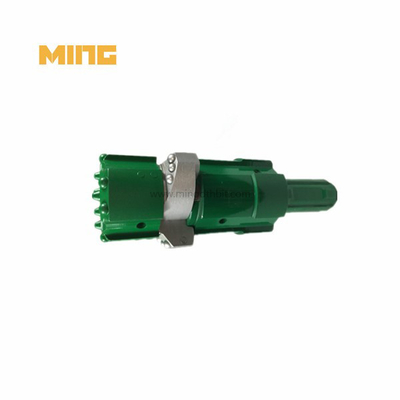

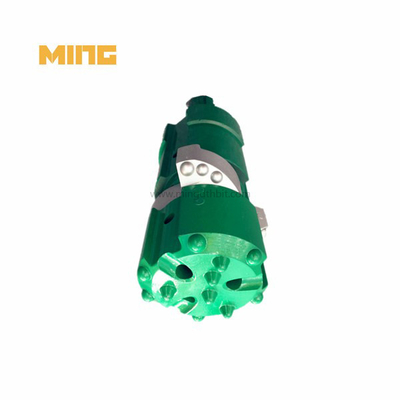

Product name: 219mm MK5E Overburden Eccentric Casing drilling system with DHD360 shank for construction
Product Category: Casing drilling tools
Matched hammer: Hammer DHD360
Casing pipe OD: 219MM
MK5E Overburden Eccentric Casing drilling system advantage:
1. Straight Holes and Fast Penetration Rate
2. More Holes and Low investment
3. Straight drilling hole
It is suitable for drilling water wells, geothermal wells, Micro piles, medium mini-type grouting hole of building, dam and harbor project.
MK5E eccentric casing drilling bit technical data
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK5E108 | 115 | 93-99 | 90 |
| MK5E127 | 130 | 115-117 | 110 |
| MK5E146 | 155 | 130-134 | 110/340 |
| MK5E168 | 185 | 148-156 | 110/340 |
| MK5E178 | 195 | 158-166 | 150/340 |
| MK5E183 | 196 | 168-176 | 350/360 |
| MK5E193 | 206 | 176-182 | 360 |
| MK5E219 | 236 | 199-207 | 360 |
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
FAQ:
1. How to order the products?
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Fast delivery time:
A: Usually it takes 25 days for production.only 3 or 5 days if we have stock of your request size.
4. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union.
5. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
