Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System,odex Drilling System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,construction,mining,water Well Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Name: | ODEX System (eccentric Overburden System) | Item: | Overburden Drilling Casing System |
| Advantages: | High Quality And Factory Prices | HS: | 82071300 |
| High Light: | 159mm Hole Opener Drill Bit,Under Reamer Hole Opener Drill Bit,159mm under reamer hole opener |
||

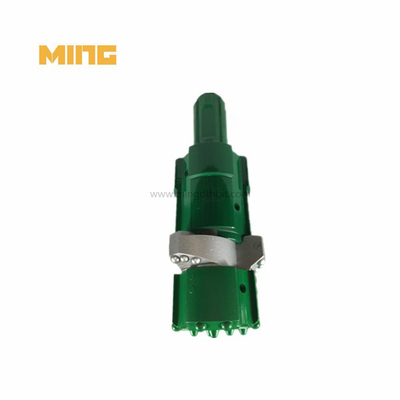

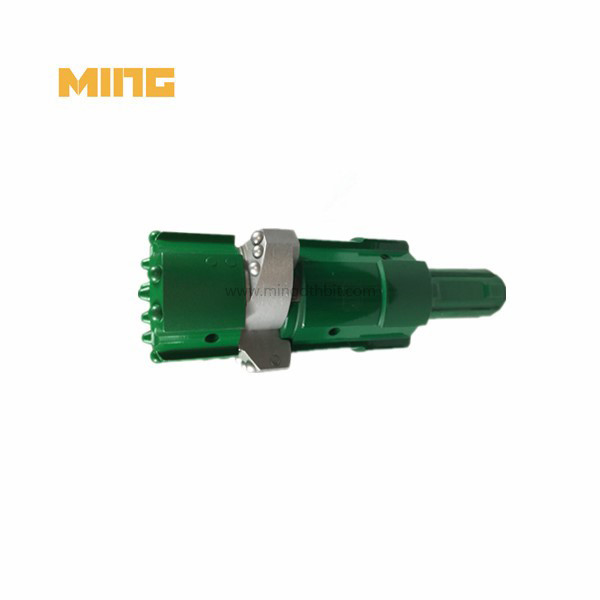

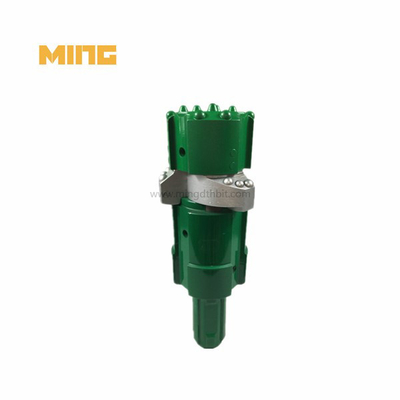

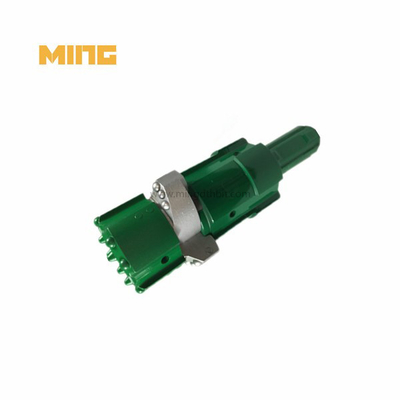

Product name: 159mm MK5E Overburden casing drilling tools with CIR110 shank for water well drilling
Product category: Overburden casing drilling tools
Matched hammer: Hammer CIR110
Matched casing pipe OD: 159mm
MK5E casing drilling tools application range:
It is suitable for drilling water wells, geothermal wells, short micropiles, medium mini-type grounting hole of building, dam and harbour project.
MK5E Casing drilling tools advantage:
1. Simple structure
2. Easy operation
3. Reliable quality
4. Retrievable drilling tools
5. Long service life
MK5E Casing drilling tools technical parameters:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK5E108 | 115 | 93-99 | 90 |
| MK5E127 | 130 | 115-117 | 110 |
| MK5E146 | 155 | 130-134 | 110/340 |
| MK5E168 | 185 | 148-156 | 110/340 |
| MK5E178 | 195 | 158-166 | 150/340 |
| MK5E183 | 196 | 168-176 | 350/360 |
| MK5E193 | 206 | 176-182 | 360 |
| MK5E219 | 236 | 199-207 | 360 |
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
FAQ:
1. What are odex piles?
ODEX is an abbreviation of Overburden Drilling EXentric and is a generic term used to describe percussively drilled and cased piles. Typically used in challenging ground conditions such as soils with cobbles, boulders and rock layers, and can be used to pile through mine workings, and broken or laminated rock.
2. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
3. How far can you directional bore?
What are the minimum and maximum lengths of crossing? Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m
