Product Details:
|
| Material: | Carbon Steel,High Manganese Steel,Carbide,diamond | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Eccentric Drill Bits,Concentric Casing System |
| Color: | Gold,Required,Yellow,Red | Application: | Construction,mining Or Welling Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Hammer Type: | Overburden Drilling System,DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD110 DHD112 |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Strength,High Performance,High Quality And Factory Prices |
| High Light: | MK5E air rock drill bits,dth air rock drill bits,MK5E dth drilling bits |
||

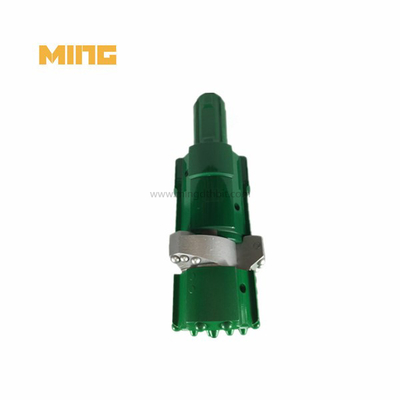

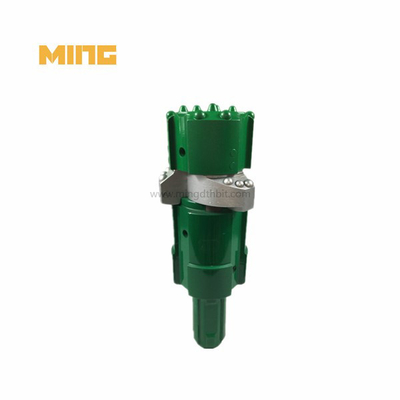

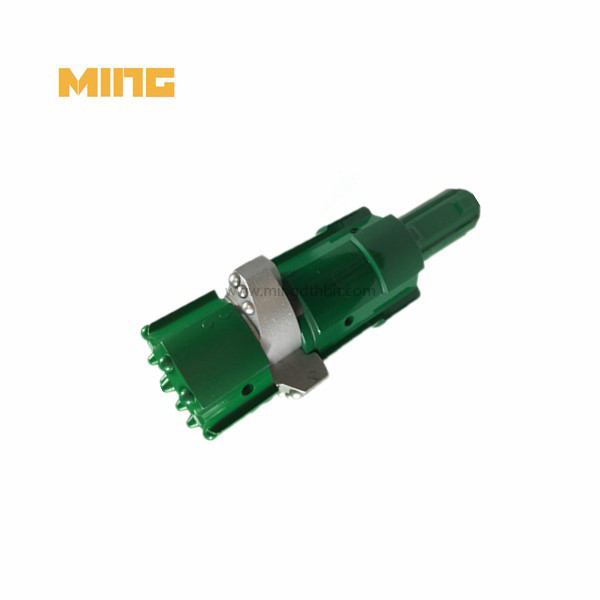

Product name: 108mm MK5E Overburden Casing drilling system with CIR110 shank for Geothermal drilling
Product category: Overburden casing drilling system
Matched hammer: Hammer CIR110
Matched casing pipe OD: 108mm
We are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.
The measures of success in exploration drilling are sample quality and rate of productivity.
MK5E Overburden Casing drilling system technical parameters
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK5E108 | 115 | 93-99 | 90 |
| MK5E127 | 130 | 115-117 | 110 |
| MK5E146 | 155 | 130-134 | 110/340 |
| MK5E168 | 185 | 148-156 | 110/340 |
| MK5E178 | 195 | 158-166 | 150/340 |
| MK5E183 | 196 | 168-176 | 350/360 |
| MK5E193 | 206 | 176-182 | 360 |
| MK5E219 | 236 | 199-207 | 360 |
Other size of MK5E system is available upon customer's request
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
MK5E Casing drilling tools advantage:
1. Simple structure
2. Easy operation
3. Reliable quality
4. Retrievable drilling tools
5. Long service life
FAQ:
1. What is casing design?
The design of a casing program involves the selection of setting depths, casing sizes and grades of steel that will allow for the safe drilling, and completion of a well to the desired producing configuration.
2. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
3. Where does overburden go during a mining operation?
Overburden is used for reprocessing, contouring land, and as a construction aggregate for buildings and roads. Mine tailings are reused for producing clay, tiles, glass, and concrete. Mine water is treated and then used for dust and particulate suppression, agricultural/industrial use, and as a coolant
