Concentric Casing 3 Inch 4 Inch Rock Drill Bit System In Loose Soil

Product name: 127MM single use concentric caisng drilling system in loose soil

Product category: Concentric casing drilling bit

Matched hammer: Hammer DHD340

Matched casing pipe OD: 129mm

MRING casing drilling bit components:

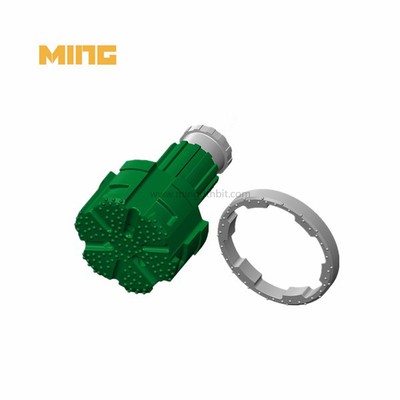

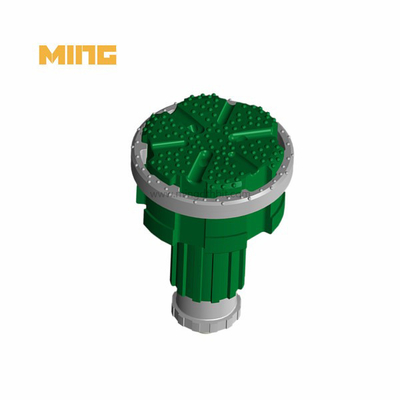

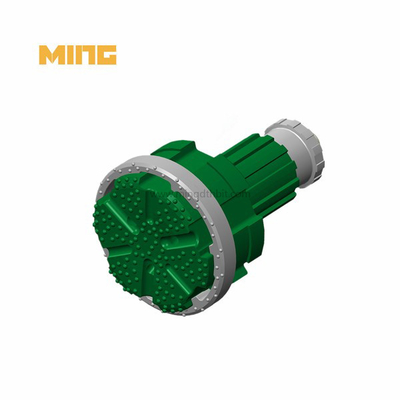

Pilot bit + ring bit + casing shoe

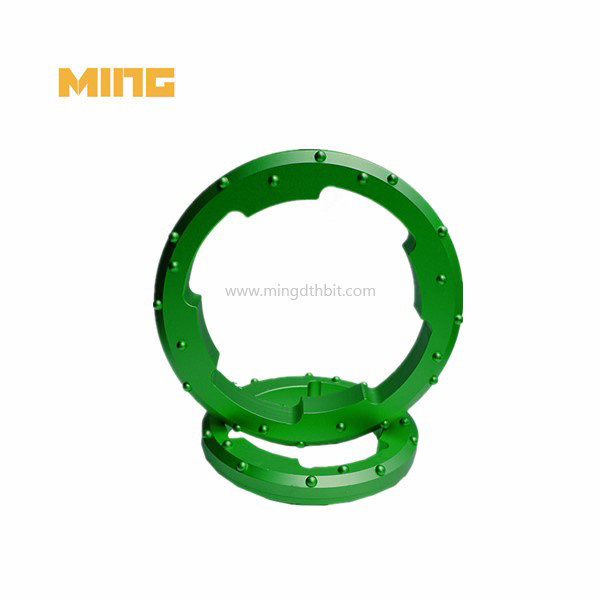

MRING overburden drilling systems are designed to use ring bit which is not connected to casing shoe.
Special profile DTH Bit passes through enough large inner diameter of ring bit.

MRING casing bit details:

How to order:

Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +

Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)

Other size of MRING system is available upon customer's request

FAQ:

1. What is odex drilling?
ODEX is an adaptation of the air-operated down-the-hole hammer. It uses a swing-out eccentric bit to ream the bottom of the casing. Cuttings blow up through the drive sub and casing annulus to a swivel conducting them to a sample collector or onto the ground. Rapid removal of cuttings.

2. Where do they put overburden?

The most common use for the large volumes of overburden produced by a surface mine is to remediate and reclaim the area where it was first removed. Putting the sand, rock, and clay back where it came from helps rebuild the level of the soil so that plant life can return.

3. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
