Odex Mining Down Hole Hammer Drill Bits System

Odex Mining Down Hole Hammer Drill Bits System
Odex Mining Down Hole Hammer Drill Bits System
Odex Mining Down Hole Hammer Drill Bits System Odex Mining Down Hole Hammer Drill Bits System Odex Mining Down Hole Hammer Drill Bits System Odex Mining Down Hole Hammer Drill Bits System Odex Mining Down Hole Hammer Drill Bits System

Large Image :  Odex Mining Down Hole Hammer Drill Bits System

Product Details:
Place of Origin: CHINA
Brand Name: MING
Certification: ISO9001
Model Number: MK5E159-DHD340
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 999-99999USD/PC
Packaging Details: WOODEN CASE
Delivery Time: 3-5WEEKS
Payment Terms: T/T, D/P, Western Union
Supply Ability: 2000PCS/MONTH
Contact Now

Odex Mining Down Hole Hammer Drill Bits System

Description
Material: Carbon Steel,Carbide Use: Mining; Water Well Drilling
Type: Odex Drilling System Machine Type: Drilling Equipment
Processing Type: Forging,Machining Process Product Name: Concentric Casing System
Color: Gold,Request,Yellow,Red Application: Construction,water Well Drilling
Usage: Hole Drilling,Mining&Construction&Water Well Drilling Advantage: High Performance,Widely Used Hard Rocks And Have Good Penetration
Model Type: Cop,Halco,DHD,Mission,NUMA Name: ODEX System (eccentric Overburden System)
Item: Overburden Drilling Casing System Hammer Type: Overburden Drilling System
Button Shape: Spherical/Ballistic/Parabolic/Sharp/Flat Advantages: High Strength,High Performance,High Quality And Factory Prices
Highlight:

Odex down hole hammer drill bits

,

Mining down hole hammer drill bits

,

Odex mining drill bits

Product name: 146 MM MRING single-use symmetric caisng drilling system with casing shoe

Product category: MRING Concentric casing drilling bit

Matched hammer: Hammer DHD340

Matched casing pipe OD: 146mm



Kingdrilling Concentric Casing System Ring Bit is the latest new and simple product line designed and manufactured by Kingdrilling for drilling through overburden with casing.



MRING Concentric casing drilling bit components:

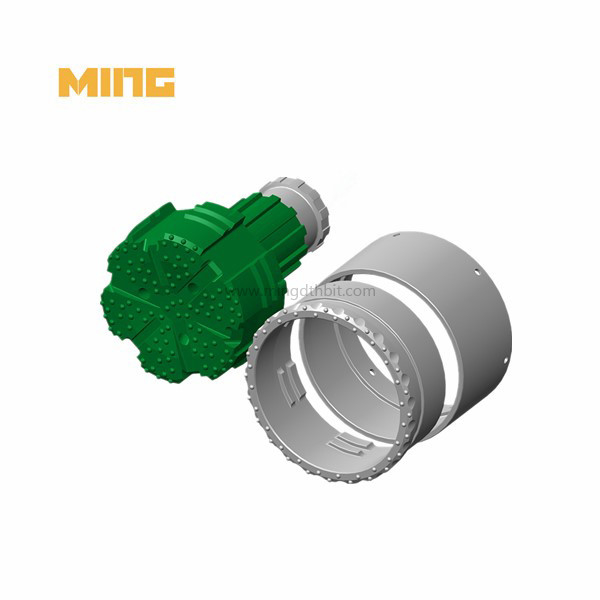

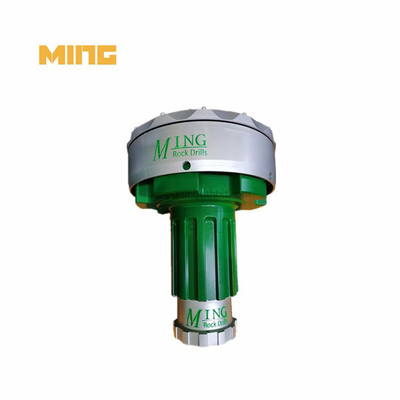

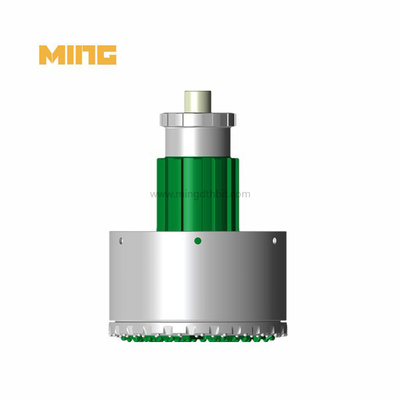

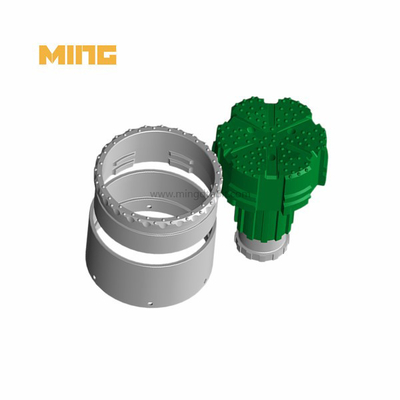

Pilot bit + ring bit + casing shoe



MRING Concentric casing drilling bit details:



Model External Dia.(mm) Casing Dia.(OD*ID) Spline
MK-MRING90 125 114*102 MACH33, DHD3.5
MK-MRING115 155 139*127 DHD340, SD4, QL4
MK-MRING140 188 168*153 DHD350, SD5, QL5
MK-MRING165 215 194*181 DHD360, SD6, QL6
MK-MRING190 238 219*206 DHD360, SD6, QL6
MK-MRING215 276 254*240 DHD380, SD8, QL8
MK-MRING235 293 273*254 DHD380, SD8, QL8
MK-MRING240 293 273*260 DHD380, SD8, QL8
MK-MRING280 345 323*303 SD10
MK-MRING315 375 355*335 SD10
MK-MRING365 432 406*387 N120, N125, SD12
MK-MRING460 530 508*483 N125, N180
MK-MRING510 580 559*533 N180
MK-MRING560 635 610*584 N180
MK-MRING610 695 660*632 N240
MK-MRING660 735 711*685 N240
MK-MRING710 785 762*736 N240
MK-MRING745 838 813*780 N240
MK-MRING810 886 864*838 N240, N240S
MK-MRING860 935 914*884 N240S
MK-MRING910 980 965*935 N240S
MK-MRING960 1038 1016*986 N240S, M330
MK-MRING1010 1090 1067*1041 M330



How to order:

Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +

Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)



Other size of MRING system is available upon customer's request





MRING Concentric casing drilling bit Advantage:

1. Enhance penetration and perpendicularity

2. Deal with straight, oblique hole and other angle holes

3. Material: TIMKIN Steel. Tungsten carbide: YK05, T6 from Element Six in Germany

4. Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer, and harness process is managed by multipurpose furnace heat treatment.

5.Quality: More than 40 Years engineer to make sure the quality, 100% inspection



Products Manufacturing:

Odex Mining Down Hole Hammer Drill Bits System 0Odex Mining Down Hole Hammer Drill Bits System 1

Odex Mining Down Hole Hammer Drill Bits System 2
