Product Details:
|
| Material: | High Manganese Steel,Carbide,diamond | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,DTH Hammer |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System |
| Color: | Gold,Yellow,Red | Application: | Mining,water Well Drilling,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well Drilling,water Well | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Halco,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat |
| Advantages: | High Performance,High Quality And Factory Prices | ||
| High Light: | Down The Hole Overburden Drilling System,Quarry Overburden Drilling System,168MM down the hole hammer bits |
||

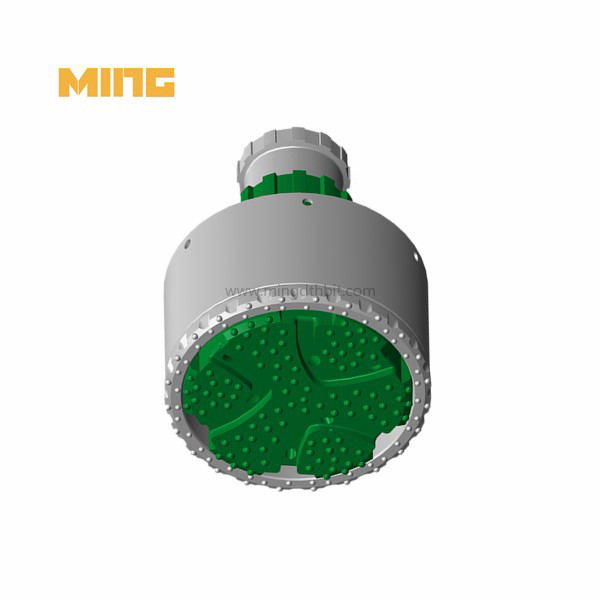

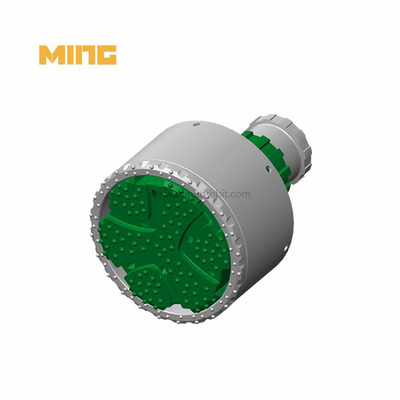

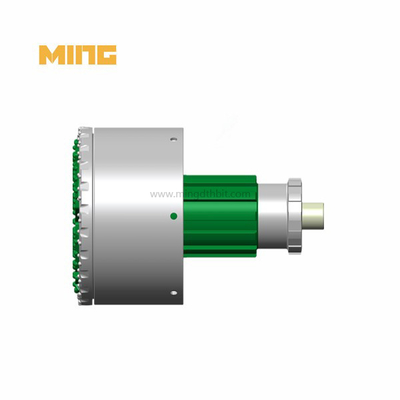

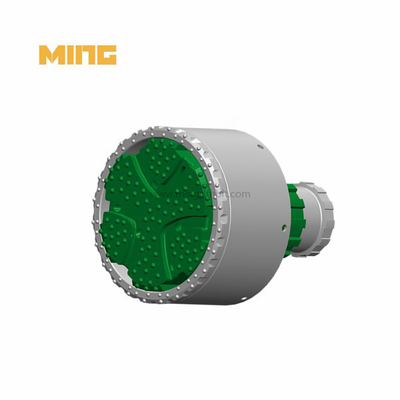

Product name: 168 MM MRING-XD integral multi-use symmetric caisng drilling system for mining and quarry drilling
Product category: MRING integral ring bit casing drilling tools
Matched hammer: Hammer DHD350
Matched casing pipe OD: 168mm
MRING-XD integral multi-use ring bit feature:
1. The Symmetric components are made up of:
2. A pilot bits with large internal flushing holes and external flushing grooves
3. Symmetrical ring bit (reamer) with internal bayonet coupling
4. Casing shoe for driving of casing.
MRING-XD integral multi-use ring bit technical parameters.
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
Other size of MRING system is available upon customer's request
FAQ:
1. How to order the products?
A: Please send the inquiry with detail item description or with Model number.
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. Why choose us?
High-quality products, reasonable price, professional team work.
4. What is drill casing?
Casing is a large diameter pipe that is assembled and inserted into a recently drilled section of a borehole. Similar to the bones of a spine protecting the spinal cord, casing is set inside the drilled borehole to protect and support the wellstream.
5. Can you make the goods according to our drawings or samples
Yes, we have the professional molding department, our technician R&D teams are have rich experience.
6. What is your minimum order requirement?
We accept the small trial order at our initial cooperation, even only 1 piece, we will treat it as a big order and try our best to meet our customer’s requirement.
