Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Mining; Water Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Tool,Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System |
| Color: | Request,Yellow,Red | Application: | Construction,water Well Drilling |
| Usage: | Mining&Construction&Water Well Drilling,ore | Advantage: | High Performance,High-efficiency |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Overburden Drilling Casing System | Hammer Type: | DHD3.5 DHD340 DHD350 DHD360 DHD380 DHD110 DHD112 |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Performance,High Quality And Factory Prices |
| High Light: | DHD360 Overburden Drilling System,8 Inch Overburden Drilling System,8 Inch dth bits |
||

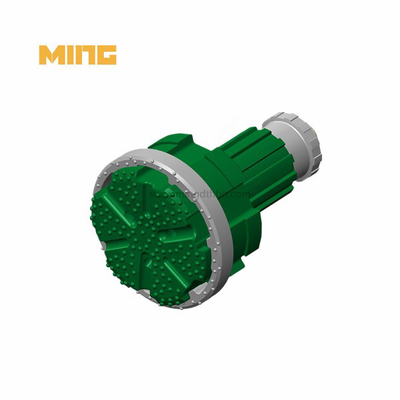

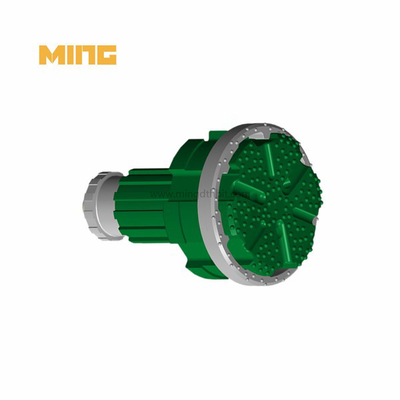

Product name: 273mm MRING tunneling casing drilling ring bit for 8 inch DTH hammer
Product category: Concentric casing drilling system
Matched hammer: Hammer DHD380
Matched casing pipe OD: 273mm

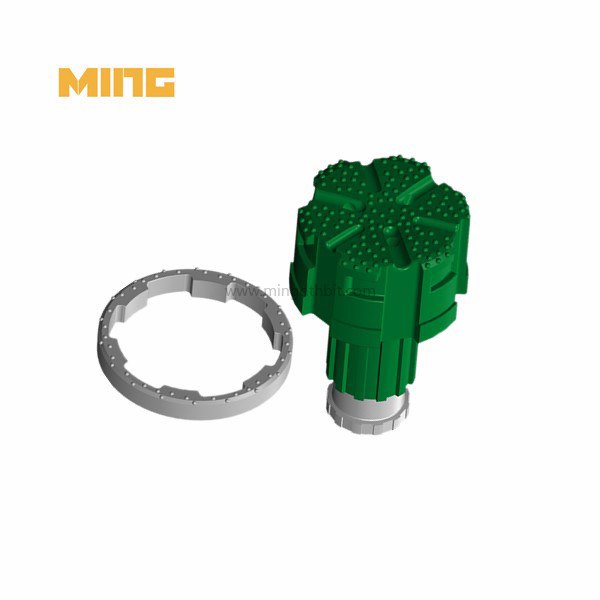

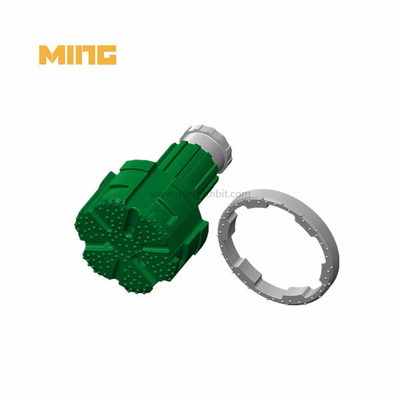

MRING tunneling casing drilling ring bit are designed to use ring bit which is not connected to casing shoe.
Special profile DTH Bit passes through enough large inner diameter of ring bit.
MRING tunneling casing drilling ring bit technical parameters:
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
Other size of MRING system is available upon customer's request
