Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing | Machine Type: | Drilling Tool |
| Processing Type: | Machining Process | Product Name: | Concentric Casing System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,water Well Drilling |
| Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration | Hammer Type: | Overburden Drilling System |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Strength |
| High Light: | 3Inch down the hole drill bits,Symmetric down the hole drill bits,3Inch drill rock tools |
||

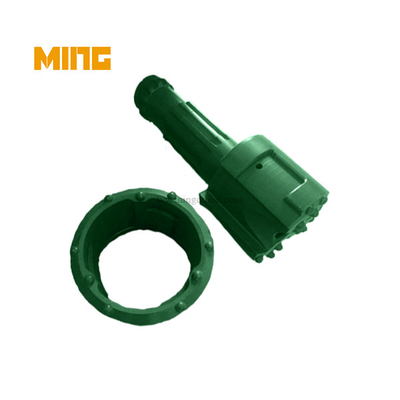

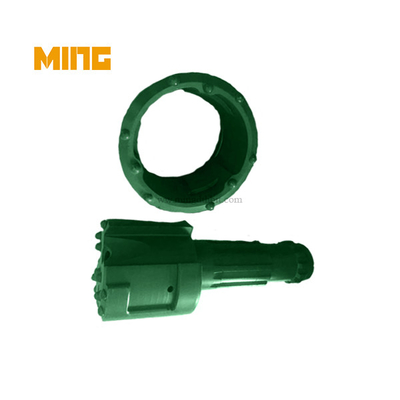

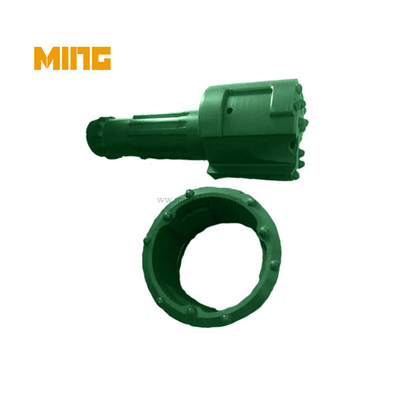

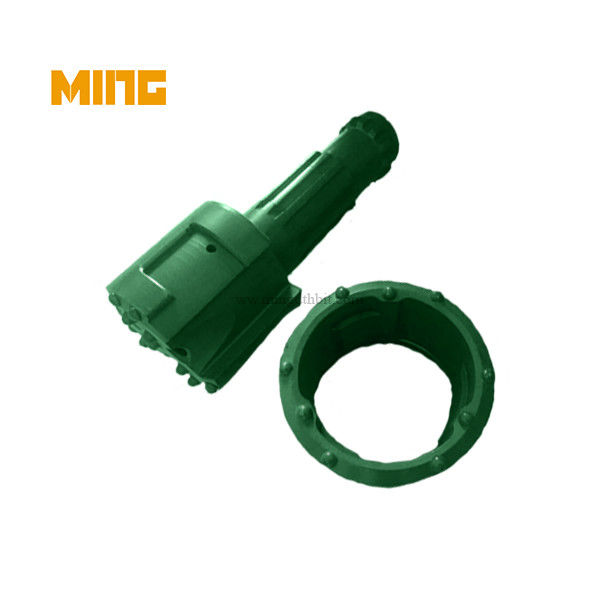

Product name: 323mm MRING-XD integral symmetric casing drilling bit for loose rock formation
Product category: ntegral symmetric casing drilling tools
Matched hammer: Hammer SD10
Matched casing pipe OD: 323mm
MRING-XD integral symmetric casing drilling bit Integral MRING overburden drilling systems are designed to use ring bit which is integrated to casing shoe.This ring bit set is retrieved for multi use.
MRING-XD integral symmetric casing drilling bit technical parameters:
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
Other size of MRS system is available upon customer's request
FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
2. Do you have different type for different kind of rock formation?
Yes, according hardness of stone and stone's feature, we have different type respectively.
3. Can you make the goods according to our drawings or samples
Yes, we have the professional molding department, our technician R&D teams are have rich experience.
4. What is an overburden well?
The overburden wells are usually composed of sands and gravels and they include those constructed into the geological materials that are above bedrock. Most water wells come with a well screen that lets groundwater into the well while keeping away sand and other materials.
5. What is the purpose of surface casing?
Surface casing is set to provide blowout protection, isolate water sands, and prevent lost circulation. It also often provides adequate shoe strength to drill into high-pressure transition zones
6. How far can you directional bore?
What are the minimum and maximum lengths of crossing? Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m
