Product Details:
|
| Material: | High Manganese Steel,Carbide,diamond | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,odex Drilling System | Machine Type: | Drilling Equipment,DTH Hammer |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System,odex Drilling System |
| Color: | Required,Yellow,Red | Application: | Construction,mining |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency |
| Name: | ODEX System (eccentric Overburden System) | Item: | Overburden Drilling Casing System |
| Hammer Type: | Overburden Drilling System | Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat |
| Advantages: | High Strength,High Performance,High Quality And Factory Prices | ||
| High Light: | ODM Hole Opener Drill Bit,1 Inch Hole Opener Drill Bit,1 Inch dth bits |
||

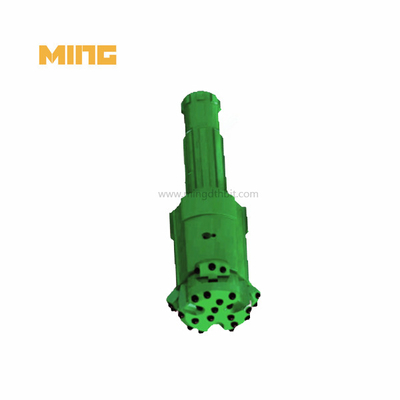

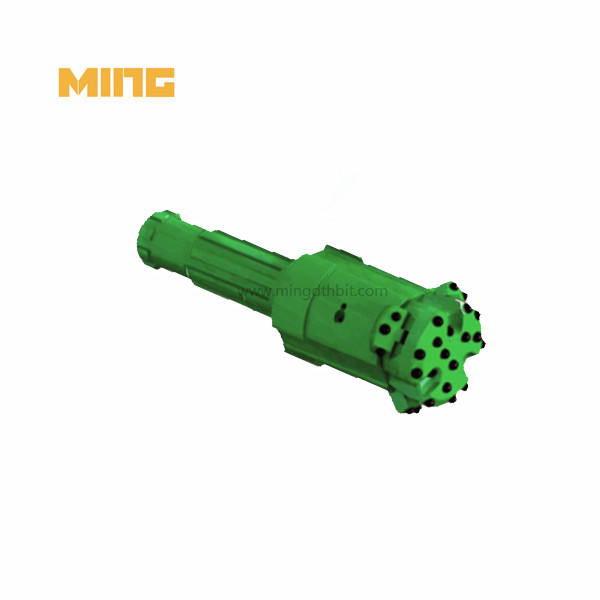

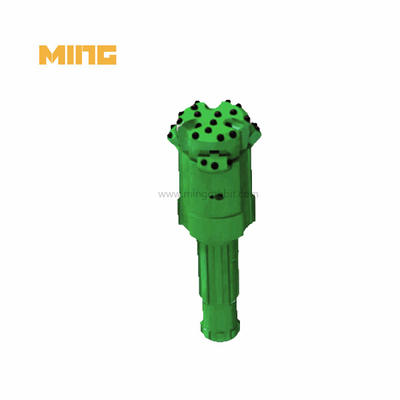

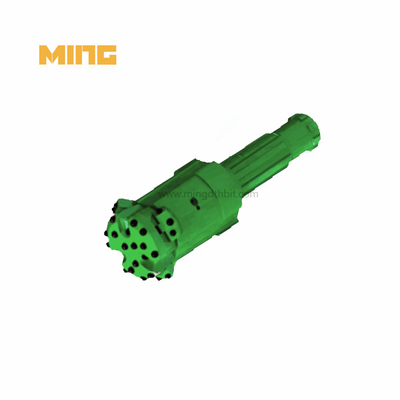

Product name: Complex layer 146mm concentric casing drilling bit for construction
Product category: Overburden concentric casing bit
Matched hammer: Hammer DHD340
Matched casing pipe OD: 146mm
Complex layer concentric casing drilling bit features:
1. Hardening treatment of the part’s surface:with longer operating life and excellent anti-wear properties.
2. Structural optimization:Strengthen the structural strength, easy to operate
3. Superior performance:Stable and reliable performance, high drilling speed
Complex layer concentric casing drilling bittechnical parameters:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| NMK5E108 | 115 | 93-99 | 90 |
| NMK5E127 | 130 | 115-117 | 110 |
| NMK5E146 | 155 | 130-134 | 110/340 |
| NMK5E168 | 185 | 148-156 | 110/340 |
| NMK5E178 | 195 | 158-166 | 150/340 |
| NMK5E183 | 196 | 168-176 | 350/360 |
| NMK5E193 | 206 | 176-182 | 360 |
| NMK5E219 | 236 | 199-207 | 360 |
How to order:
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of NMK system is available upon customer's request
FAQ:
1. What is drill casing?
Casing is a large diameter pipe that is assembled and inserted into a recently drilled section of a borehole. Similar to the bones of a spine protecting the spinal cord, casing is set inside the drilled borehole to protect and support the wellstream.
2. What is hole hammer?
Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.
3. What is overburden fill?
Overburden Soil is a general, unprocessed, fill material that can contain a variety of different materials, depending on where it is sourced. Overburden Soil can contain sand, rocks, clay and stones, and will typically lack the organic material and nutrients found in topsoil.
4. Why is overburden important?
In a petroleum system, the overburden rock overlies the source rock and contributes to its thermal maturation because of higher temperatures at greater depths. The age and thickness of the overburden rock determines the burial rate and thereby influences the heating rat.
5. How far can you directional bore?
What are the minimum and maximum lengths of crossing? Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m
