Product Details:
|
| Material: | Carbon Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Drilling Equipment |
| Processing Type: | Machining Process | Product Name: | Concentric Casing System |
| Color: | Gold,Required,Yellow,Red | Application: | Construction,water Well Drilling |
| Usage: | Hole Drilling,Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System | Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat |
| Advantages: | High Performance,High Quality And Factory Prices | ||
| High Light: | OEM dth drilling tools,610MM dth drilling tools,610MM ring bit drilling system |
||

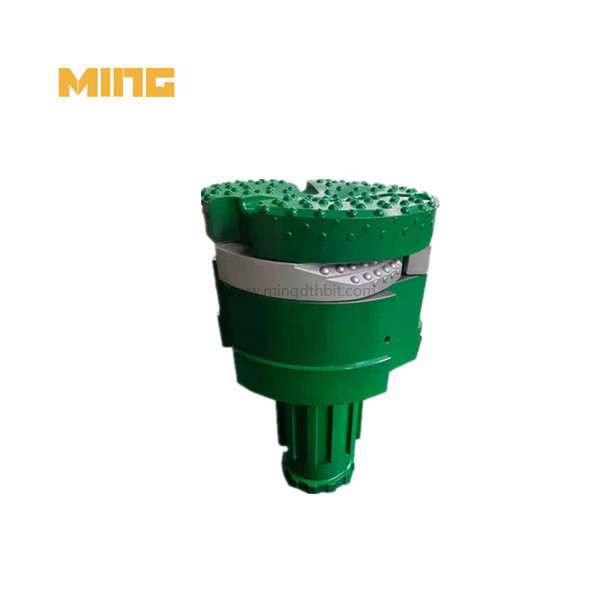

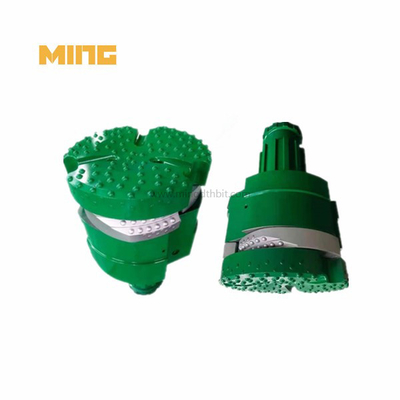

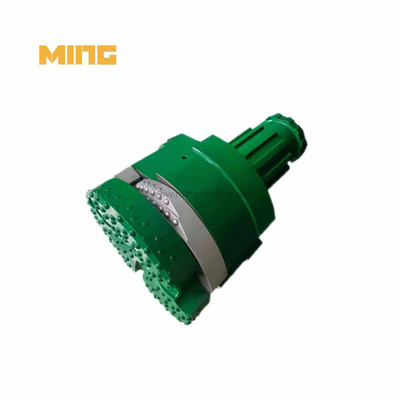

Product name: 610MM MXH horizontal casing drilling bit for tunneling
Product category: horizontal casing drilling bit
Matched hammer: Hammer N180
Matched casing pipe OD: 610mm
MXH horizontal casing drilling bit are designed for economic cost of drilling in simultaneous casing advancement.
NMXH horizontal casing drilling bit advantage:
1. Save Time and Cost.
2. Reduce Formation Exposure Time.
3. Overcome Challenging Drilling Zones.
4. Improve Hole Cleaning.
5. Wellbore Strengthening.
MXH horizontal casing drilling bit technical parameters:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MXH610/560-N180 | 635 | 610*584 | N180 |
| MXH813/750-N240 | 838 | 813*780 | N240 |
| MXH1020/940-N240 | 1090 | 1020*994 | N240 |
How to order:
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Other size of MXH system is available upon customer's request
NMXH horizontal casing drilling bit instruction:
1. Pilot bit
2. 3 wings
3. shank bit
FAQ:
1. What is horizontal directional drilling method?
Horizontal Directional Drilling (HDD) is a construction technique whereby a tunnel is drilled under a waterway or other designated area, and a pipeline or other utility is pulled through the drilled underground tunnel.
2. What are the different types of horizontal directional drilling?
Horizontal directional drilling machines are divided into three categories large-diameter HDD (maxi-HDD), medium-diameter HDD (midi-HDD), and small-diameter HDD (mini-HDD). There is no significant difference in the operation of these systems.
3. How far can you drill horizontally?
Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m (9,843 ft).
4. How accurate is horizontal directional drilling?
The accuracy of the tool is 0.01° in pitch and 0.04° in azimuth. At the same time the tool is not affected by magnetic fields from for example railways and cables.
5. How does horizontal drilling do less damage to landscape?
Horizontal directional drilling is a trenchless solution that is being used more and more to limit environmental damage. With horizontal drilling, you can keep lawns and landscaping intact. This works great for more sensitive, well-manicured spaces, such as golf courses.
