Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing | Machine Type: | Drilling Tool |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System |
| Color: | Gold,Required,Yellow,Red | Application: | Water Well Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Overburden Drilling Casing System | Hammer Type: | Overburden Drilling System |
| Button Shape: | Spherical/Ballistic/Parabolic/Sharp/Flat | Advantages: | High Strength,High Performance |
| High Light: | 127mm casing advancement system,Dth casing advancement system,127mm dth button bits |
||

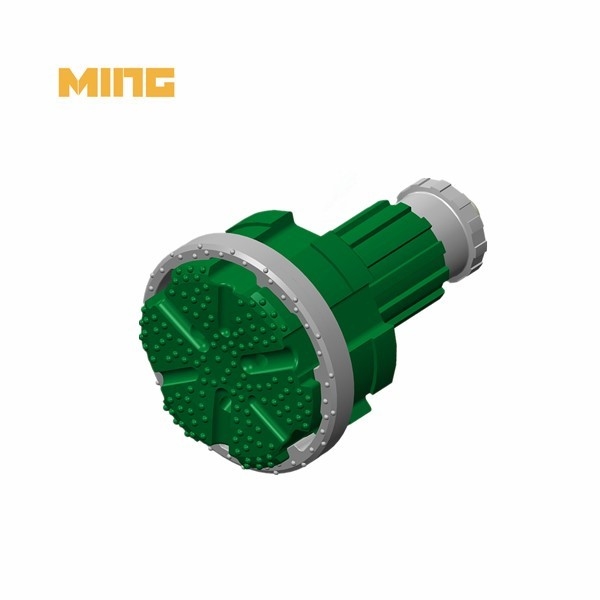

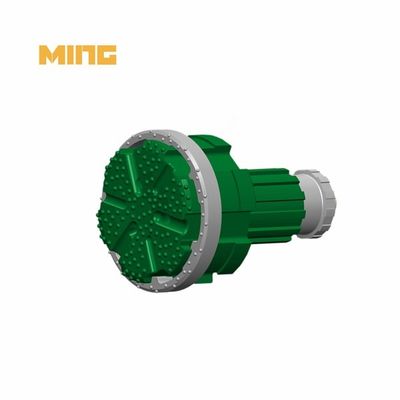

Product name: Single-use 127mm Overburden Casing drilling ringbit
Product category: Overburden casing drilling system
Matched hammer: Hammer DHD340
Matched casing pipe OD: 127mm
Single-use Overburden Casing drilling ringbit description:
Original: Wuxue, Made in china
Delivery time: 20-30 days
Port of shipment: Wuxue, Shanghai, Yiwu, Shenzhen.
Color: Green, Blue, Red, Gold, Black, Custom Colors.
Price term: EXW, FOB, CFR, CIF, DDU

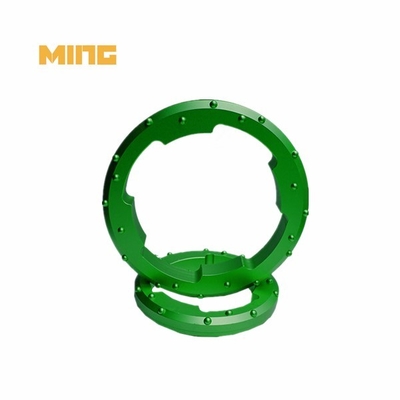

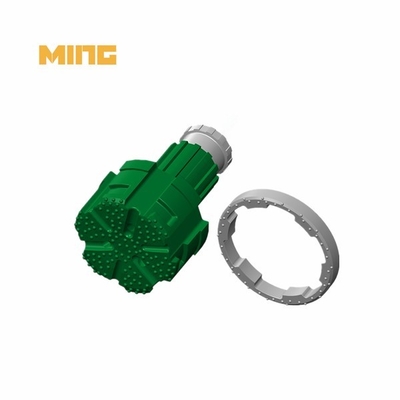

Overburden casing ring bit components:
Pilot bit + ring bit + casing shoe
Production details:
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Spline |
| MK-MRING90 | 125 | 114*102 | MACH33, DHD3.5 |
| MK-MRING115 | 155 | 139*127 | DHD340, SD4, QL4 |
| MK-MRING140 | 188 | 168*153 | DHD350, SD5, QL5 |
| MK-MRING165 | 215 | 194*181 | DHD360, SD6, QL6 |
| MK-MRING190 | 238 | 219*206 | DHD360, SD6, QL6 |
| MK-MRING215 | 276 | 254*240 | DHD380, SD8, QL8 |
| MK-MRING235 | 293 | 273*254 | DHD380, SD8, QL8 |
| MK-MRING240 | 293 | 273*260 | DHD380, SD8, QL8 |
| MK-MRING280 | 345 | 323*303 | SD10 |
| MK-MRING315 | 375 | 355*335 | SD10 |
| MK-MRING365 | 432 | 406*387 | N120, N125, SD12 |
| MK-MRING460 | 530 | 508*483 | N125, N180 |
| MK-MRING510 | 580 | 559*533 | N180 |
| MK-MRING560 | 635 | 610*584 | N180 |
| MK-MRING610 | 695 | 660*632 | N240 |
| MK-MRING660 | 735 | 711*685 | N240 |
| MK-MRING710 | 785 | 762*736 | N240 |
| MK-MRING745 | 838 | 813*780 | N240 |
| MK-MRING810 | 886 | 864*838 | N240, N240S |
| MK-MRING860 | 935 | 914*884 | N240S |
| MK-MRING910 | 980 | 965*935 | N240S |
| MK-MRING960 | 1038 | 1016*986 | N240S, M330 |
| MK-MRING1010 | 1090 | 1067*1041 | M330 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
Products Advantage:
1. Enhance penetration and perpendicularity
2. Deal with straight, oblique hole and other angle holes
3. Material: TIMKIN Steel. Tungsten carbide: YK05, T6 from Element Six in Germany
4. Kingdrilling DTH tools are forged by advanced electron-hydraulic forging hammer, and harness process is managed by multipurpose furnace heat treatment.
5. Quality: More than 40 Years engineer to make sure the quality, 100% inspection
FAQ:
1. What is hole hammer?
Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.
2. What is overburden fill?
Overburden Soil is a general, unprocessed, fill material that can contain a variety of different materials, depending on where it is sourced. Overburden Soil can contain sand, rocks, clay and stones, and will typically lack the organic material and nutrients found in topsoil.
3. How far can you directional bore?
What are the minimum and maximum lengths of crossing? Maximum lengths and hole diameters are determined by project specific geotechnical conditions however effective outside range for heavy rig horizontal directional drilling is 3,000 m
