Product Details:
|
| Certification: | ISO9001 | Application: | Ground Engineering |
|---|---|---|---|
| Color: | Blue,Yellow,glod(as You Need),black Or Others,Accept Customization | Product Name: | Rical Engineering Low Pressure Dth Hammers Down The Hole Drill Pdc Bit |
| Hammer Material: | High Carbon Steel | Hammer Type: | Down The Hole Hammers |
| After-sales Service Provided: | Video Technical Support,Engineers Available To Service Machinery Overseas,Online Support,Overseas Service Center Available | Warranty: | 1 Year |
| Material: | Carbon Steel | Type: | Down The Hole Hammers /DTH Hammers For Sale |
| Processing Type: | Forging | Usage: | Quarry,construction Machine Parts |
| Quality: | Top Brand China | Air Consumption: | 0.5-2.5Mpa |
| Oem: | YES | Business Type:: | Manufacturer, Exporter |
| Usage:: | Foundation Piling. Quarry, Mining, Soil Nailing, Water Well Drilling, Tunneling | ||
| High Light: | KNSH110 dth bits and hammers,PS110 dth bits and hammers,PS110 hammer dth |
||

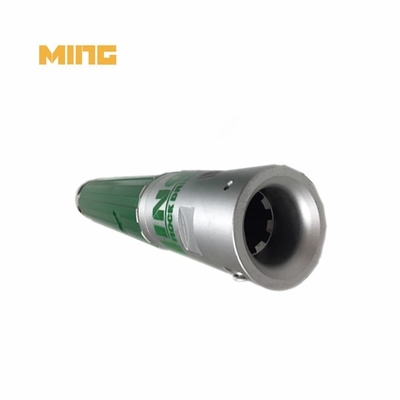

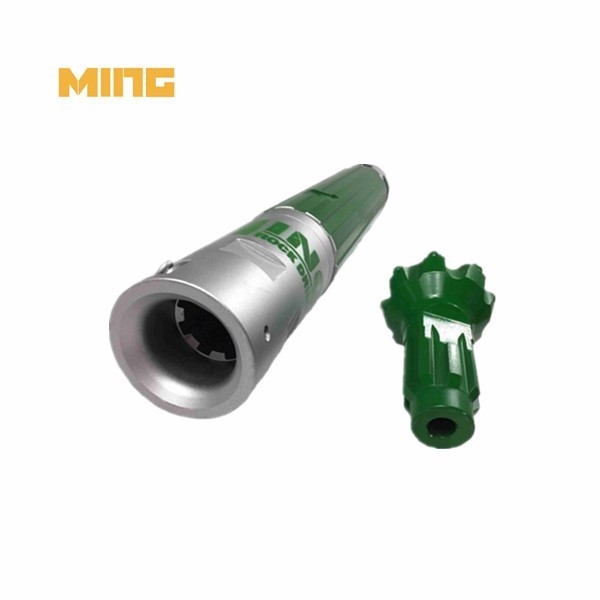

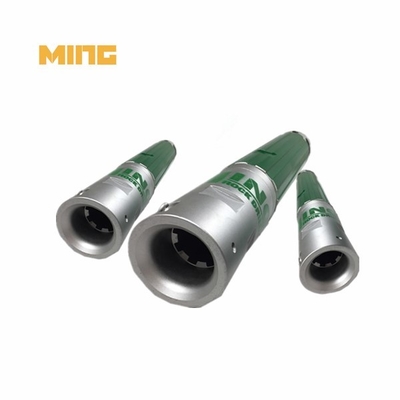

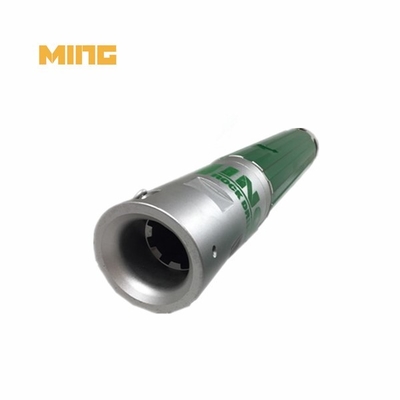

Product name: Russian spline connection PS110 DTH hammer for KNSH110
Russian spline DTH hammer description:
Product category: Russian spline DTH hammer
Matched hammer: Hammer PS110
Connection thread: Spline
Impact power: 3.2
Working pressure(bar): 7~11
Outer diameter(mm): 103
Weight(KGS): 25.6
Bit diameter recommend(mm): 110~140
Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.
Russian spline DTH hammer is most popular in Russian, Asia, and some east Asia country.
Russian spline DTH hammer technical parameter:
| Model |
OD (mm) |
Length(mm) | Impact power horse |
Connection Thread |
Working pressure (Bar) |
Air consumption (M3/min) |
Weight (KG) |
Bit diameter recommend(mm) |
| MH110PB | 98 | 662 | 2.8 | F72*10 BOX | 7~11 | 7~12 | 24.5 | 110-140 |
| MH 130PB | 116 | 681 | 4 | F72*10 BOX | 7~11 | 8~14 | 35.1 | 130-160 |
| MH PS110 | 103 | 670 | 3.2 | F72*10 BOX | 7~11 | 7~12 | 25.6 | 110-140 |
How to order:
Shank Type + Top Sub Thread
Kingdrilling Service
1.Pre-sale service:
If demand, assist clients to get rich and generous returns on their investments.Select DTH tools model.Design and manufacture down the hole products according to client's requirement.
2.Services during the sale:
Assist clients to draft solving plans.
Pre-check and accept Rock drill products ahead of delivery .
3.After-sale services:
Our sales team will response for your question within 24 hours (Holidays Excluded)
Technical Support will be available in any time.
Free replacement can be provided once the failure confirmed caused by our product quality.
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What are mining drill bits made of?
Located at the tip of the drillstring, below the drill collar and the drill pipe, the drill bit is a rotating apparatus that usually consists of two or three cones made up of the hardest of materials (usually steel, tungsten carbide, and/or synthetic or natural diamonds) and sharp teeth that cut into the rock.
3. What is percussion drilling method?
Percussion drilling is the manual drilling technique that was used in the first well drilled. In this drilling technique, a hammering bit is attached to a long cable that is then lowered into a wide open hole.
4. How does DTH system work?
DTH is an encrypted transmission that travels to the consumer directly through a satellite. DTH transmission is received directly by the consumer at his end through the small dish antenna. A set-top box, unlike the regular cable connection, decodes the encrypted transmission
5. Can you directional bore through rock?
One of the most significant milestones in the evolution of HDD, however, was the development of the technology. As technology has advanced, midsize drilling equipment now has the capability of effectively drilling and steering in rock.
