Product Details:
|
| Type: | DTH Hammer | Machine Type: | Drilling Tool |
|---|---|---|---|
| Use: | DTH Drilling | Processing Type: | Forging |
| Material: | Carbon Steel | Application: | Quarry |
| Color: | Blue,Gold,Red,Golden,blue Or Customized | Advantage: | High Performance,High Wear Resistant |
| Product Name: | Rock Drilling Dth Bits For Minging And Water Well | Usage: | Water Well |
| Connect Thread: | API 2 3/8" API 3 1/2" API 4 1/2" API 6 5/8" REG,API 2 3/8" Reg-6 5/8"Reg | Air Pressure: | High Pressure 1.0-2.5 Mpa |
| Drilling Hole Diameter: | 85mm-305mm | Hole Range: | 76-254mm |
| High Light: | SD8 dth hammer bits,Custom dth hammer bits,SD8 down hole hammer drill bits |
||

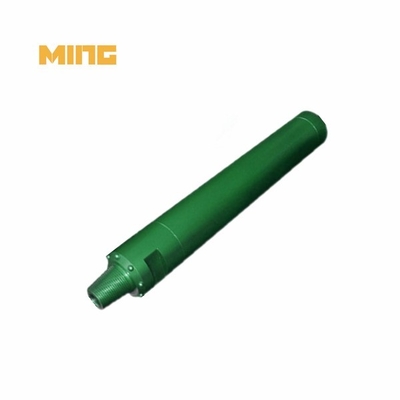

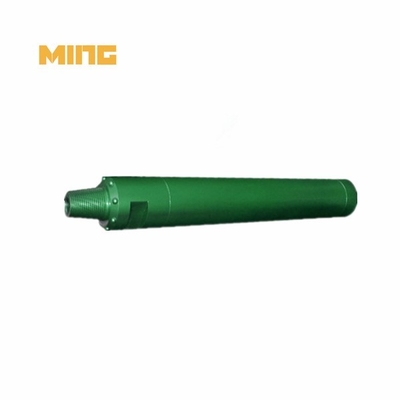

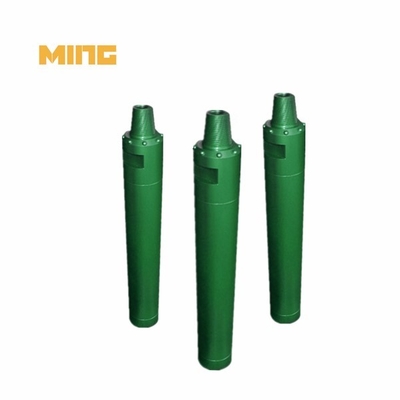

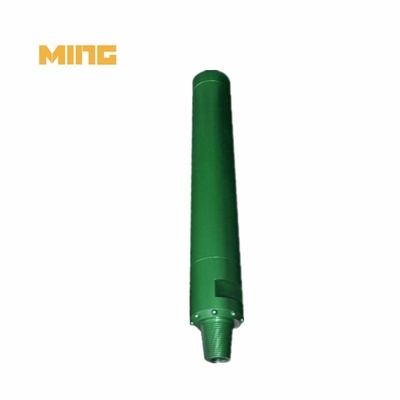

Product name: 8inch high air pressure DTH drill hammer with SD8 shank for mining and quarrying
Product category: Drilling rig accessories
Matched hammer: Hammer COP44
Connection thread: API4-1/2"REG
Working pressure(bar): 10~25
Outer diameter(mm): 180
Weight(KGS): 174
Bit diameter recommend(mm): 203~245
High air pressure DTH hammer with SD8 shank details:
Kingdrilling drilling solutions are designed to deliver industry-leading returns in sample quality and drilling productivity in the exploration for gold, silver, platinum, copper, nickel, iron ore, and other base metals.
Supported by on-site support and consultation from our expert regional teams, kingdrilling systems have earned their reputation as The Driller’s Choice.
High air pressure DTH hammer with SD8 shank technical parameters:
| Model |
OD (mm) |
Hole range(mm) |
Length (mm) |
Connection Thread |
Working pressure (Mpa) |
Air Consumption | Weight (Kg) |
||
| MH40SD | 99 | 110~135 | 1012 | API2-3/8"REG | 1.2~2.0 |
1.0Mpa- 6m3/min |
1.8Mpa- 9m3/min |
2.4Mpa- 14m3/min |
40 |
| MH50SD | 125 | 155~190 | 1090 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 1.3~2.3 |
1.0Mpa- 7m3/min |
1.8Mpa- 14m3/min |
2.4Mpa- 19m3/min |
70 |
| MH60SD | 146 | 155~203 | 1182 | API3-1/2"REG | 1.5~2.5 |
1.0Mpa- 9m3/min |
1.8Mpa- 18m3/min |
2.4Mpa -26m3/min |
90 |
| MH80SD | 180 | 195~254 | 1330 | API4-1/2"REG | 1.5~3.0 |
1.0Mpa- 12m3/min |
1.8Mpa- 22m3/min |
2.4Mpa- 28m3/min |
174 |
| MH100SD | 226 | 254~311 | 1525 | API6-5/8"REG | 2.0~3.5 |
1.0Mpa- 22m3/min |
1.8Mpa- 40m3/min |
2.4Mpa- 65m3/min |
316 |
| MH120SD | 275 | 305~445 | 1860 | API6-5/8"REG | 2.0~3.5 |
1.0Mpa- 28m3/min |
1.8Mpa- 50m3/min |
2.4Mpa- 71m3/min |
480 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What type of drill is best for stone?
Drilling through stone, brick, granite, and even marble is possible, but it takes a tough drill bit made of hard metal to do it. Kingdrilling drill bits are specifically designed to tackle stone and can bore through these hard surfaces with ease.
3. Can you drill through cobblestone?
Cobble is extremely hard and very difficult to cut, making directional drilling difficult. During drilling, cobble pieces move and therefore rock bits cannot penetrate them because of the constant movement; instead of being cut, pieces of cobble roll away and do not stay in place.
