Product Details:
|
| Type: | Drilling Hammer | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Use: | DTH Drilling | Processing Type: | Forging |
| Material: | Carbon Steel | Application: | Mining Or Welling Drilling |
| Color: | Blue,Gold,Red,Golden,blue Or Customized | Advantage: | High Performance And Factory Price |
| Product Name: | Rock Drilling Dth Bits For Minging And Water Well | Usage: | Hole Drilling |
| Connect Thread: | API 2 3/8" API 3 1/2" API 4 1/2" API 6 5/8" REG | Air Pressure: | High Pressure 1.0-2.5 Mpa |
| Drilling Hole Diameter: | 85mm-305mm | ||
| High Light: | 6inch Pneumatic DTH Hammer,SD6 Pneumatic DTH Hammer,6inch button bit for rock drilling |
||

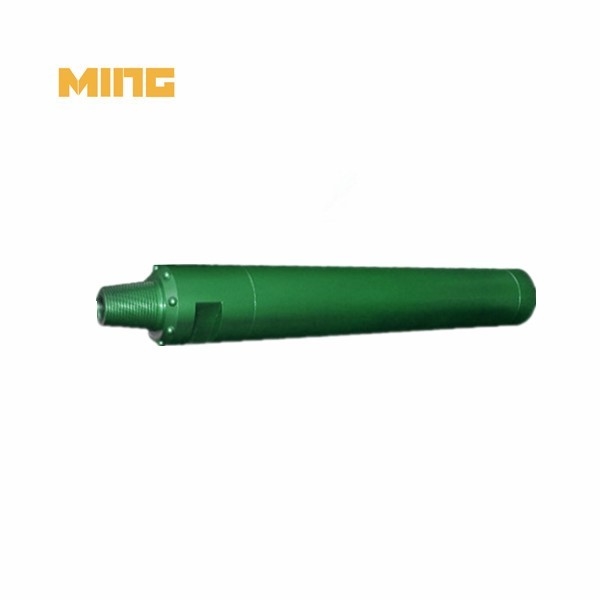

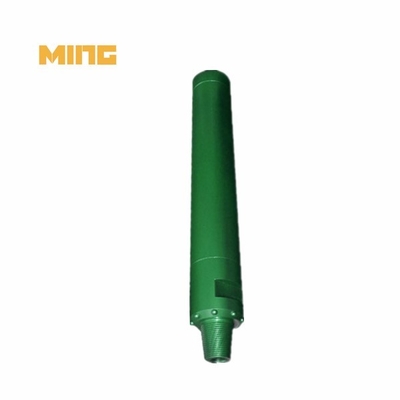

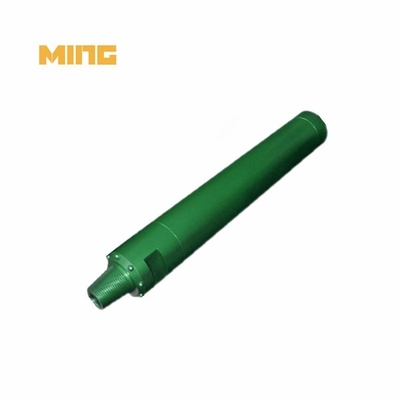

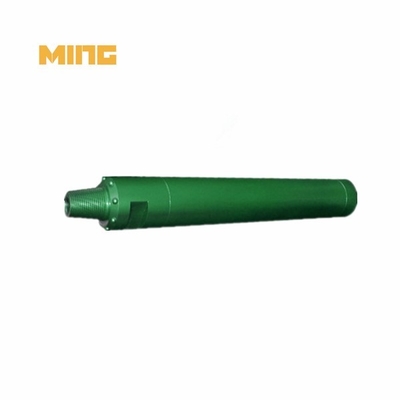

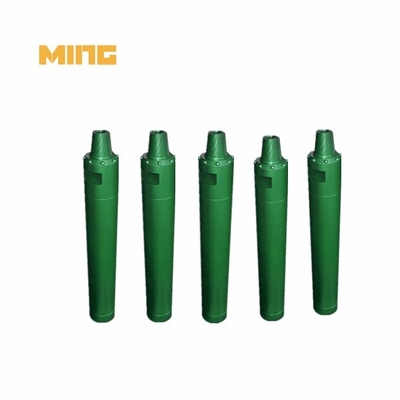

Product name: 6inch high air pressure DTH drill hammer with SD6 shank for mining exploration drilling
Product category: Drilling rig accessories
Matched hammer: Hammer SD6
Connection thread: API3-1/2"REG
Working pressure(bar): 10~25
Outer diameter(mm): 146
Weight(KGS): 90
Bit diameter recommend(mm): 165~190
High air pressure DTH hammer with SD6 shank details:
Rock drilling tools manufacturer KINGDRILLING DTH hammers are available in sizes from 2" to 33" for Down The Hole hammer bits are available in sizes from 2" to 48", with all shanks, multiple face, and with a variety of tungsten carbide button styles to suit a wide variety of drilling conditions and rock formation.
High air pressure DTH hammer with SD6 shank technical parameters:
| Model |
OD (mm) |
Hole range(mm) |
Length (mm) |
Connection Thread |
Working pressure (Mpa) |
Air Consumption | Weight (Kg) |
||
| MH40SD | 99 | 110~135 | 1012 | API2-3/8"REG | 1.2~2.0 |
1.0Mpa- 6m3/min |
1.8Mpa- 9m3/min |
2.4Mpa- 14m3/min |
40 |
| MH50SD | 125 | 155~190 | 1090 | API2-3/8"REG/API2-7/8"IF/API3-1/2"REG | 1.3~2.3 |
1.0Mpa- 7m3/min |
1.8Mpa- 14m3/min |
2.4Mpa- 19m3/min |
70 |
| MH60SD | 146 | 155~203 | 1182 | API3-1/2"REG | 1.5~2.5 |
1.0Mpa- 9m3/min |
1.8Mpa- 18m3/min |
2.4Mpa -26m3/min |
90 |
| MH80SD | 180 | 195~254 | 1330 | API4-1/2"REG | 1.5~3.0 |
1.0Mpa- 12m3/min |
1.8Mpa- 22m3/min |
2.4Mpa- 28m3/min |
174 |
| MH100SD | 226 | 254~311 | 1525 | API6-5/8"REG | 2.0~3.5 |
1.0Mpa- 22m3/min |
1.8Mpa- 40m3/min |
2.4Mpa- 65m3/min |
316 |
| MH120SD | 275 | 305~445 | 1860 | API6-5/8"REG | 2.0~3.5 |
1.0Mpa- 28m3/min |
1.8Mpa- 50m3/min |
2.4Mpa- 71m3/min |
480 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
FAQ:
1. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. What is rock drilling?
Rock drilling tools include those used for oil and natural gas exploration, mining, construction, and all other industrial operations that need to excavate or drill through natural rocks, concrete, and masonry.
3. How does DTH system work?
DTH is an encrypted transmission that travels to the consumer directly through a satellite. DTH transmission is received directly by the consumer at his end through the small dish antenna. A set-top box, unlike the regular cable connection, decodes the encrypted transmission.
