Product Details:
|
| Type: | Drilling Hammer | Machine Type: | Drilling Tool |
|---|---|---|---|
| Use: | DTH Drilling | Processing Type: | Forging |
| Material: | Carbon Steel | Application: | Rock Drilling |
| Color: | Blue,Gold,Red,Golden,blue Or Customized | Advantage: | High Performance,high Performance And Factory Price |
| Product Name: | Rock Drilling Dth Bits For Minging And Water Well | Usage: | Water Well |
| Connect Thread: | API 2 3/8" API 3 1/2" API 4 1/2" API 6 5/8" REG | Air Pressure: | High Pressure 1.0-2.5 Mpa |
| High Light: | 24 Inch dth bits,Pneumatic dth bits,Pneumatic down the hole hammer |
||

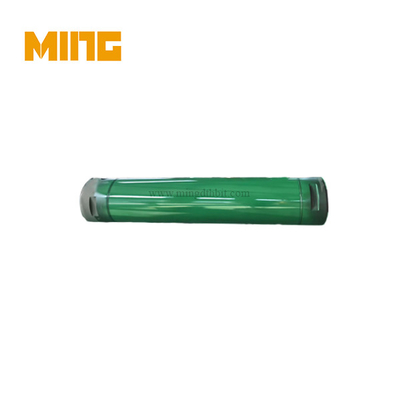

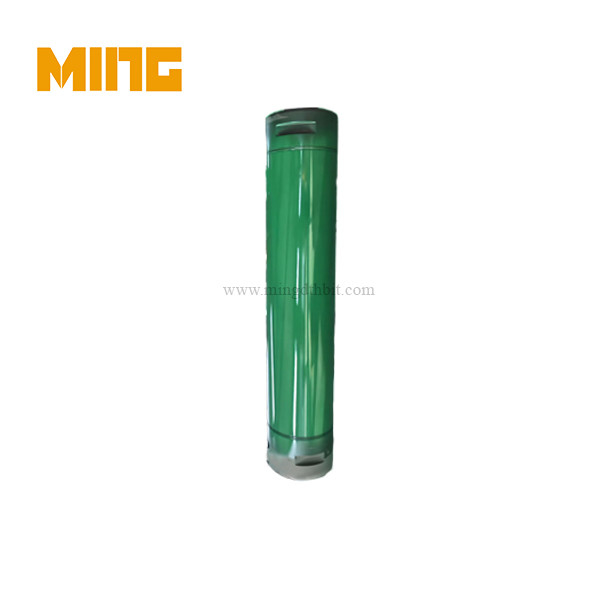

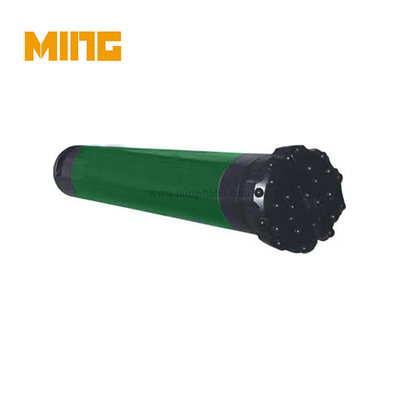

Product name: Reinforced 24 inch high air pressure pneumatic dth hammer with NUMA 240S shank for 3.foundation and piling drilling
Connection thread: 120H HEX
Working pressure(bar): 7~25
Outer diameter(mm): 525
Weight(KGS): 3200
Bit diameter recommend(mm): 860~1100
High air pressure DTH hammer with NUMA240S shank details:
Kingdrilling has become The Driller’s Choice for some of the world’s small and middle mining projects, thanks to a reliable quality and high cost performance that can supply and service Kingdrilling products in even the most remote and inaccessible parts of the world.
For these customers, Kingdrilling offers a complete range of industry-leading drilling products for exploration, mining, DTH, Piling, water well drilling and blasting operations.
This strong supply chain is backed up by Kingdrilling’s dedication to its AIM principle: reliable, implement and responsibility. Using this, we are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.
Kingdrilling DTH hammer feature:
1. Patented innovation to ensure maximum energy transfer
2. Simplified design for easier servicing and higher reliability
3. high-frequency design for smoother operation
4. Multi-start threads on backhead and chuck for easy coupling/uncoupling
5. Specialised heat-treatment hardening for critical components for maximum longevity
High air pressure DTH hammer with NUMA240S shank technical parameters:
| Model | OD(mm) | Hole range(mm) | Length(mm) | Connection Thread |
Working pressure(Bar) | Air Consumption CFM |
Weight(Kg) |
| MH120P | 275 | 302~460 | 1880 | API6-5/8”REG | 7~25 | 700--1925 | 700 |
| MH180P | 410 | 460~660 | 2210 | API8-5/8”REG | 7~25 | 1200--3000 | 1700 |
| MH240P | 525 | 610~860 | 2300 | API8-5/8”REG | 7~25 | 2000--7000 | 2680 |
| MH240PS | 525 | 860-1100 | 2600 | 120H HEX | 7~25 | 2000--7000 | 3200 |
| MH330P | 718 | 900~1200 | 2100 | 240 HEX | 7~25 | 2625--7700 | 5500 |
How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)
Kingdrilling rock drill tools application:
1. mininig,quarry blasting hole borehole drilling
2. water well,depep hole well,oil and gas open hole drilling
3. foundation and piling drilling
4. mininig,quarry blasting hole borehole drilling
FAQ:
1.What is DTH Bit?
Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground.
2. What is DTH hammer?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
3. How does DTH drilling work?
A down-the-hole drill, usually called DTH by most professionals, is basically a jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small cuttings and dust that are evacuated by a fluid (air, water or drilling mud).
