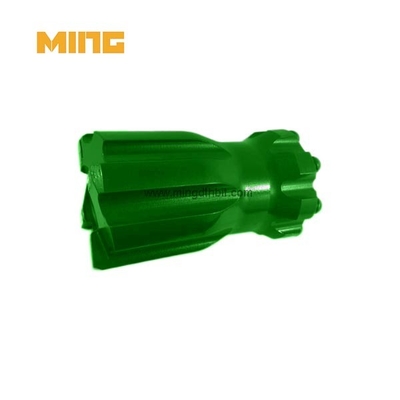

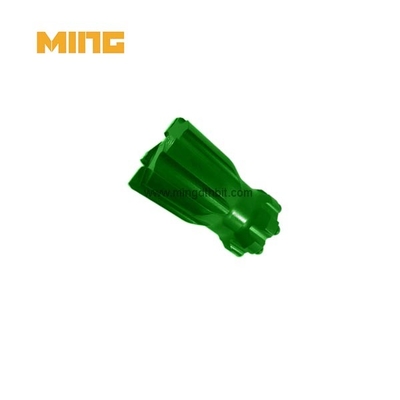

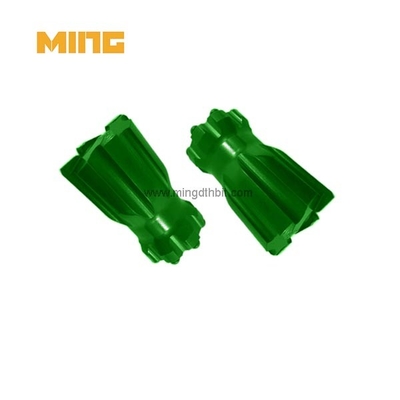

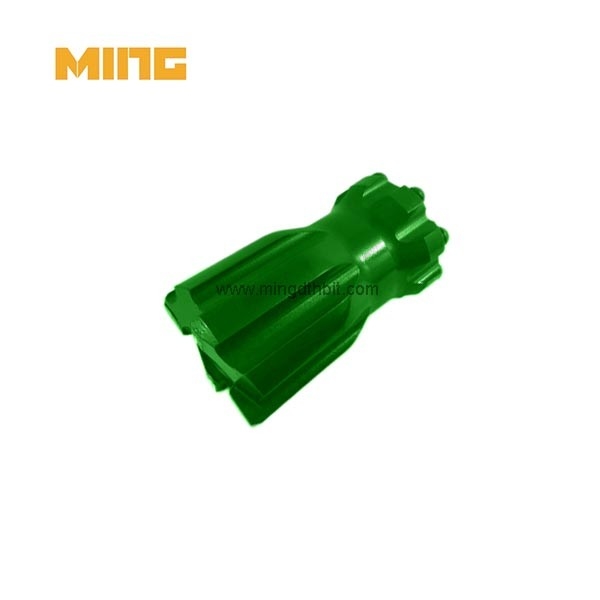

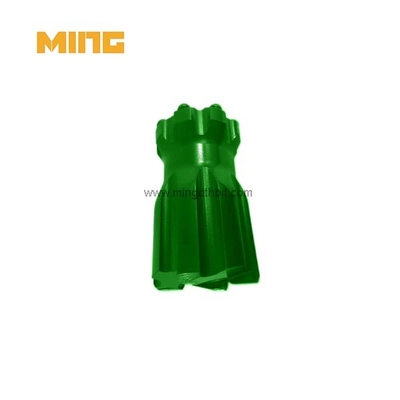

127mm Retract DTH Hammer Thread Button Bits Tools T51

Product name: T51 diameter 127mm retract thread top hammer drilling tools
Product category: DTH thread button drill bit
Matched connection: T51
Diameter: 127mm

other diameter: 89mm, 102mm, 115mm, 127mm, 140mm,152mm
Skirt body: retrac, and normal,
Face: flat, concave
Carbide: spherical, ballistic,semiballistic
Used: in drifting and tunneling, dimensional natural stone quarrying
Matched: shank rod, and MM and MF Hex drifter rod

KINGDRILLING DTH thread button bit description:

In Top Hammer Drilling the hammer produces a percussive force on the drill rods or tubes, which is transmitted to the drill bit. The feed device is usually attached with a hinged boom to a mobile unit.

They are most used in drifting and tunneling, dimensional natural stone quarrying

KINGDRILLING DTH thread button bit technical parameters:

T51 System DTH thread button bit
Bits		Diameter		Buttons.mm		Angle	Flushing hole
		mm	in	Front No Size	Gauge NO Size		Front	Gauge
Button bit,Flat face
		89	3 1/2"	5x12	8x 12	35°	2	2
		89	3 1/2"	6x 12	8x 12	35°	2	2
		102	4"	4x 14	8x 14	35°	2	2
		89	3 1/2"	5x 12	8x 12	35°	2	2
		102	4"	6x 14	8x 14	35°	2	1
		115	4 1/2"	6x 14	8x 14	35°	2	1
		89	3 1/2"	2x 10	8x 12	35°	4	-
				4x 12
		89	3 1/2"	5x 12	8x 12	35°	4	-
		102	4"	6x 12	8x 13	35°	4	-
		102	4"	6x 12	8x 14	35°	4	-
		115	4 1/2"	6x 14	8x 14	35°	4	-
		115	4 1/2"	6x 13	8x 14	35°	4	-
		127	5"	7x 14	8x 14	35°	4	-
		140	5 1/2"	7x 16	8x 16	35°	4	-
		152	6"	8x 16	8x 16	35°	4	-
		89	3 1/2"	5x12	8x 12	35°	2	2
		89	3 1/2"	6x 12	8x 12	35°	2	2
		102	4"	6x 14	8x 14	35°	2	2
		89	3 1/2"	5x12	8x 12	35°	2	2
		102	4"	6x 13	8x 14	35°	2	1
		115	4 1/2"	6x 13	8x 14	35°	2	1
		89	3 1/2"	6x12	9x 12	35°	3	-
		102	4"	7x 12	9x 12	35°	3	-
		102	4"	7x 12	9x 13	35°	3	-
		115	4 1/2"	7x 13	9x 13	35°	3	-
		115	4 1/2"	6x 14	9x 14	35°	3	-
		127	5"	8x 14	9x 14	35°	3	-
		140	5 1/2"	10x 14	9x 16	35°	3	-
Button bit,Retrac,Drop center
		89	3 1/2"	2x 10	8x 12	35°	4	-
				4x 12
		89	3 1/2"	5x12	8x 12	35°	4	-
		102	4"	6x 12	8x 13	35°	4	-
		102	4"	6x 12	8x 14	35°	4	-
		115	4 1/2"	6x 14	8x 14	35°	4	-
		115	4 1/2"	6x 13	8x 14	35°	4	-
		127	5"	7x 14	8x 16	35°	4	-
		140	5 1/2"6"	7x 16	8x 16	35°	4	-
		152	6"	8x 16	8x 16	35°	4	-

Order Guide: Order Guide: Diameter + Thread + Skirt Shape + Face Design + Insert Shape

Top hammer drilling feature

1. The most suitable for hole diameter between 25–127 mm.
2. Generally, the hole depth is less than 25 meters.
3. Adapt to a stable and uniform hard rock.
4. The slag flushing medium is compressed air or water.
5. High efficiency in shallow holes drilling, the deeper the lower efficiency.
6. Most easily to skew in these three drilling methods.

Kingdrilling rock drill tools application:

1. Mining and quarrying drilling

2. Mining exploration drilling

3. Piling and foundation drilling

4. Water well drilling

5. Geothermal drilling

6. Horizontal directional drilling

FAQ:

1. What is top hammer drilling?

In Top Hammer Drilling the hammer produces a percussive force on the drill rods or tubes, which is transmitted to the drill bit. The feed device is usually attached with a hinged boom to a mobile unit.

2. Is top hammer drilling vs down-the-hole drilling?

The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method's activity is concentrated at the very top of the drill string.

3. How does the Top Hammer Drilling work?

The percussive force of the top hammer drilling produced by the piston of the pump in the hydraulic drilling rig, it is transmitted to the drill bit via shank adaptor and drill pipe, This is the difference between DTH drilling. Meanwhile, the percussion system drives the drilling system rotation. When the stress wave reaches the drill bit, the energy is transmitted to the rock in the form of bit penetration. The combination of these functions enables drilling holes into the hard rock, and the air compressor only performs dust removal and slagging in top hammer drilling.

The combination of these functions enables drilling holes into the hard rock, and the air compressor only performs dust removal and slagging in top hammer drilling.

Impact energy multiplied by impact frequency together creates the percussive output of the drifter. However, usually, top hammer drilling used for hole diameter maximum 127mm, and hole depth less than 20M, which in high efficiency.

4. What is DTH in mining?

Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
