Product Details:
|
| Certification: | ISO9001 | Processing Type: | Forging |
|---|---|---|---|
| Machine Type: | Downhole Tools | Use: | Blasting |
| Type: | Drill Bit | Material: | Tungsten Carbide & Steel |
| Color: | Blue,Golden,other Color Available,Blue And Yellow | Product Name: | Factory Hot Selling DTH Drill Bits |
| Application: | Rock Drilling | Advantage: | High Performance Rock Drill Bit |
| Packing: | Wooden Case | Usage: | Hole Drilling |
| Face: | Flat / Convex / Concave | Standard: | ISO-9001 |
| Key Words: | Dth Bit | ||
| High Light: | 1inch tapered button bits,OEM tapered button bits,Tapered 1 inch rock drill bit |
||

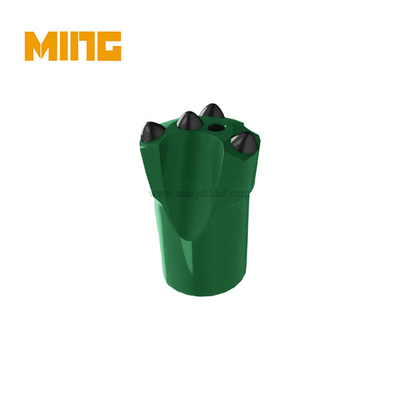

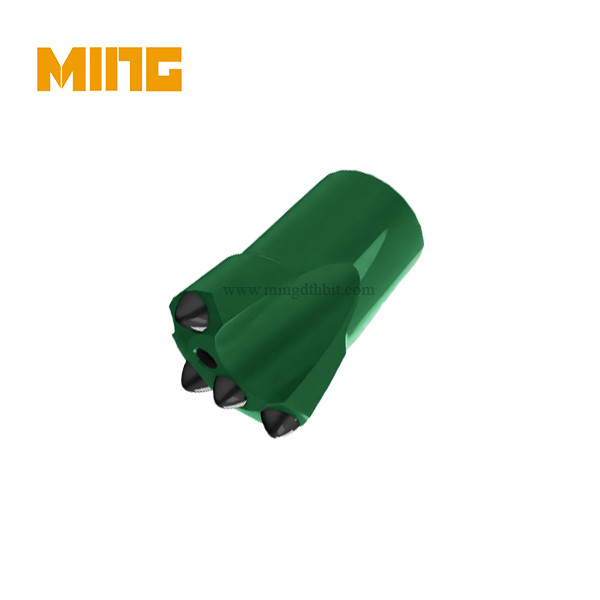

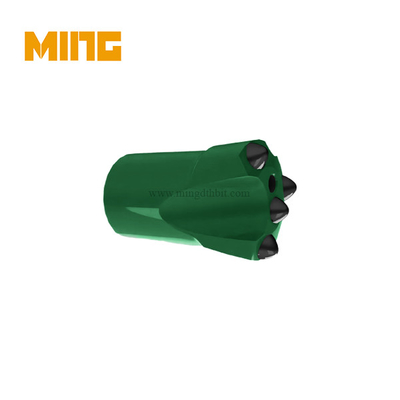

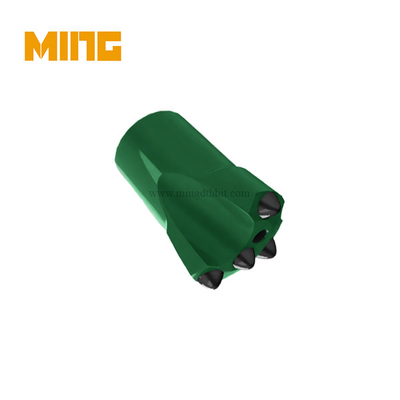

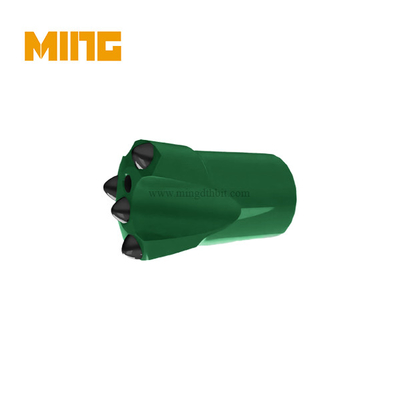

Product name: 7 Degree 32mm tapered drilling tools
Product category: DTH taper drill bit
Matched connection: 7 degree taper
Diameter: 32mm
Carbide: spherical, ballistic,semiballistic
KINGDRILLING DTH taper drill bit description:
Taper button bit as small hole bit is different with thread button bit as long hole bit to use taper rod to be used for air leg or hand held jack hammer driller in quarrying,and mining.
(1)Connect shank Size: Φ19, Φ22, Φ25 at most
(2)Bit Diameter:Diameter 32mm,34mm,36mm, 38mm,40mm
(3)Tapered connection: 6 degree, 7 degree, 11 degree, 12 degree etc.
Product application:
Tapered drill bits are used in granite and marble quarry, gold mine, railway, tunnel, etc. for drilling
| Model | Bit Dia.(mm) | Tip size (mm) | Taper | Weight(kg) |
| MZ0732-7 | 32 | 5×7 2×7 | 7" | 0.3 |
| MZ0833-7 | 33 | 6×7 2×7 | 7" | 0.4 |
| MZ0735-7 | 35 | 5×8 2×7 | 7" | 0.4 |
| MZ0737-7 | 37 | 5×8 2×8 | 7" | 0.4 |
| MZ0438-7 | 38 | 3×9 1×9 | 7" | 0.3 |
| MZ0440-7 | 40 | 3×9 1×9 | 7" | 0.4 |
| MZ0741-7 | 41 | 5×9 2×7 | 7" | 0.5 |
| MZ0442-7 | 42 | 3×9 1×9 | 7" | 0.4 |
| MZ0543-7 | 43 | 3×9 2×9 | 7" | 0.4 |
| MZ0528-11 | 28 | 4×7 1×7 | 11" | 0.2 |
| MZ0530-11 | 30 | 4×7 1×7 | 11" | 0.2 |
| MZ0532-11 | 32 | 3×8 2×7 | 11" | 0.2 |
| MZ0632-11 | 32 | 4×7 2×7 | 11" | 0.2 |
| MZ0732-11 | 32 | 5×7 2×7 | 11" | 0.2 |
| MZ0734-11 | 34 | 5×8 2×7 | 11" | 0.3 |
| MZ0536-11 | 36 | 3×8 2×8 | 11" | 0.3 |
| MZ0636-11 | 36 | 4×8 2×8 | 11" | 0.3 |
| MZ0736-11 | 36 | 5×8 2×8 | 11" | 0.3 |
| MZ0738-11 | 38 | 5×8 2×8 | 11" | 0.4 |
| MZ0741-11 | 41 | 5×9 2×8 | 11" | 0.4 |
| MZ0732-12 | 32 | 5×7 2×7 | 12" | 0.3 |
| MZ0735-12 | 35 | 5×8 2×7 | 12" | 0.4 |
| MZ0737-12 | 37 | 5×8 2×8 | 12" | 0.4 |
| MZ0741-12 | 41 | 5×9 2×8 | 12" | 0.5 |
| MZ0743-12 | 43 | 5×9 2×8 | 12" | 0.5 |
| MZ0745-12 | 45 | 5×9 2×9 | 12" | 0.5 |
Order Guide: Bit Diameter + Taper Degree + Skirt Length + Insert Shape
Kingdrilling rock drill tools application:
1. Mining and quarrying drilling
2. Mining exploration drilling
3. Piling and foundation drilling
4. Water well drilling
5. Geothermal drilling
6. Horizontal directional drilling
FAQ:
1. What is top hammer drilling?
In Top Hammer Drilling the hammer produces a percussive force on the drill rods or tubes, which is transmitted to the drill bit. The feed device is usually attached with a hinged boom to a mobile unit.
2. Is top hammer drilling vs down-the-hole drilling?
The primary difference between the top hammer and down-the-hole drilling methods is where the hammer is attached. The hammer in the industrial equipment makes contact with the bit during the down-the-hole drilling method. The top hammer drilling method's activity is concentrated at the very top of the drill string.
3. How does the Top Hammer Drilling work?
The percussive force of the top hammer drilling produced by the piston of the pump in the hydraulic drilling rig, it is transmitted to the drill bit via shank adaptor and drill pipe, This is the difference between DTH drilling. Meanwhile, the percussion system drives the drilling system rotation. When the stress wave reaches the drill bit, the energy is transmitted to the rock in the form of bit penetration. The combination of these functions enables drilling holes into the hard rock, and the air compressor only performs dust removal and slagging in top hammer drilling.
The combination of these functions enables drilling holes into the hard rock, and the air compressor only performs dust removal and slagging in top hammer drilling.
Impact energy multiplied by impact frequency together creates the percussive output of the drifter. However, usually, top hammer drilling used for hole diameter maximum 127mm, and hole depth less than 20M, which in high efficiency.
4. What is a button bit?
Button bits, or roller cones, have rotating cones that contain tungsten carbide inserts. Tricone, or three cone bits, are the most common; however, manufacturers continue to make two cone and one cone bits.
5. How to choose the suitable head face of the DTH drill bit?
a. Concave:
Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.
b. Convex:
Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.
c. Flat:
Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
