Product Details:
|
| Material: | Carbon Steel | Use: | Well Drilling |
|---|---|---|---|
| Machine Type: | Drilling | Processing Type: | Forging |
| Color: | Gold,Required,Yellow,Red | Usage: | Hole Drilling,Mining&Construction&Water Well Drilling |
| Advantage: | High Performance | Diameter: | 105-146mm |
| Model Type: | CIR HAMMER | Hammer Type: | Overburden Drilling System |
| High Light: | 146mm Overburden Drilling System,Overburden Drilling System MNS,Rock Drilling Bit System |
||

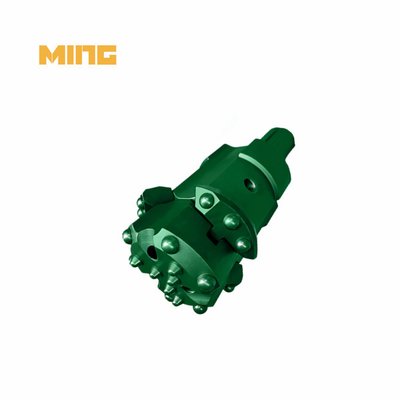

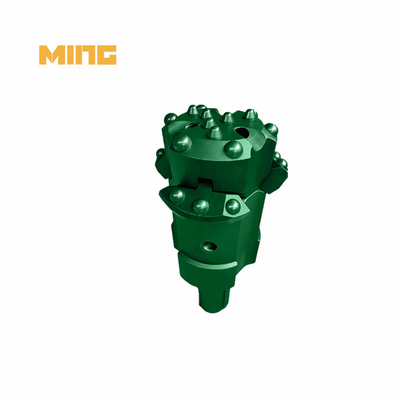

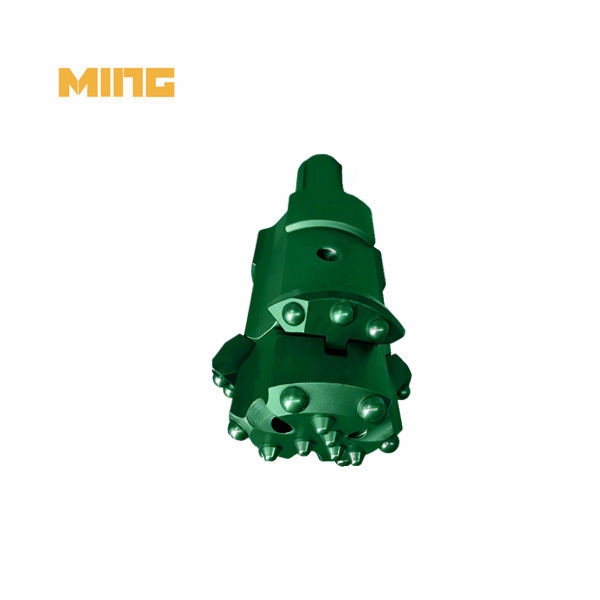

Product Name: 146mm MNS Sliding Concentric Casing Rock Drilling System for Overburden Layers
Product category: MNS Sliding Concentric Casing Bit
Matched hammer: Hammer CIR110
Matched casing pipe OD: 146mm
The Overburden Drilling System typically uses a casing or liner that is advanced into the ground simultaneously with drilling to prevent cave-ins, and to facilitate extraction of samples or installation of various geotechnical instruments. The drilling rig used in the system is usually equipped with special bits that can effectively penetrate the overburden layer and the rock formation underneath.
MNS Sliding five-piece concentric overburden casing drilling system feature:
When the guide bit reaches to the rock stratum, the stabilizer rod and guide bit begin to fold, the reamer bits expand along the sliding chute and start to drill; when finished, the stabilizer rod is lifted, the guide bit is automatically separated by gravity and the reamer bits are automatically gathered, thus lifted from the bottom of the hole. This drilling system is mainly applied for 108-323mm.
MNS Sliding five-piece concentric overburden casing drilling system technical data:
| 型号 | 头部直径 head dia.(mm) |
钻孔直径 | 挂台直径 Shank step dia.(mm) |
套管直径 | 扩块 | 花 键 |
系统重量 Weight (KG) |
| Model | Hole dia (mm) |
Casing pipe OD |
Wings (PCS) |
Spline | |||
| MNS5E108 | 84 | 122 | 93 | 108 | 2 | CIR90/HD35/DHD3.5 | 9/10 |
| MNS5E127 | 101 | 145 | 110 | 127 | 3 | CIR110/HD45/DHD340 | 12.5/14 |
| MNS5E146 | 120 | 164 | 129 | 146 | 3 | CIR110/HD45/DHD340 | 19/20.5 |
| MNS5E168 | 137 | 184 | 147 | 168 | 3 | CIR110/HD55/DHD350 | 27.5/34.5 |
| MNS5E178 | 146 | 193 | 156 | 178 | 3 | CIR150/HD55/DHD350 | 33.5/35.5 |
| MNS5E194 | 161 | 214 | 171 | 194 | 3 | CIR150/HD65/DHD360 | 45/51.5 |
| MNS5E219 | 189 | 235 | 200 | 219 | 3 | CIR150/HD65/DHD360 | 56/62.5 |
| MNS5E245 | 208 | 270 | 219 | 245 | 3 | CIR170/HD65/DHD360 | 97/102 |
| MNS5E273 | 240 | 293 | 251 | 273 | 3 | HD85/DHD380 | 142 |
| MNS5E323 | 280 | 345 | 296 | 323 | 3 | HD85/DHD380 | 200 |
Order Guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
FAQ:
1. How to order the products?
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
2. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4.How deep can a water well be drilled?
Drilling a Water Well for household use will usually range from about 100 feet to 500 feet deep, but... When drilling a new well for your home or business, the depth of the well depends on the geology and underground water levels of the area.
