Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Mining; Tunneling |
|---|---|---|---|
| Type: | Symmetrix Casing | Processing Type: | Machining Process |
| Product Name: | Concentric Casing System | Color: | Gree,Request |
| Application: | Mining | Usage: | Mining& |
| Advantage: | Widely Used Hard Rocks | Model Type: | T45 |
| Item: | Symmetric Casing Drilling Bit | ||
| High Light: | 139mm Symmetric Casing Drilling Bit,Symmetric Casing Drilling Bit With T45,overburden drill bit For Tunneling |
||

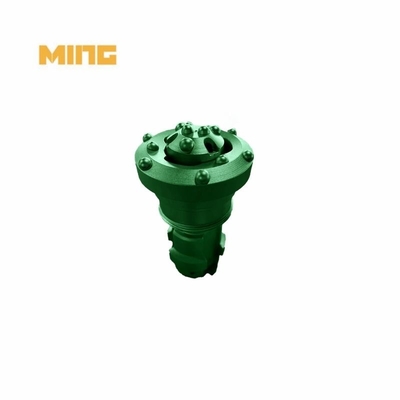

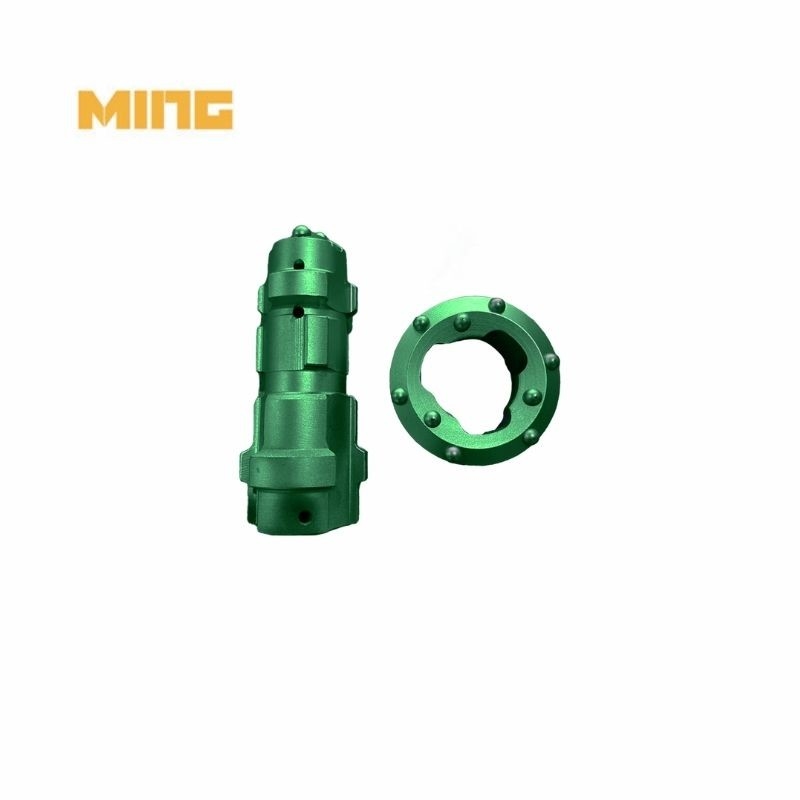

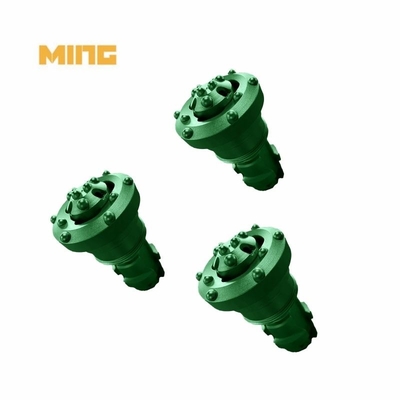

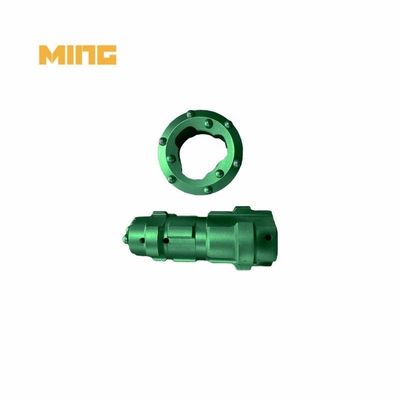

Product name: 139mm symmetric casing drilling bit with T45 thread connection for tunneling
Product category: Symmetric casing drilling system
Matched connection: T45
Matched casing pipe OD: 139mm
MING Ring Bit System can be used for drilling operations such as foundation building, piling construction, water well and geothermal drilling, tunneling, and horizontal drilling in all types of ground conditions.
| Model | External Dia.(mm) | Casing Dia.(OD*ID) | Connection |
| MRING-R 89mm-T32 | 89mm | 89*79 | T32 |
| MRING-R 89mm-T38 | 89mm | 89*79 | T38 |
| MRING-R-114mm-T38 | 114mm | 114*102 | T38 |
| MRING-R-114mm-T45 | 114mm | 114*102 | T45 |
| MRING-R-139mm-T45 | 139mm | 139*127 | T45 |
How to order:
Casing Tube OD & ID + Ring Bit Diameter + Hammer Shank + Maximal Normal Bit Diameter +
Casings and Casing Shoes Installation Method (if by threads, threads standard must be offered)
MIMG MIRNG-R Series advantages.
1. Straight Channels and a High Rate of Penetration
2. Less torque on all types of surfaces
3. Simple Ring Lock and Access System
4. Any angle drilling is necessary.
5. Less Investment and More Defects
FAQ:
1. What is drill casing in mining?
In underground mining, steel casing or steel pipe is used to line holes that have been bored or drilled for rising mains water, utility lines and paste fill, protecting the contents from damage and loss into open voids or broken ground.
2. What distinguishes drill pipe from casing?
The drill pipe frequently rotates the drill bit, which cuts into the rock until it reaches the deposits. In every wellbore, the first step is to drill with drill tubing. Casing refers to the tubing that is installed inside the drilled well to sustain and protect the well stream, also known as the casing pipe.
3. Where does excess material from digging operations go?
Overburden is employed for field contouring, reprocessing, and as a building and road construction aggregate. Clay, tiles, glass, and concrete are all produced using recycled mine waste. After being treated, mine water is used as a coolant, to suppress dust and particulates, and in agriculture and industry.
