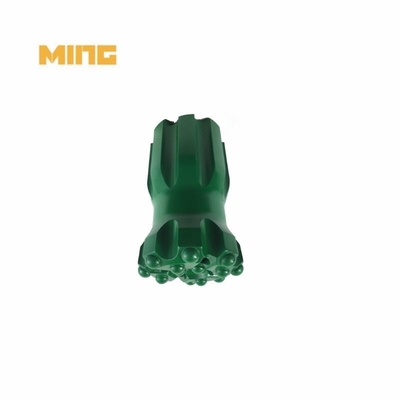

4inch Thread Button Bits Engineering Down The Hole Bits For Top Hammer Drilling 2inch

Large Image : 4inch Thread Button Bits Engineering Down The Hole Bits For Top Hammer Drilling 2inch

Product Details:

Place of Origin:	CHINA
Brand Name:	MING
Certification:	ISO9001
Model Number:	Retrac bit 64mm-T38-MT

Payment & Shipping Terms:

Minimum Order Quantity:	5PCS
Price:	3-999USD/PC
Packaging Details:	WOODEN CASE
Delivery Time:	3-4 WEEKS
Payment Terms:	T/T
Supply Ability:	2000PCS/MON

Contact Now

4inch Thread Button Bits Engineering Down The Hole Bits For Top Hammer Drilling 2inch

Description

Material:	Carbide,Carbon Steel,High Manganese Steel,Tungsten Carbide & Steel	Processing Type:	Forging,cold Pressing
Machine Type:	Drilling Tool,Drilling Equipment	Use:	Well Drilling,Quarry,blasting
Type:	Drill Bit,Carbide Bit,Rock Drilling Tools,Thread Button Bit	Color:	Blue,Gold,Customized,Red
Diameter:	64mm	Application:	Rock Drilling,DTH Drill Bits And Roller Bits,Bench Drilling And Rock Drilling
Product Name:	Thread Drill Bits,89mm T38 T45 T51 Mining Rock Drilling Thread Button Bit,64MM T38 Thread Button Bit	Advantage:	High Wear Resistant,High Performance,Factory Price And High Quality
Usage:	Mining Or Quarry Or Well Drilling,Rock Drilling,Hole Drilling	Thread:	T38,T51,T45,R38,R28
Weight:	2.0kg	Carbide Shape:	Ballistic,spherical,semi-ballistic,Dome
HS:	82071990
Highlight:	4inch Thread Button Bits , Thread Button Bits Engineering , Engineering Down The Hole Bits

Product details:
Kingdrilling rock drilling button bits are widely used in all kinds of mining, drilling, quarrying, engineering, construction, water well drilling, oil exploring drifting and tunneling drilling.
We can supply waveform thread button bits, Trapezoidal thread drill bits, Retrac thread rock drill tools.
4inch Thread Button Bits Engineering Down The Hole Bits For Top Hammer Drilling 2inch 0

Model	Bit Dia.(mm)	Thread	NO. X Button Dia.		NO.Flushing Holes(PCS)		Weight(KG)
Model	Bit Dia.(mm)	Thread	Gauge	Front	Side	Front	Weight(KG)
MTR51F5R32	51	R32	5×11	2×10	2	1	1.2
MTR51F6R32	51	R32	6×10	3×9		3	1.2
MTR57F6R32	57	R32	6×11	3×10		3	1.6
MTR64D6R32	64	R32	6×11	3×11 1×9	1	3	2
MTR64F6T38	64	T38	6×12	3×11	1	2	2
MTR64D8T38	64	T38	8×10	4×10 1×9		4	2
MTR76F6T38	76	T38	6×12	4×11	2	2	3.1
MTR76D8T38	76	T38	8×11	4×11 1×11		4	3.1
MTR76F8T45	76	T45	8×12	4×11	2	2	3.2
MTR76D8T45	76	T45	8×12	4×11 1×11		4	3.2
MTR78D8T38	78	T38	8×12	4×11 1×11		4	3.5
MTR89F8R32	89	R32	8×12	5×11		2	4.1
MTR89D8R32	89	R32	8×12	4×11 2×10		4	4.1
MTR89F8T38	89	T38	8×12	5×12	2	2	4.8
MTR89D8T38	89	T38	8×12	4×11 2×10		4	4.8
MTR89F8T45	89	T45	8×12	6×12	2	2	5.1
MTR89D8T45	89	T45	8×13	4×12 1×12		4	5.1
MTR89F8T51	89	T51	8×12	6×12	2	2	5.1
MTR89D8T51	89	T51	8×13	4×13 1×12		4	5.1
MTR102F8T45	102	T45	8×12	7×12		2	6.5
MTR102F9T45	102	T45	9×13	9×11		3	6.8
MTR102D8T45	102	T45	8×14	4×12 2×11		4	6.8
MTR102F8T51	102	T51	8×12	7×12		2	7.1
MTR102F9T51	102	T51	9×13	9×11		3	6.5
MTR102D8T51	102	T51	8×14	4×12 2×11		4	7.3
MTR105F8T45	105	T45	8×14	6×13		2	7.1
MTR115D8T45	115	T45	8×14	4×13 3×12		4	7.8
MTR115F9T45	115	T45	9×14	10×12		3	7.9
MTR115F9T51	115	T51	9×14	10×12		3	7.9
MTR115F8T51	115	T51	8×14	7×13		2	9.6
MTR115D8T51	115	T51	8×14	4×12 2×12		4	10.2
MTR127F8T45	127	T45	8×14	8×13		2	11
MTR127F9T45	127	T45	9×15	10×13		3	12.3
MTR127F9T51	127	T51	9×15	10×13		3	12.3
MTR127F8T51	127	T51	8×15	8×13		2	12
MTR127D8T51	127	T51	8×14	4×14 4×12		4	12

How to choose the suitable head face of the DTH drill bit?
Concave:
Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.
Convex:
Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.
Flat:
Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.

Product Application:
4inch Thread Button Bits Engineering Down The Hole Bits For Top Hammer Drilling 2inch 1

Transport:

Package and Delivery:
Packed by Carton or Wooden cases.
Delivery:

Goods in stock can be delivered within 5 days.
DTH Bits production time is about 15 days.
DTH Hammer product time is about 30 days.
