105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories

105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories
105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories

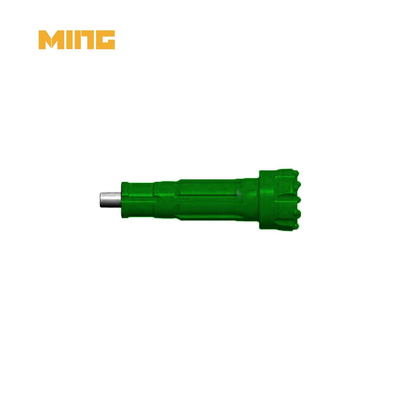

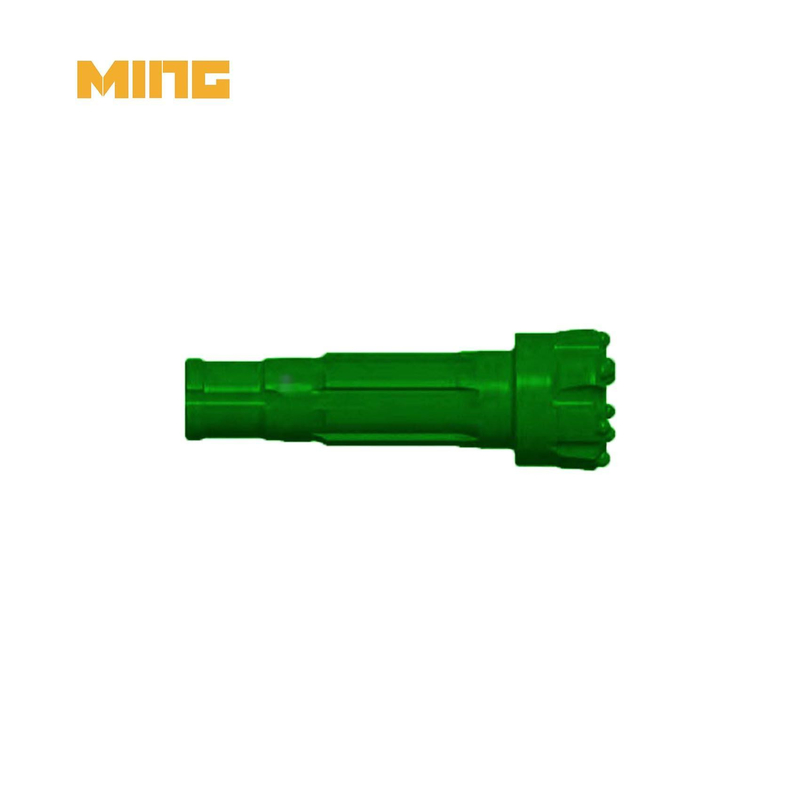

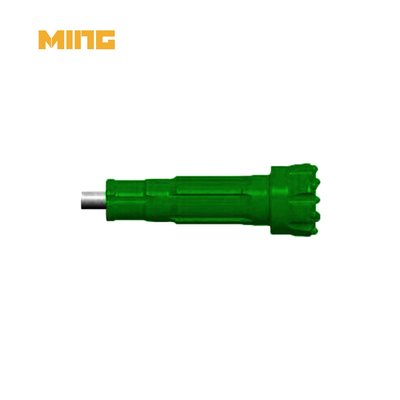

Large Image :  105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories

Product Details:
Place of Origin: CHINA
Brand Name: MING
Certification: ISO9001
Model Number: Bit 105mm-SD4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 99-9999USD/PC
Packaging Details: WOODEN CASE
Delivery Time: 3-4 WEEKS
Payment Terms: T/T
Supply Ability: 20000PCS/MON

105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories

Description
Processing Type: Forging Machine Type: Downhole Tools
Application: Rock Drilling Diameter: 115mm-240mm
Face: Concave,Flat Face Rock Drill Bit,Flat / Convex / Concave Item: Dow The Hole Bit
Key Words: SD Shank Dth Bit
High Light:

105mm DTH Drill Button Bit

,

SD4 Shank DTH Drill Bit

,

Forging DTH Drill Button Bit

Product name: Factory 105mm SD4 shank DTH Drill Button Bit for drilling equipment accessories and Special Tools
Product category: DTH button tools
Matched hammer: Hammer SD4
Diameter: 105mm


KINGDRILLING DTH button bit description:



KINGDRILLING hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a spline drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes. Our variety of Down the Hole (DTH) bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life.



High Air pressure SD shank DTH bit optimized performance:

MING SD Shank DTH Button Bit combines advanced engineering with unmatched performance. Each button on this remarkable tool is strategically positioned to maximize penetration and impact, reducing drilling time and minimizing wear and tear. Experience unparalleled efficiency as you witness increased rates of penetration, allowing you to complete projects in record time.





4 inch high air pressure DTH bits
MDSD4-105 105 6*Φ14 5*Φ13 2 9.0
MDSD4-110 110 7*Φ14 6*Φ13 2 9.5
MDSD4-115 115 7*Φ14 6*Φ13 2 9.8
MDSD4-120 120 8*Φ14 7*Φ13 2 11.5
MDSD4-127 127 8*Φ14 7*Φ13 2 12.3
5 inch high air pressure DTH bits
MDSD5-135 135 7*Φ16 6*Φ14 2 15.5
MDSD5-140 140 7*Φ18 7*Φ14 2 16.0
MDSD5-146 146 8*Φ18 7*Φ14 2 16.5
MDSD5-152 152 8*Φ18 8*Φ14 2 17.0
MDSD5-165 165 8*Φ18 8*Φ16 2 18.0
6 inch high air pressure DTH bits
MDSD6-152 152 8*Φ18 7*Φ16 2 26.0
MDSD6-165 165 8*Φ18 8*Φ16 2 27.0
MDSD6-171 171 8*Φ18 8*Φ16 2 29.0
MDSD6-190 190 9*Φ18 9*Φ16 3 32.0
MDSD6-203 203 9*Φ18 11*Φ16 3 34.0
8 inch high air pressure DTH bits
MDSD8-203 203 10*Φ18 10*Φ16 2 37.0
MDSD8-216 216 10*Φ18 12*Φ16 2 48.0
MDSD8-241 241 12*Φ18 18*Φ16 2 63.0
MDSD8-254 254 12*Φ18 21*Φ16 3 70.0
MDSD8-305 305 12*Φ18 29*Φ16 4 94.0
10 inch high air pressure DTH bits
MDSD10-254 254 12*Φ18 20*Φ16 3 108.0
MDSD10-305 305 12*Φ18 36*Φ16 4 125.0
MDSD10-311 311 12*Φ18 36*Φ16 4 130.0
MDSD10-318 318 12*Φ18 38*Φ16 4 142.0
MDSD10-330 330 16*Φ18 42*Φ16 4 155.0
12 inch high air pressure DTH bits
MDSD12-305 305 12*Φ18 36*Φ16 4 156.0
MDSD12-311 311 12*Φ18 36*Φ16 4 168.0
MDSD12-330 330 16*Φ18 42*Φ16 4 180.0
MDSD12-356 356 16*Φ19 48*Φ16 4 191.0
MDSD12-381 381 16*Φ19 48*Φ18 4 200.0



Kingdrilling rock drill tools feature:

With the SD Shank DTH Button Bit, the possibilities are limitless. Whether you're drilling for mining, construction, geothermal exploration, or any other industry, this remarkable tool will surpass your expectations. It's time to unlock the true potential of your drilling operations and take your productivity to unprecedented heights.





FAQ:

1. What is button bit?

Button bits, or roller cones, have rotating cones that contain tungsten carbide inserts. Tricone, or three cone bits, are the most common; however, manufacturers continue to make two cone and one cone bits.



2. How do you drill through boulders?

Apply moderate pressure to the drill, and drill for one minute. Don't force the bit into the boulder; let the drill do the work. Remove the bit from the hole, and cool it in the pitcher of water. Lightly spray the boulder with water to remove dust and to cool the rock.



3. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.



More information:

105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 0105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 1105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 2105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 3105mm SD4 Shank DTH Drill Button Bit For Drilling Equipment Accessories 4
