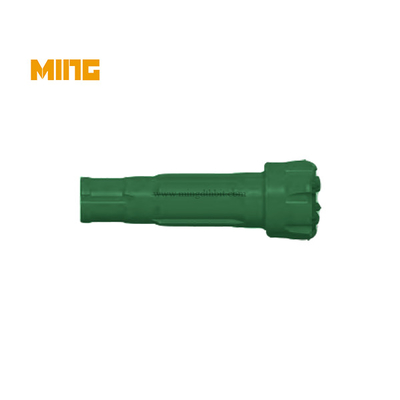

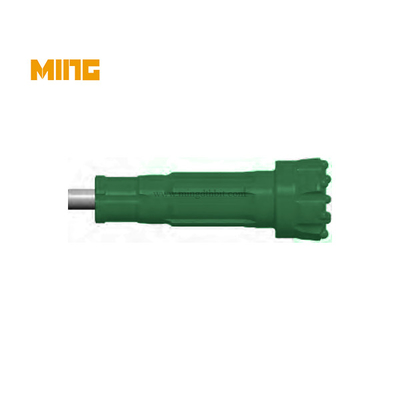

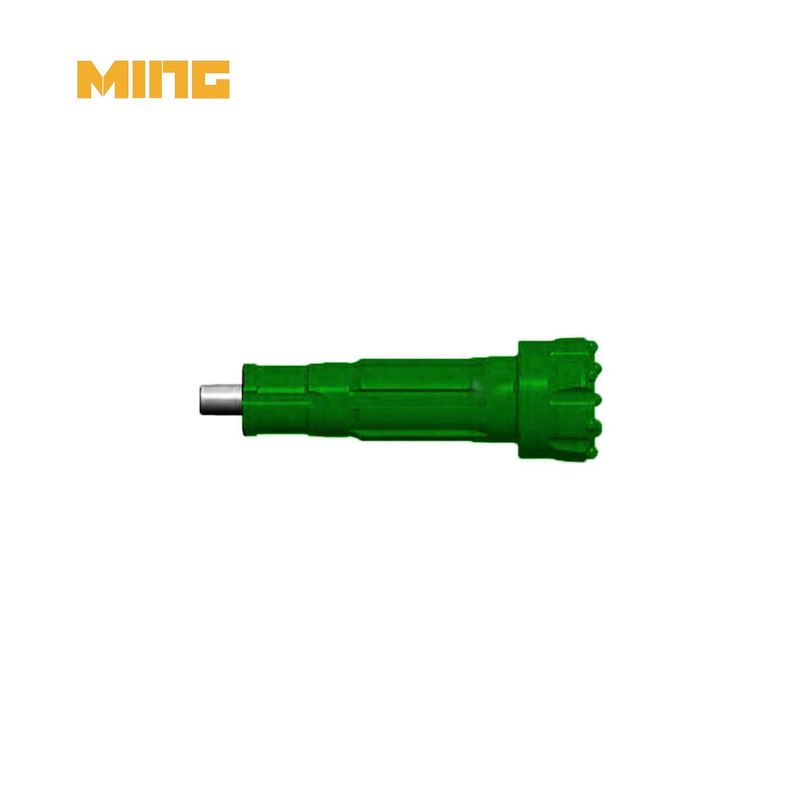

Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling

Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling
Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling

Large Image :  Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling

Product Details:
Place of Origin: CHINA
Brand Name: MING
Certification: ISO9001
Model Number: Bit 152mm-SD5
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 99-9999USD/PC
Packaging Details: WOODEN CASE
Delivery Time: 3-4 WEEKS
Payment Terms: T/T
Supply Ability: 20000PCS/MON

Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling

Description
Application: Rock Drilling Diameter: 115mm-240mm
Item: Dow The Hole Bit Key Words: SD Shank Dth Bit
Processing Type: Forging Machine Type: Drilling Tool
Color: Blue,Golden,Army Green Advantage: High Performance Rock Drill Bit
High Light:

DTH Drill Button Bit

,

SD5 Shank Drill Button Bit

,

Diameter 152mm DTH Drill Bit

Product name: Manufacturer hot sale diameter 152mm SD5 shank DTH Drill Button Bit for water well drilling
Product category: DTH button tools
Matched hammer: Hammer SD5
Diameter: 152mm


KINGDRILLING DTH button bit description:



KINGDRILLING SD Shank DTH Button Bit is meticulously crafted with state-of-the-art materials, ensuring superior strength, durability, and longevity. Its robust design empowers you to tackle even the toughest geological formations with ease, effortlessly breaking barriers and achieving exceptional results.



High Air pressure SD shank DTH bit optimized performance:

MING SD Shank DTH Button Bit combines advanced engineering with unmatched performance. Each button on this remarkable tool is strategically positioned to maximize penetration and impact, reducing drilling time and minimizing wear and tear. Experience unparalleled efficiency as you witness increased rates of penetration, allowing you to complete projects in record time.





4 inch high air pressure DTH bits
MDSD4-105 105 6*Φ14 5*Φ13 2 9.0
MDSD4-110 110 7*Φ14 6*Φ13 2 9.5
MDSD4-115 115 7*Φ14 6*Φ13 2 9.8
MDSD4-120 120 8*Φ14 7*Φ13 2 11.5
MDSD4-127 127 8*Φ14 7*Φ13 2 12.3
5 inch high air pressure DTH bits
MDSD5-135 135 7*Φ16 6*Φ14 2 15.5
MDSD5-140 140 7*Φ18 7*Φ14 2 16.0
MDSD5-146 146 8*Φ18 7*Φ14 2 16.5
MDSD5-152 152 8*Φ18 8*Φ14 2 17.0
MDSD5-165 165 8*Φ18 8*Φ16 2 18.0
6 inch high air pressure DTH bits
MDSD6-152 152 8*Φ18 7*Φ16 2 26.0
MDSD6-165 165 8*Φ18 8*Φ16 2 27.0
MDSD6-171 171 8*Φ18 8*Φ16 2 29.0
MDSD6-190 190 9*Φ18 9*Φ16 3 32.0
MDSD6-203 203 9*Φ18 11*Φ16 3 34.0
8 inch high air pressure DTH bits
MDSD8-203 203 10*Φ18 10*Φ16 2 37.0
MDSD8-216 216 10*Φ18 12*Φ16 2 48.0
MDSD8-241 241 12*Φ18 18*Φ16 2 63.0
MDSD8-254 254 12*Φ18 21*Φ16 3 70.0
MDSD8-305 305 12*Φ18 29*Φ16 4 94.0
10 inch high air pressure DTH bits
MDSD10-254 254 12*Φ18 20*Φ16 3 108.0
MDSD10-305 305 12*Φ18 36*Φ16 4 125.0
MDSD10-311 311 12*Φ18 36*Φ16 4 130.0
MDSD10-318 318 12*Φ18 38*Φ16 4 142.0
MDSD10-330 330 16*Φ18 42*Φ16 4 155.0
12 inch high air pressure DTH bits
MDSD12-305 305 12*Φ18 36*Φ16 4 156.0
MDSD12-311 311 12*Φ18 36*Φ16 4 168.0
MDSD12-330 330 16*Φ18 42*Φ16 4 180.0
MDSD12-356 356 16*Φ19 48*Φ16 4 191.0
MDSD12-381 381 16*Φ19 48*Φ18 4 200.0



Kingdrilling rock drill tools feature:

With the SD Shank DTH Button Bit, the possibilities are limitless. Whether you're drilling for mining, construction, geothermal exploration, or any other industry, this remarkable tool will surpass your expectations. It's time to unlock the true potential of your drilling operations and take your productivity to unprecedented heights.

Don't settle for mediocrity when you can embrace excellence. Choose the SD Shank DTH Button Bit and witness a revolution in drilling performance. Contact us today to experience the future of drilling technology!



FAQ:

1. What is button bit?

Button bits, or roller cones, have rotating cones that contain tungsten carbide inserts. Tricone, or three cone bits, are the most common; however, manufacturers continue to make two cone and one cone bits.



2. How do you drill through boulders?

Apply moderate pressure to the drill, and drill for one minute. Don't force the bit into the boulder; let the drill do the work. Remove the bit from the hole, and cool it in the pitcher of water. Lightly spray the boulder with water to remove dust and to cool the rock.



3. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.



More information:

Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling 0Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling 1Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling 2Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling 3Diameter 152mm SD5 Shank DTH Drill Button Bit For Water Well Drilling 4
