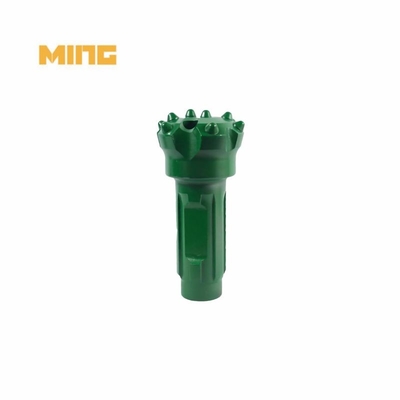

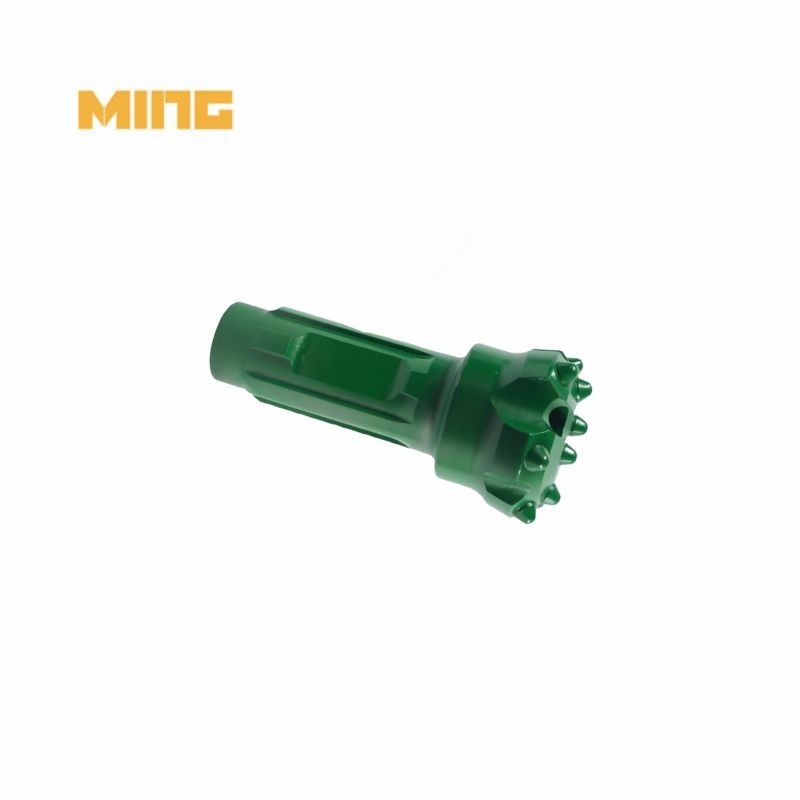

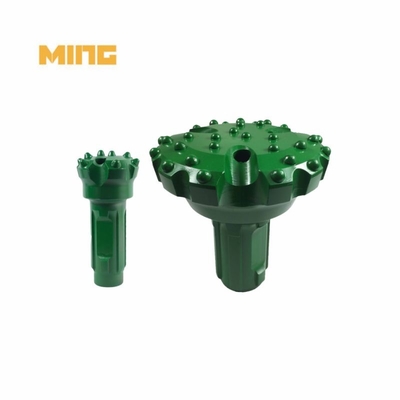

CIR60 60mm Low Air Pressure DTH Hammer Button Bits For Stone Drilling

Product name: CIR60 60mm Low Air Pressure DTH Hammer Button Bits For Stone Drilling
Product category: DTH drill tools
Matched hammer: Hammer CIR60
Diameter: 60mm

KINGDRILLING DTH button bit description:

Down-the-hole hammers are used in conjunction with KINGDRILLING hammer bits to drill holes through a variety of rocks. Drill hammer bits are made with a spline drive to enable bit rotation in the ground when used with DTH hammers. Drill bits can drill a variety of hole diameters since they come in a variety of sizes and types. To give you a precise balance between penetration capability and bit life, our range of Down the Hole (DTH) bits is made using premium materials.

KINGDRILLING Low air pressure DTH button bit shank technical parameters:

Drill Bit	Bit Dia.(mm)	Bit Dia (Inch)	Gauge Buttons	Spline Num.	Shank
	50	1 31/32	3×φ10	4	CIR50
	55	2 5/32	3×φ10	4	CIR50
	60	2 23/64	3×φ12	4	CIR60
	65	2 9/16	4×φ12	4	CIR65
	76	3	5×φ12	4	CIR70
	90	3 35/64	6×φ14	6	CIR90
	100	3 15/16	6×φ14	6	CIR90
	105	4 1/8	6×φ14	6	CIR90
	110	4 21/64	6×φ14	6	CIR90
	120	4 23/32	6×φ14	6	CIR90
	130	5 1/8	7×φ14	6	CIR90
	110	4 21/64	6×φ14	6	CIR110
	120	4 23/32	6×φ14	6	CIR110
	125	4 59/64	7×φ14	6	CIR110
	130	5 1/8	7×φ14	6	CIR110/CIR130
	140	5 33/64	8×φ14	6	CIR110/CIR130
	150	5 29/32	8×φ14	6	CIR110/CIR130
	150	5 29/32	9×φ16	6	CIR150
	165	6 1/2	9×φ16	6	CIR150
	175	6 57/64	9×φ16	6	CIR150
	185	7 9/32	9×φ16	6	CIR150
	200	7 7/8	9×φ16	6	CIR150
	175	6 57/64	9×φ16	6	CIR170
	185	7 9/32	9×φ16	6	CIR170
	200	7 7/8	9×φ16	6	CIR170
	220	8 21/32	12×φ16	6	CIR170
	250	9 27/32	12×φ16	6	CIR170

Order Guide: Shank+ Head diameter+Face design+Button shape

Kingdrilling DTH bit feature:

1. Compatible with every main design of drill bit shank
2. The concave, flat, and convex drill bit faces
3. A range of carbide designs and grades to function in different types of ground
4. A unique method of heat-treating for enhanced hardness and durability
5. Local production to cut lead times

Kingdrilling rock drill tools application:

1. Mining and quarrying drilling

2. Mining exploration drilling

3. Piling and foundation drilling

4. Water well drilling

5. Geothermal drilling

6. Horizontal directional drilling

FAQ:

1. what is a button bit?
Tungsten carbide inserts rotate within the cones of button bits, also known as roller cones. Though producers still produce two cone and one cone bits, tricone, or three cone bits, are the most widely used.
2. How can one drill through large stones?
Drill for a minute while applying moderate pressure. Allow the drill to do the work; do not press the bit into the boulder. After taking the bit out of the hole, let it cool in the water pitcher. To cool the rock and remove dust, lightly mist it with water.
3. What about standard packaging?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

4. How to check the product are the exact one you want?

A: If possible, please attach one reference picture to avoid any misunderstanding or any links from our website for a better understanding.

5. How to choose the suitable head face of the DTH drill bit?

Concave:

Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.

Convex:

Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.

Flat:

Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
