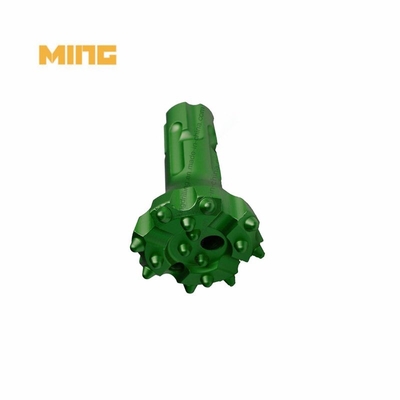

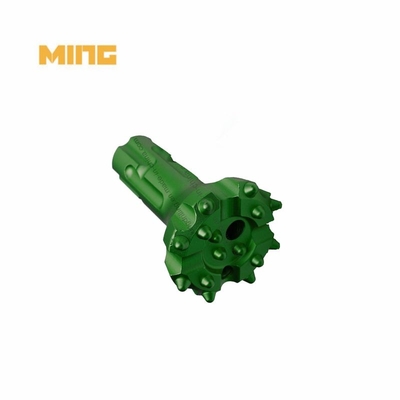

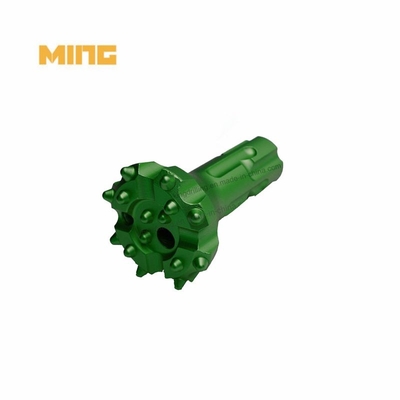

HKNSH110mm DTH Drill Bit With 110PS Russian Spline Shank For Rock Geothermal Drilling

Product name: HKNSH110mm DTH Button Drill Bit With 110PS Russian Spline Shank For Rock Geothermal Drilling
Product category: DTH drill tools
Matched hammer: Hammer russian spline
Diameter: 110mm

KINGDRILLING DTH button bit description:

KINGDRILLING hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a spline drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes. Our variety of Down the Hole (DTH) bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life.

Durability is a significant factor when investing in drilling equipment, and the DTH Drill Bit is built to last. Crafted from high-quality materials, it withstands heavy use over long periods, ensuring a long service life and reducing the need for frequent replacements. This not only saves you money but also keeps your operations running smoothly without interruptions.

The DTH Drill Bit's superior performance sets it apart from other drill bits on the market. Its precision-engineered design guarantees precise and accurate drilling, resulting in consistently high-quality results. With this drill bit, you can achieve the perfect balance of speed and accuracy, ultimately enhancing the overall efficiency of your drilling operations.

KINGDRILLING Russian spline DTH button bit shank technical parameters:

Drill Bit	Bit Dia.(mm)	Bit Dia (Inch)	Gauge Buttons	Spline Num.
	110	4 21/64	8×φ12	Spline
			8×φ13
			8×φ14
	130	5 1/8	8×φ14	Spline

Order Guide: Shank+ Head diameter+Face design+Button shape

Kingdrilling DTH bit advantage:

1. Available with all major drill bit shank designs
2. Three drill bit face designs: concave, flat, convex
3. Multiple carbide designs and grades for operation in a variety of ground conditions
4. Proprietary heat-treatment process for superior hardness and wear resistance
5. Regional manufacturing for lower lead times.

Kingdrilling rock drill tools application:

1. Mining and quarrying drilling

2. Mining exploration drilling

3. Piling and foundation drilling

4. Water well drilling

5. Geothermal drilling

6. Horizontal directional drilling

7. Rock drilling

FAQ:

1. What is button bit?

Button bits, or roller cones, have rotating cones that contain tungsten carbide inserts. Tricone, or three cone bits, are the most common; however, manufacturers continue to make two cone and one cone bits.

2. How do you drill through boulders?

Apply moderate pressure to the drill, and drill for one minute. Don't force the bit into the boulder; let the drill do the work. Remove the bit from the hole, and cool it in the pitcher of water. Lightly spray the boulder with water to remove dust and to cool the rock.

3. How about the common packing?

A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.

4. Can I expect a quality products?
A: Yes. mature production technology ensuring the quality satisfy international request.

5. How to choose the suitable head face of the DTH drill bit?

a. Concave:

Suitable for all kinds of formation, especially for deep well drilling, perpendicularity of the hole is wonderful.

b. Convex:

Suitable for the formation of moderate hardness stratum, drilling efficiency is good, borehole perpendicularity is moderate.

C. Flat:

Suitable for special hard formation stratum, especially for fracture, crack spacing and complex formation drilling effect is very good, has the good perpendicularity of the borehole.
