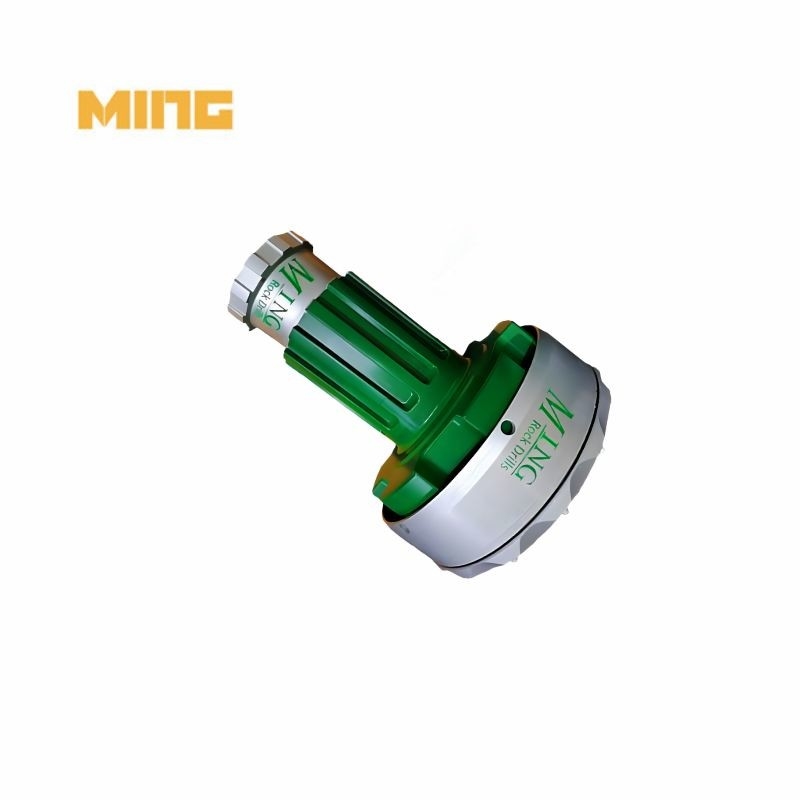

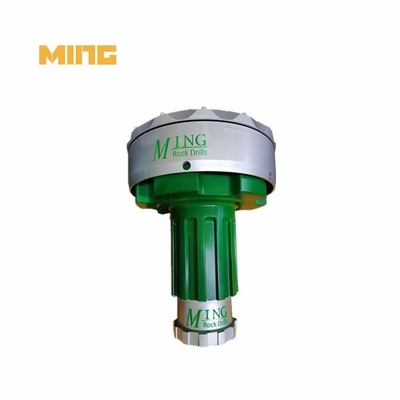

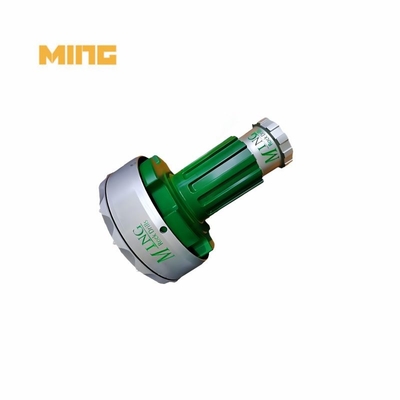

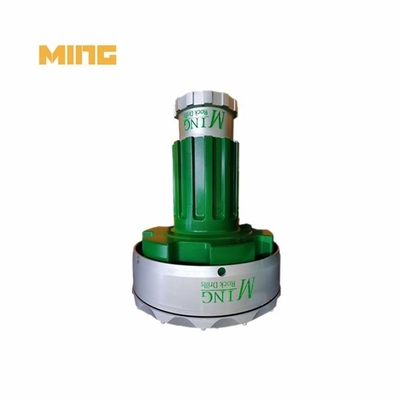

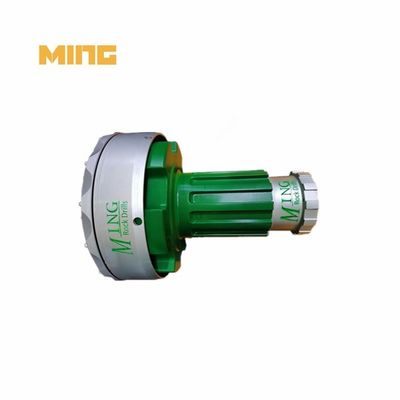

89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering

89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering
89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering

Large Image :  89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering

Product Details:
Place of Origin: CHINA
Brand Name: MING
Certification: ISO9001
Model Number: MRING-E-89mm
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: 999-99999USD/PC
Packaging Details: WOODEN CASE
Delivery Time: 3-5WEEKS
Payment Terms: T/T, D/P, Western Union
Supply Ability: 2000PCS/MONTH

89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering

Description
Material: High Manganese Steel,Carbide Use: Quarry Or Mining Or Well Drilling
Type: Symmetrix Casing,odex Drilling System Machine Type: Drilling Tool
Processing Type: Forging Product Name: Concentric Casing System
Color: Gold,Request,Yellow,Red Application: Construction
Usage: Mining&Construction&Water Well Drilling Advantage: High Performance,High-efficiency
Model Type: Cop,Halco,DHD,Mission,NUMA Item: Overburden Drilling Casing System
Button Shape: Spherical/Ballistic/Parabolic/Sharp/Flat Advantages: High Quality And Factory Prices
High Light: 89mm Concentric Casing Drilling System, Mring Overburden Casing Drilling System

Product name: 89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering

Product category: Overburden casing ring bit



Recycle ring bit casing drilling system working principle:

1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit’s upper shoulder engages the shoulder of the casing shoe.

2. Hammer’s percussive energy is transferred through the pilot and ring bits, crushing rock . Part of impact energy advances casing.

3. On completion of drilling and casing , the drill string with pilot bit is retrieved by a slight reverse rotation to unlock the bayonet coupling . The ring bit stays in the hole , and can be recovered only if the casing is retrieved

4. Drilling continues to the desired depth in the bedrock using a conventional drilling.



Accelerate your drilling process with the incredible driving speed of the MRING Overburden Casing Drilling System Bits. The advanced technology incorporated within these bits allows for rapid drilling, significantly reducing the overall drilling time. Say goodbye to time-consuming drilling practices and embrace the efficiency and productivity that these bits offer.



Model External Dia.(mm) Casing Dia.(OD*ID) Spline
MK-MRING90 125 114*102 MACH33, DHD3.5
MK-MRING115 155 139*127 DHD340, SD4, QL4
MK-MRING140 188 168*153 DHD350, SD5, QL5
MK-MRING165 215 194*181 DHD360, SD6, QL6
MK-MRING190 238 219*206 DHD360, SD6, QL6
MK-MRING215 276 254*240 DHD380, SD8, QL8
MK-MRING235 293 273*254 DHD380, SD8, QL8
MK-MRING240 293 273*260 DHD380, SD8, QL8
MK-MRING280 345 323*303 SD10
MK-MRING315 375 355*335 SD10
MK-MRING365 432 406*387 N120, N125, SD12
MK-MRING460 530 508*483 N125, N180
MK-MRING510 580 559*533 N180
MK-MRING560 635 610*584 N180
MK-MRING610 695 660*632 N240
MK-MRING660 735 711*685 N240
MK-MRING710 785 762*736 N240
MK-MRING745 838 813*780 N240
MK-MRING810 886 864*838 N240, N240S
MK-MRING860 935 914*884 N240S
MK-MRING910 980 965*935 N240S
MK-MRING960 1038 1016*986 N240S, M330
MK-MRING1010 1090 1067*1041 M330



Order guide: Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style



Kingdrilling Service

1. Pre-sale service:

If demand, assist clients to get rich and generous returns on their investments.Select DTH tools model.Design and manufacture down the hole products according to client's requirement.

2. Services during the sale:

Assist clients to draft solving plans.

Pre-check and accept Rock drill products ahead of delivery .

3. After-sale services:

Our sales team will response for your question within 24 hours (Holidays Excluded)

Technical Support will be available in any time.

Free replacement can be provided once the failure confirmed caused by our product quality.



FAQ:

1. What is hole hammer?

Pneumatic down-the-hole (DTH) hammer is a pneumatic drilling tool using compressed air as a power source. It is suitable for drilling in pebble, gravel, and hard rock strata. It is often used in building pile foundation construction, bridge, mining, geological exploration, hydrological wells, and other fields.



2. What is overburden fill?

Overburden Soil is an all-purpose, raw fill material that, depending on where it comes from, may contain a wide range of materials. In general, overburden soil lacks the organic matter and nutrients present in topsoil and can comprise sand, pebbles, clay, and stones.



3. How far can you directional bore?

What are the crossing's minimum and maximum lengths? The geotechnical constraints unique to a project dictate the maximum lengths and hole sizes; however, the 3,000 m effective outer range for heavy rig horizontal directional drilling.



MORE INFORMATION:

89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 089mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 1

89mm Mring Overburden Concentric Casing Drilling System with Ring Bit For Engineering 2
