Product Details:
|
| Material: | Carbide,Carbon Steel | Machine Type: | Drilling Equipment |
|---|---|---|---|
| Processing Type: | Forging | Use: | Ore Mining,Rock Drilling |
| Type: | Concentric Casing Drilling System | Application: | Water Well Drilling And Rock Drilling |
| Certification: | ISO9001 | Color: | Golden,Red,blue,glod(as You Need) |
| Product Name: | Concentric Casing Drilling Bits | Advantage: | High Performance,High-efficiency,Widely Used Hard Rocks And Have Good Penetration |
| Usage: | Hole Drilling,Borehole Drilling | Name: | Concentric Overburden Drilling System |
| Packing: | Wooden Case,Wooden Box | Formation: | Medium,soft |
| Quality: | High Level,Guaranteed | Item: | Concentric Casing Drilling System |
| High Light: | Down The Hole Casing Drilling Bit, Overburden Casing Drilling Bit, Symmetric Casing Drilling Bits | ||

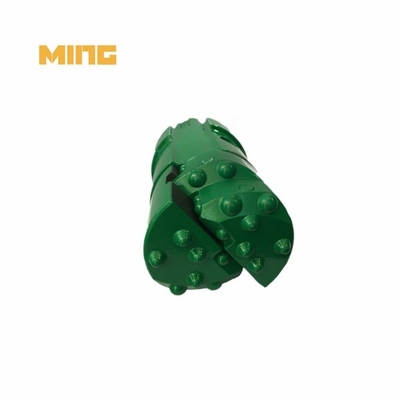

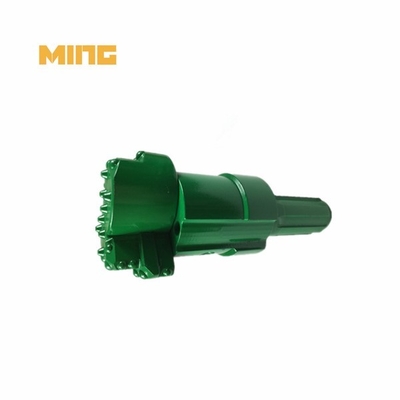

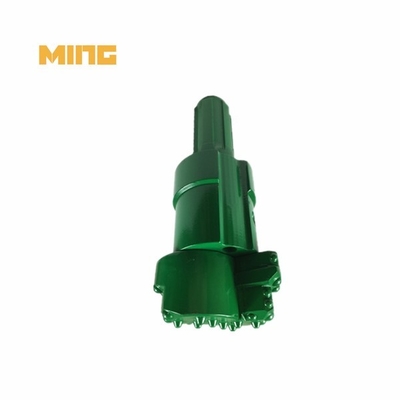

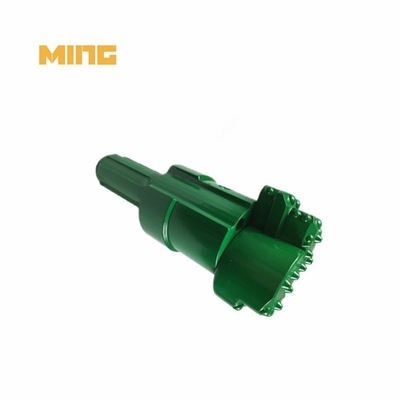

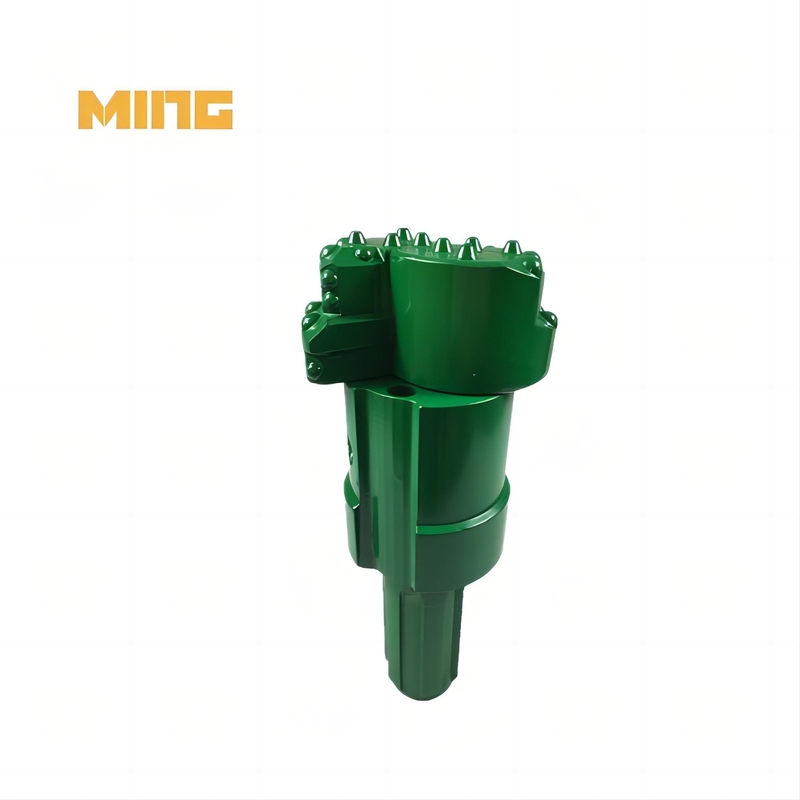

Product name: 125mm MRE90 Overburden Symmetric Casing Drilling System Bit For Water Well Drilling
Matched casing pipe OD: 90mm
Matched hammer: Hammer DHD3.5
The overburden casing drilling systems are designed for economic cost of drilling in simultaneous casing advancement.
MRE Overburden Casing Drilling System Bit is a cutting-edge tool designed for structural optimization and delivering exceptional performance with unparalleled efficiency. With a focus on high drilling speed, stability, and reliability, it is a game-changer in the industry.
Benefit from its longer operating life and experience the difference it makes in your drilling projects. The MRE Bit is crafted with precision using top-quality materials, ensuring its excellent anti-wear properties that can withstand even the toughest drilling tasks.
Experience efficiency like never before with the MRE Bit's structural optimization, which allows for seamless drilling operations and ensures maximum productivity. Say goodbye to frequent tool replacements and subpar results, as MRE bit guarantees prolonged and consistent performance.
Product components:
Pilot bit+2PCS rotor wings+casing shoe
Production details:
| Model | Hole dia (mm) | Weight (KG) | Closed dia.(mm) | Pilot dia.(mm) | Length (mm) | Case dia(OD*ID) | Spline |
| MK-MRE90 | 125 | 16 | 90 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MRE115 | 155 | 30 | 115 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MRE140 | 188 | 52 | 140 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MRE165 | 215 | 95 | 166 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MRE190 | 238 | 108 | 190 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MRE215 | 276 | 140 | 215 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MRE235 | 293 | 160 | 236 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MRE240 | 293 | 168 | 241 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Working principle:
At clockwise condition, reamer bit expanded to bring the casing tube into hole. After finished, reamer bit closed anticlockwise and then can be lift up by the drilling machines. This casing drilling bit is especially suitable for diameter 114-273mm.
Application Range:
It is suitable for drilling water wells, geothermal wells, short micro piles ,medium mini-type grouting hole of building , dam and harbor project .
RFQ:
What is overburden fill?
Overburden Soil is a general, unprocessed, fill material that can contain a variety of different materials, depending on where it is sourced. Overburden Soil can contain sand, rocks, clay and stones, and will typically lack the organic material and nutrients found in topsoil.
What is odex drilling?
ODEX is an adaptation of the air-operated down-the-hole hammer. It uses a swing-out eccentric bit to ream the bottom of the casing. Cuttings blow up through the drive sub and casing annulus to a swivel conducting them to a sample collector or onto the ground. Rapid removal of cuttings.
