Product Details:
|
| Material: | Carbon Steel,Carbide | Type: | Symmetrix Casing Drilling System |
|---|---|---|---|
| Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling | Machine Type: | Drilling Tool |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System, Overburden Casing Drilling System |
| Color: | Gold,Request,Yellow,Red | Application: | Quarry,construction,water Well Drilling,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | ODEX System (eccentric Overburden System) |
| Item: | Overburden Casing Drilling System | Hammer Type: | Overburden Casing Drilling System |
| Advantages: | High Strength,High Performance,High Quality And Factory Prices | HS: | 82071990 |
| High Light: | MSK Symmetric Casing Drilling System Bit, 238mm Overburden Casing Drilling System | ||

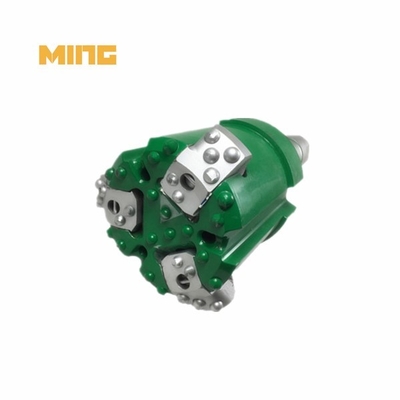

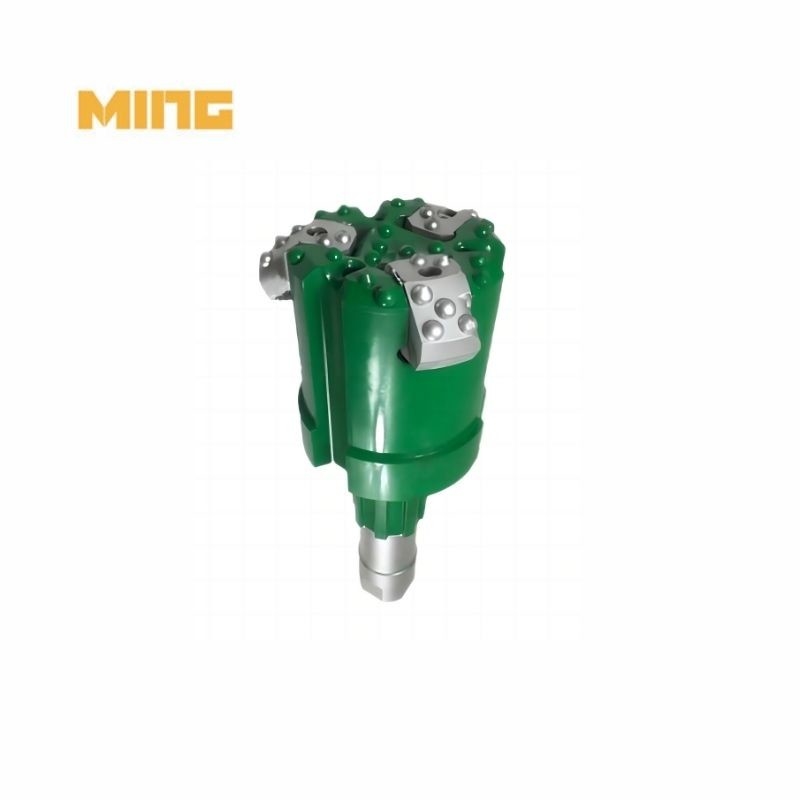

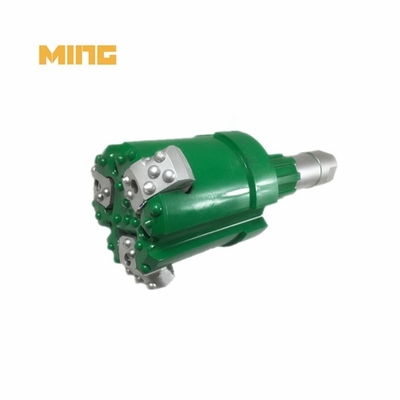

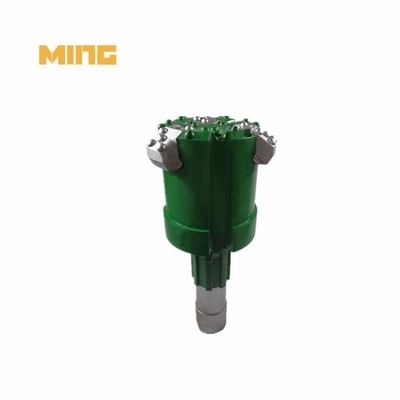

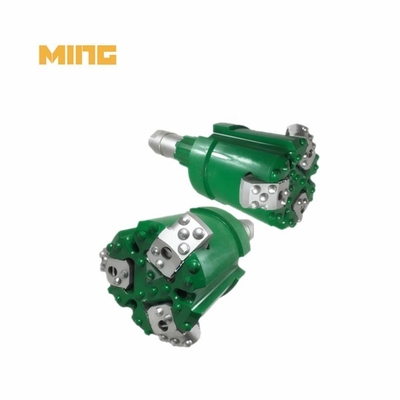

Product name: 238mm MSX190 Overburden Symmetric Under Reaming Casing Drilling System Bit For Foundation
Casing pipe OD: 190mm
We are able to meet the drilling needs of our Mining and Quarrying customers, while ensuring maximum efficiency and productivity.
Mining Exploration Drilling. The measures of success in exploration drilling are sample quality and rate of productivity.
Equipped with structural optimization, MSX Overburden Casing Drilling System Bit is designed to provide maximum efficiency, saving you time and energy. With its high drilling speed and consistent performance, you can effortlessly drill a variety of surfaces, from wood to metal, without compromising quality or accuracy.
In your drilling projects, benefit from its longer service life and feel the difference it makes to your drilling work. The MSX Bit is precision manufactured and uses high-quality materials to ensure its excellent anti-wear properties and can withstand the toughest drilling tasks.
What sets our MSX Bits apart from other products is their impressive service life. We designed it to withstand the toughest drilling tasks, so you'll rely on this tool time and time again. Say goodbye to frequent replacements and say goodbye to long-lasting performance.
Never compromise on quality and efficiency again. MSX Overburden Casing Drilling System Bit is the perfect tool to effortlessly tackle various drilling tasks to professional construction endeavors. Choose the MSX Bit for structural optimization, ensuring a high drilling speed with stable and reliable performance. Experience its exceptional durability and anti-wear properties that guarantee a longer operating life. Get the most out of every drilling project with our professional-grade tool.
Product components:
1. Pilot bit+2PCS Slide blocks+casing shoe
2. Pilot bit+3PCS Slide blocks+casing shoe
3. Pilot bit+4PCS Slide blocks+casing shoe
Production details:
| Model | Hole dia(mm) | Weight (KG) | Pilot dia.(mm) | length (mm) | Case dia.(OD*ID) | Spline |
| MK-MSX90 | 125 | 16 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MSX115 | 155 | 30 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MSX140 | 188 | 52 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MSX165 | 215 | 95 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MSX190 | 238 | 108 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MSX215 | 276 | 140 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MSX235 | 293 | 160 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MSX240 | 293 | 168 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style.
Advantage:
1. Traight Holes and Fast Penetration Rate
2. Less Torque in all ground conditions
FAQ:
1. How to order products?
A: Please send an inquiry with a detailed item description or model number.
2. Can I expect quality products?
A. Yes. The mature production process ensures that the quality meets the international requirements
3. How to check if the product is exactly what you want?
A: If possible, please include a reference picture to avoid any misunderstanding or any link from our website for a better understanding.
4. How to ensure quality?
A: More than 40 years of engineers to ensure quality, 100% inspection.
5. What is the general delivery time?
A: DTH drill takes 15 working days.
Drill hammer 20-25 working days
It takes 3-5 business days to stock the goods.
6. Payment method
A: T/T (Telegraphic Transfer) or Western Union.
