Product Details:
|
| Material: | High Manganese Steel | Use: | Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing Drilling System, Overburden Casing DrillingSystem | Machine Type: | Drilling Equipment |
| Processing Type: | Forging,Machining Process | Product Name: | Concentric Casing System, Overburden Drilling System |
| Color: | Gold,Required,Yellow,Red | Application: | Construction,mining,mining Or Welling Drilling |
| Usage: | Mining&Construction&Water Well Drilling | Advantage: | High Performance,High-efficiency |
| Model Type: | Cop,Halco,DHD,Mission,NUMA | Name: | Concentric Casing Drilling System |
| Item: | Overburden Casing Drilling System | Hammer Type: | Overburden Casing Drilling System |
| Advantages: | High Performance | HS: | 82071990 |
| High Light: | MSX Overburden Casing Drilling System, Concentric Casing Drilling System, 215mm Symmetrix Casing Drilling System | ||

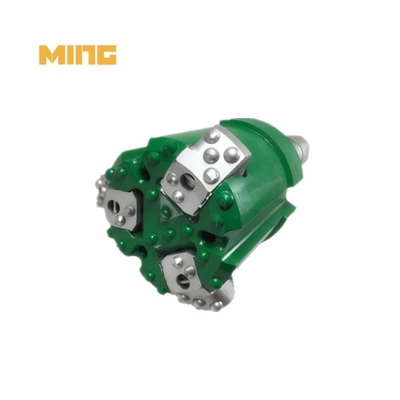

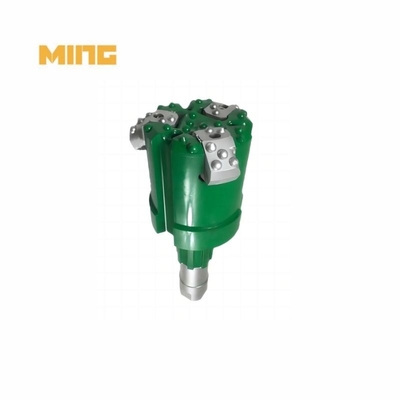

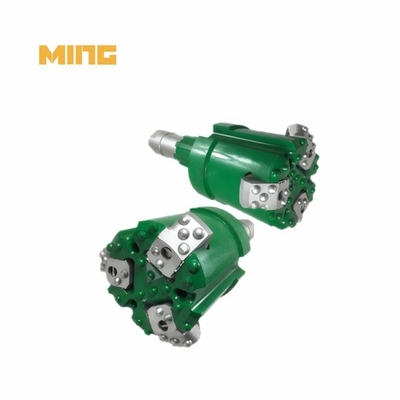

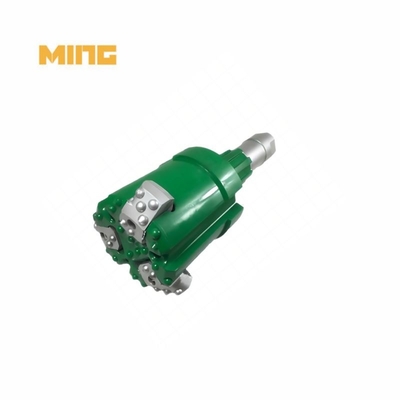

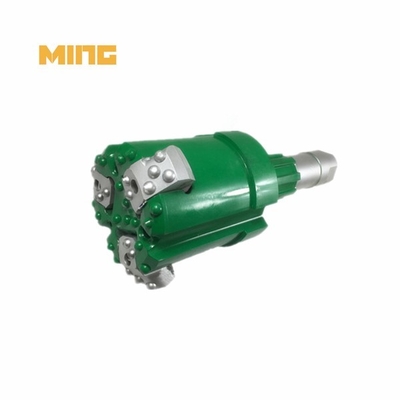

Product name: 215mm MSX165 Overburden Symmetric Casing Drilling System Bit With Slide Block For Construction
Casing pipe OD: 165mm
MSK Overburcen Casing Drilling System bit - a high-quality tool designed to exceed your drilling expectations. Our product stands out from the competition due to its exceptional features and outstanding performance.
Crafted using premium hardened procedures, the MSK bit ensures durability and a long lifespan. Our commitment to sourcing only the finest raw materials guarantees a reliable and efficient drilling experience. With a full production chain in place, we guarantee stable and prompt production lead-time, ensuring that you receive your order in a timely manner.
Product components:
1. Pilot bit+2PCS Slide blocks+casing shoe
2. Pilot bit+3PCS Slide blocks+casing shoe
3. Pilot bit+4PCS Slide blocks+casing shoe
Production details:
| Model | Hole dia (mm) | Weight (KG) | Pilot dia.(mm) | length (mm) | Case dia.(OD*ID) | Spline |
| MK-MSX90 | 125 | 16 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MSX115 | 155 | 30 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MSX140 | 188 | 52 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MSX165 | 215 | 95 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MSX190 | 238 | 108 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MSX215 | 276 | 140 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MSX235 | 293 | 160 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MSX240 | 293 | 168 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD + Casing Tube ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style.
Application:
It is suitable for drilling water wells, geothermal wells, Micro piles, medium mini-type grouting hole of building, dam and harbor project.
RFQ:
1. What is DTH method of drilling?
Down-the-hole drilling (DTH) essentially involves a drilling hammer at the bottom of a drill string. It relies on three elements for drilling holes: bit loading (weight), rotation and air. These active elements combine to be efficient at crushing rock.
2. How does a casing advancer Work?
The Casing Advancer has been designed to allow drilling and casing to be carried out at the same time as one integral operation. This feature eliminates the need to drill the large diameter hole with a Rock Bit, pull the drill rod string and Rock Bit from the hole and then ream the casing back into the hole.
3. How much PSI do I need for air tools?
between 70 and 90 PSI
Most air tools require between 70 and 90 PSI. Any light-to-medium-duty air compressor can easily handle 90 PSI, but you always want the compressor to supply more flow than needed. Pro Tip: Always respect a PSI rating. If you don't supply enough air volume, the tool won't operate correctly.
4. How to make sure the quality?
More than 40 Years engineer to make sure the quality, 100% inspection.
