Product Details:
|
| Material: | High Manganese Steel,Carbide | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Odex Drilling System,Odex Overburden System | Machine Type: | Drilling Tool |
| Product Name: | Eccentric Drill Bits, Overburden Casing Drilling System | Color: | Gold,Request,Yellow,Red |
| Application: | Construction, Water Well Drilling | Usage: | Mining&Construction&Water Well DrillingHole Drilling,Mining&Construction&Water Well Drilling |
| Advantage: | High Performance,Widely Used Hard Rocks And Have Good Penetration | Model Type: | Cop,Halco,DHD,Mission,NUMA |
| Name: | ODEX System (eccentric Overburden System) | Item: | Drilling Hammer Bit Eccentric Overburden Systems,Overburden Drilling Casing System |
| Hammer Type: | Overburden Drilling System | Standard: | ISO 9000 |
| Advantages: | High Strength,High Quality And Factory Prices | ||
| High Light: | MK3E Casing Drilling System, Overburden Casing Drilling System, Eccentric Casing Drilling Bits | ||

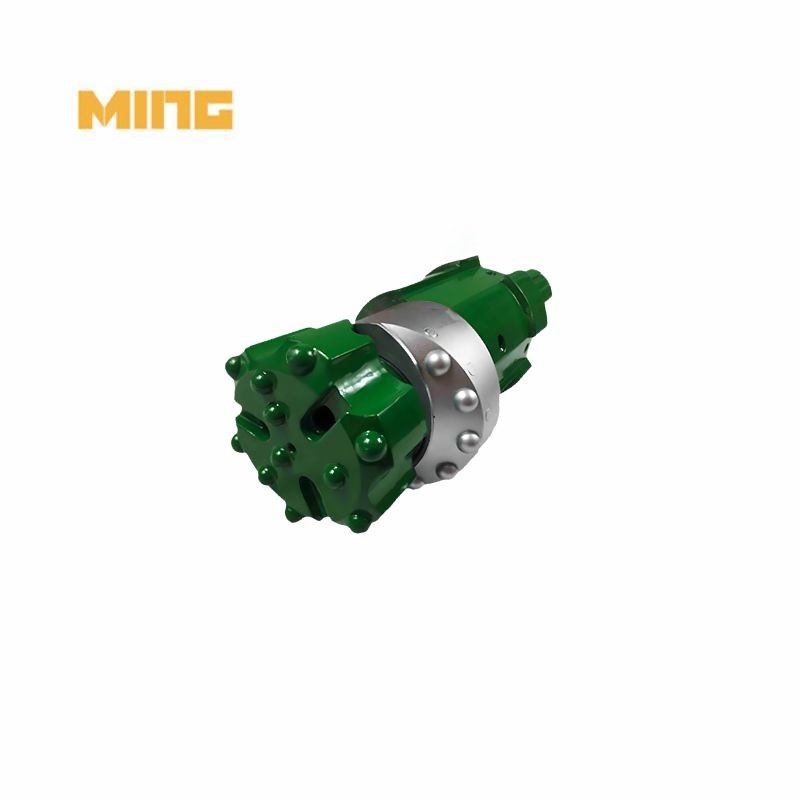

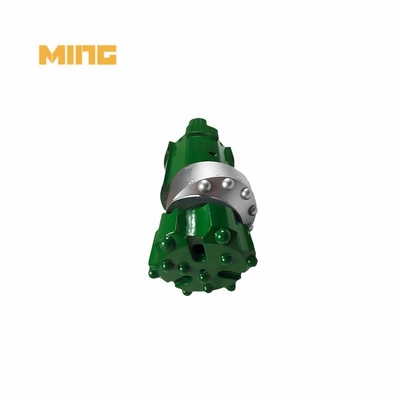

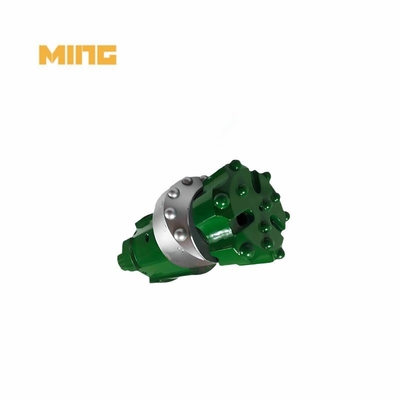

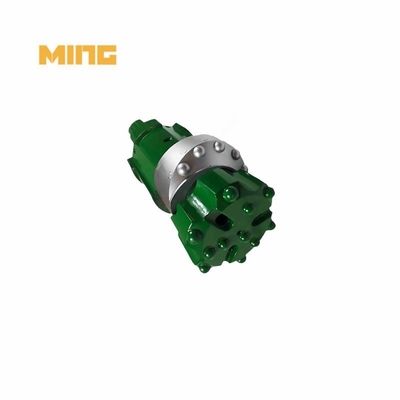

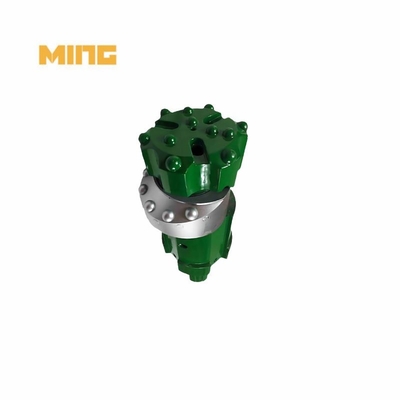

Product name: 136mm MK3E127 Overburden Casing Drilling System Bit For Piling,Quarry,Construction,Mining
Casing pipe OD: 127mm
Optimal drilling performance in unstable ground conditions. The eccentric bit can be easily and quickly removed for replacement or refurbishment.
Our high-performance MK3E Bit, designed for exceptional durability and efficiency. Crafted with the finest quality raw materials, our drill bit undergoes premium hardened procedures, ensuring a long lifespan in the toughest drilling conditions. Trust the MK3E Bit to deliver impeccable performance, unmatched durability, and outstanding value. Experience the difference and elevate your drilling endeavors to new heights.
Production details:
| Technical Parameters | |||
| Model | Reaming Diameter(mm) | Casing Diameter(mm) | Equipped Hammer |
| MK3E108 | 118 | 93-99 | 90 |
| MK3E127 | 136 | 115-117 | 110 |
| MK3E146 | 152 | 130-134 | 110/340 |
| MK3E168 | 185 | 148-156 | 110/340 |
| MK3E178 | 195 | 158-166 | 150/340 |
| MK3E183 | 196 | 168-176 | 350/360 |
| MK3E193 | 206 | 176-182 | 360 |
| MK3E219 | 236 | 199-207 | 360 |
Product components:
Pilot bit + middle reamer bit + casing shoe
Application:
It can be used in foundation construction, Piling, Water Well and Geothermal, Tunneling and Horizontal drilling. Specially the rock formation is not stable with fractures.
Working principle:
1. When drilling starts , the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly
2. When the required depth is reached , rotation is reversed carefully, whereupon the reamer swings in , allowing the drill bit assembly to be pulled up through the casing.
3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
FAQ:
1. Where does overburden go during a mining operation?
Overburden is used for reprocessing, contouring land, and as a building and road aggregate. Mine tailings are recycled to make clay, tiles, glass, and concrete. Mine water is processed and then used to suppress dust and particulates, as well as for agricultural and industrial purposes and as a coolant.
2. What is groundwater drilling?
Basically, a well is a hole drilled into the ground to access water contained in an aquifer. A pipe and a pump are used to pull water out of the ground, and a screen filters out unwanted particles that could clog the pipe.
3.Why is overburden important?
Because of the higher temperatures at deeper depths, the overburden rock in a petroleum system sits on top of the source rock and aids in its thermal maturation. The heating rat is influenced by the burial rate, which is determined by the age and thickness of the overlying rock.
Products manufacturing:
