Product Details:
|
| Material: | Steel, Carbide Alloy | Use: | Mining & Water Well Drilling,Quarry Or Mining Or Well Drilling |
|---|---|---|---|
| Type: | Symmetrix Casing,Odex Overburden System | Machine Type: | Down The Hole Tools |
| Product Name: | Symmetric Drill Bits, Concentric Casing Drilling System | Color: | Gold,Required,Yellow,Red |
| Application: | Construction,mining Or Welling Drilling | Usage: | Hole Drilling,Mining&Construction&Water Well Drilling |
| Advantage: | High Performance,High-efficiency | Name: | MSX Overburden Casing Drilling System |
| Item: | Overburden Casing Drilling System | Standard: | ISO-9001 |
| Advantages: | High Strength,High Performance | ||
| High Light: | MSX Overburden Casing Drilling System, 188mm Concentric Casing Drilling System | ||

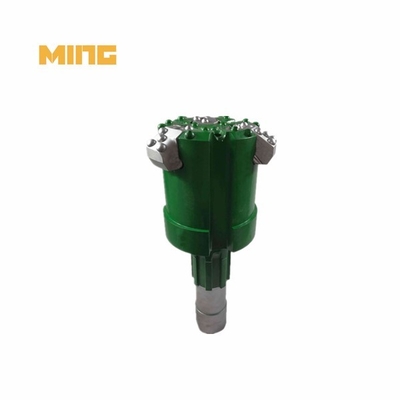

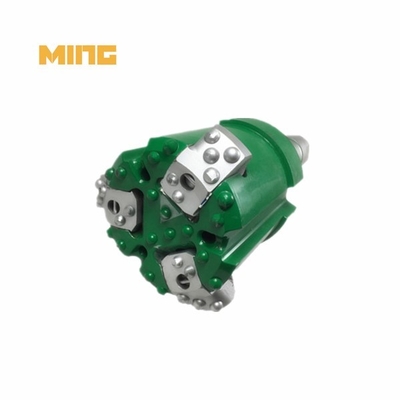

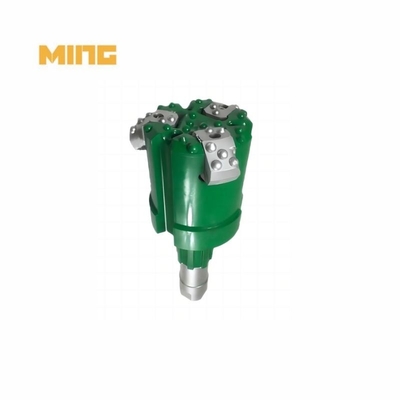

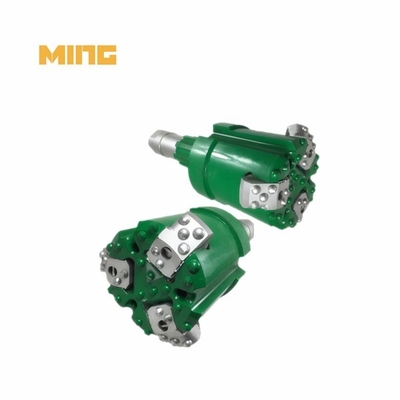

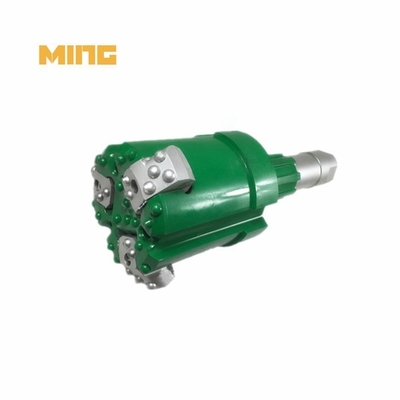

Product Name: 188mm MSX140 Overburden Casing Drilling System Bit For Horizontal Directional Under Ground Drilling
Spline: DHD380,SD8,QL8
Case dia.(OD*ID): 273*260
Product details:
Rock drill tools factory KINGDRILLING professionally produce Concentric drilling systems such as slide block drilling bit by down the hole hammer which are designed to drill and case a hole simultaneously through unstable ground conditions. Wing Block casing drilling system is consists of pilot bit and slider blocks.
Before drilling, the system press down, and the slider bit open to carry casing tube into the hole to protect wall. After finished, the wings will be closed trough lifting system. This system is efficient for casing tube from 114-273mm in diameter.
The noteworthy aspect of this product is the structural optimization that has been incorporated into its design. By reinforcing the structural strength, this MSX overburden casing drilling system bit provides a hassle-free drilling experience. Its user-friendly nature allows for smooth and effortless operation, enabling even novice drillers to achieve remarkable results.
Technical date:
| Model | Hole dia (mm) | Weight(KG) | Closed dia. (mm) | Pilot dia. (mm) | Total length (mm) | Case dia. (OD*ID) | Spline |
| MK-MSX90 | 125 | 16 | 90 | 100 | 360 | 114*102 | MACH33,DHD3.5 |
| MK-MSX115 | 155 | 30 | 115 | 125 | 510 | 139*127 | DHD340,SD4.QL4 |
| MK-MSX140 | 188 | 52 | 140 | 151 | 570 | 168*153 | DHD350,SD5,QL5 |
| MK-MSX165 | 215 | 95 | 166 | 178 | 690 | 194*181 | DHD360,SD6,QL6 |
| MK-MSX190 | 238 | 108 | 190 | 203 | 690 | 219*206 | DHD360,SD6,QL6 |
| MK-MSX215 | 276 | 140 | 215 | 236 | 720 | 254*240 | DHD380,SD8,QL8 |
| MK-MSX235 | 293 | 160 | 236 | 251 | 730 | 273*254 | DHD380,SD8,QL8 |
| MK-MSX240 | 293 | 168 | 241 | 256 | 730 | 273*260 | DHD380,SD8,QL8 |
How to order:
Casing Tube OD & ID + Reamer Bit Diameter + Minimal Casing Shoe ID + Hammer Shank Style
Appilication:
KINGDRILLING provides rock drilling tools including civil engineering projects, tunneling, surface drilling, anchoring, foundation projects, and piling. This is true for all drilling methods such as top hammer, DTH and rotary drilling.
FAQ:
1. How about the common packing?
A: If there is no special packing demand, we will take it as our normal packing. First in small carton, and then put in the bigger carton together to make sure goods completed.
2. How to check the product are the exact one you want?
A: If possible, please attach one reference picture to avoid any misunderstanding or any links from ourwebsite for a better understanding.
3. How to control quality?
A: We have our own experienced QC team,there will be strict inspection and testing for each order before shipping out.
4. Shipping way:
A: Sample order: we suggest Courier express delivery such as DHL/UPS/TNT/FEDEX or by air
Bulk order: by air or by sea we suggest.
5. Competitive price:
A: KINGDRILLING factory can supply you the lowest price due to direct sale to customers without distributor!
6. What is the materials?
Steel is TIMKEN, Alloy is from T6 from Element Six.
Package and Delivery:
Packed by Carton or Wooden cases.
